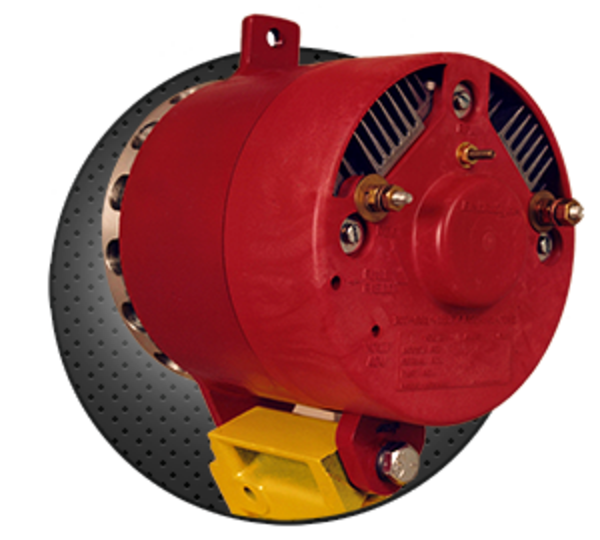

Electrodyne GE100-32 (101024-013G)
Electrodyne 32VDC GE100-32 (101024-013G)
7.3" DIA., Air Cooled, Belt Driven Alternator
SPECIFICATIONS
| Net Rated Amperes | 100 Amperes |
| RPM @ Rated Amperes | 4500 |
| Preset Voltage Range | 37.5 - 38.0 Volts DC |
| Full Load Voltage | 37 (with 37.5 V. DC Preset Voltage) |
| Full Load Field Coil Amps | 4.5 |
| Grounding Options | ISOL., NEG., POS., Internal |
| Rotation | Bidirectional |
| Shaft Diam. (Pulley I.D.) | 7/8" |
| RPM Terminal | Standard |
| Voltage Regulator, STD. | Integral, Adjustable, Self-Exciting |
| Voltage Regulator, Optional | Remote, Self or Ignition Excited |
| Wiring, STD | 2-Wire |
| Wiring, Optional | 1-Wire (Internal Ground) |
| Diode Construction | Individually Replaceable |
| Diode Capacity, Amperes | 225 |
Literature:
Brushless Alternators Repair and Troubleshooting
MurCal is an Authorized Distributor of Electrodyne products.
MurCal provides experienced application and product support, before and after the sale.
