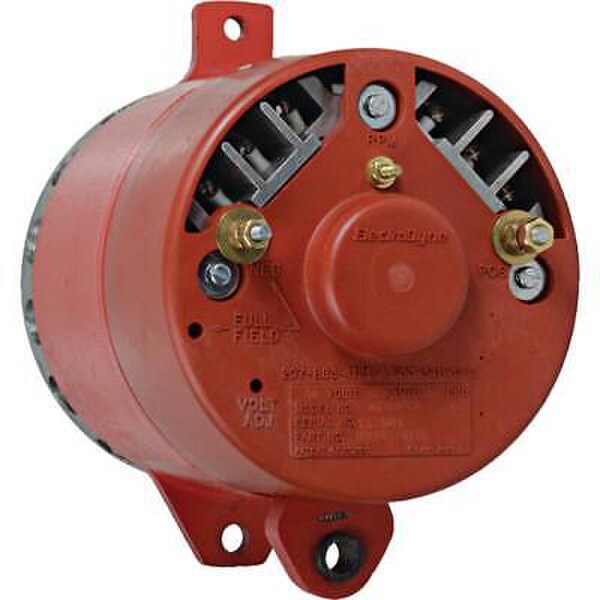

Electrodyne GE100-48 (102543-0048)

Electrodyne 48VDC GE100-48 (102543-0048)

VOLT: 48, AMPS: 100,


J180 HINGE LENGTH: 215.9,


MOUNT HOLE ID 1: 1/2-13,


MOUNT HOLE 1 TYPE: Threaded,


MOUNT HOLE 2 TYPE: Unthreaded,


MOUNT HOLE ID 3: 13mm,


MOUNT HOLE 3 TYPE: Unthreaded,


MOUNTING EAR THICKNESS: 0.354",


MOUNTING EAR THICKNESS: 9mm,


MOUNTING EAR 2 THICKNESS: 0.358",


MOUNTING EAR 2 THICKNESS: 9.100mm,


MOUNTING EAR 3 THICKNESS: 0.748",


MOUNTING EAR 3 THICKNESS: 19mm,


FAN LOCATION: External,


REGULATOR LOCATION: Internal,


TERMINAL ID 2: B+,


TERMINAL 2 SIZE: 5/16-18,


TERMINAL ID 3: B-,


TERMINAL 3 SIZE: 1/4-20,


TERMINAL ID 4: AC,


TERMINAL 4 SIZE: 10-32,


POLARITY: Insulated,


SHAFT PULLEY OD: 0.874",


SHAFT PULLEY OD: 22.200mm, SHAFT: 5/8,




Literature:

Brushless Alternators Repair and Troubleshooting

MurCal is an Authorized Distributor of Electrodyne products.


MurCal provides experienced application and product support, before and after the sale.
