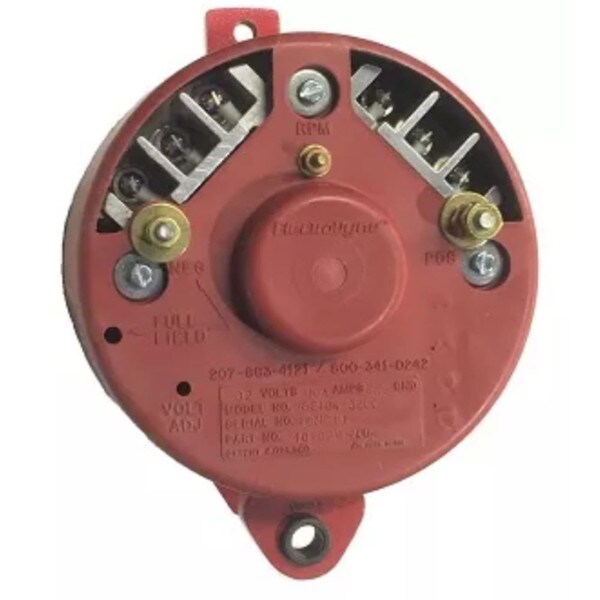

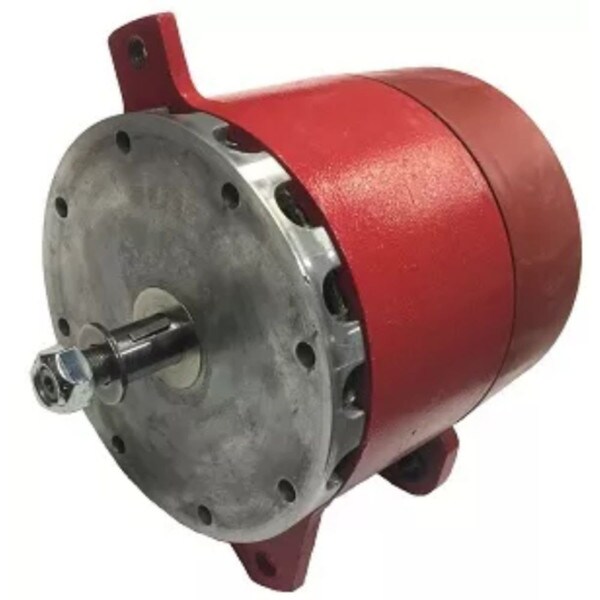

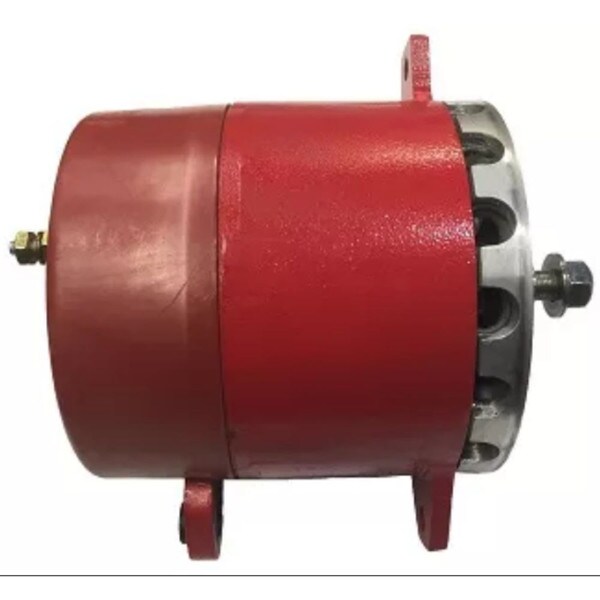

Electrodyne GE104-32 (101024-104)

Electrodyne 32VDC GE104-32 100AMP, HINGE MOUNT ALTERNATOR (101024-104)




Internal Adjustable, Self-Exciting Regulator. Can also be modified for Ignition Excite or set up to operate with an External Regulator.

Regulator Preset Voltage Range – 37.5 – 38.0 volts DC.

Output – 100amps at 3550 RPM (Rotor speed).

Isolated Ground is standard however can also be ordered as Negative, Positive, or Internal Ground.

Standard 2-wire or can be modified to 1-wire with Internal Ground.

Bi-directional Rotation.

7.3″ Diameter with 4.0″ Hinge Mount.

7/8″ Shaft Diameter.






Literature:

Brushless Alternators Repair and Troubleshooting

MurCal is an Authorized Distributor of Electrodyne products.


MurCal provides experienced application and product support, before and after the sale.
