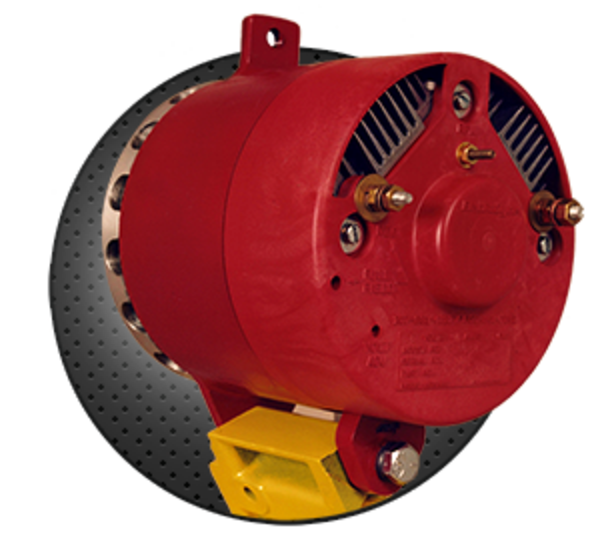

Electrodyne GE150-24 (102515-0024)
Electrodyne 24VDC GE150-24 (102515-0024)
SPECIFICATIONS
| Net Rated Amperes | 150 Amperes |
| RPM @ Rated Amperes | 4400 |
| Preset Voltage Range | 25.5 Volts DC |
| Full Load Voltage | 27.5 (with 28.0 V. DC Preset Voltage) |
| Full Load Field Coil Amps | 2.1 |
| Grounding Options | ISOL., NEG., POS. |
| Rotation | Bidirectional |
| Shaft Diam. (Pulley I.D.) | 7/8" |
| RPM Terminal | Standard |
| Voltage Regulator, STD. | Integral, Adjustable, Self-Exciting |
| Voltage Regulator, Optional | Remote, Self or Ignition Excited |
| Wiring, STD | 2-Wire |
| Wiring, Optional | 1-Wire (Internal Ground) |
| Diode Construction | Individually Replaceable |
| Diode Capacity, Amperes | 225 @ 400 |
Literature:
Brushless Alternators Repair and Troubleshooting
MurCal is an Authorized Distributor of Electrodyne products.
MurCal provides experienced application and product support, before and after the sale.
