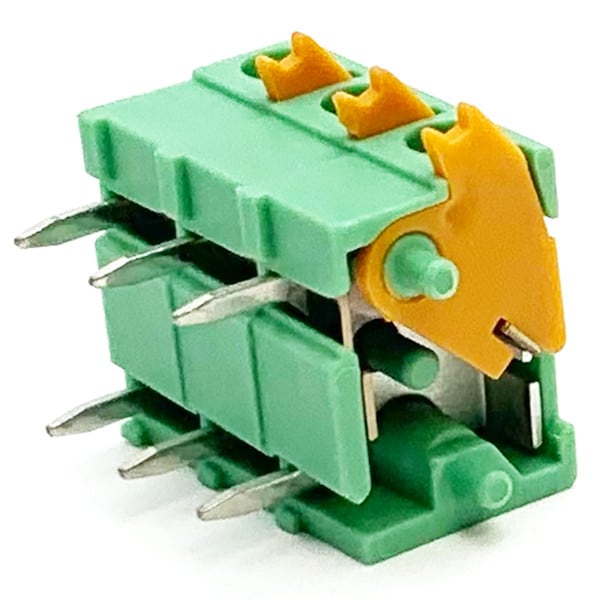

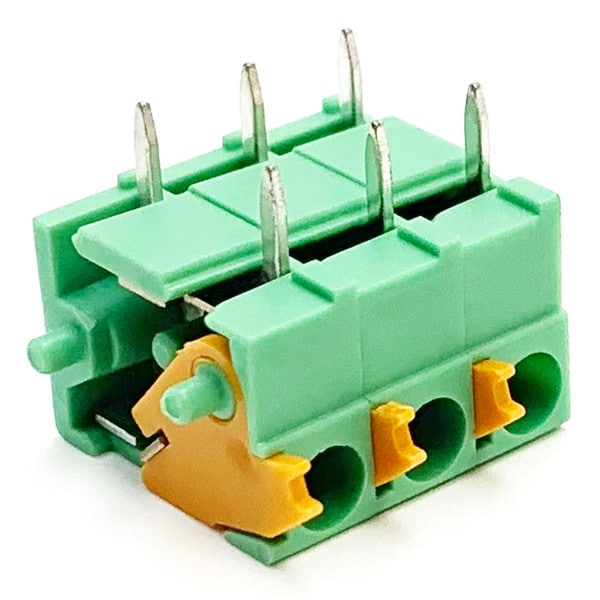

Phoenix Contact FFKDS/H2-5, 08 PC Terminal Block

(0)No Reviews yet
SKU: Phoenix FFKDS/H2-5,08
For Price & Availability Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Contact Our Sales Team 661-272-4700 or sales@MurCal.com


Phoenix Contact FFKDS/H2-5, 08 PC Terminal Block







PC terminal block:




  • Nominal current: 15 A,


  • Nom. voltage: 250 V,


  • Pitch: 5.08 mm,


  • Number of positions: 1


  • Type of connection: Spring-cage connection,


  • Assembly: Soldering,


  • Conductor/PCB connection direction: 0ø,


  • Color: green







The article can be aligned to create different numbers of positions.



Dimensions / Positions:




  • Length: 15.8 mm


  • Pitch : 5.08 mm


  • Number of positions : 1


  • Pin dimensions: 0.5 x 1 mm


  • Hole diameter: 1.3 mm


  • PHOENIX CONTACT ORDER # 1790461







Literature:



Data Sheet
