20DP-50: 2" Differential Pressure gage; 0-50 psi (05700388)
20DP-50: 2" Differential Pressure gage; 0-50 psi (05700388)
The 25DP series mechanism is enclosed in a steel case coated to resist corrosion. The gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts have self-cleaning motion to ensure electrical continuity.
Features:
- Constant visual indication of the condition of your filter is shown on the dial.
- Two instruments in one with an accurate indicating gage and adjustable p.s.i.d. limit switch reduces inventory and installation time.
- Adjustable contact lets you set the monitoring range of the gage. The contact is tamper proof and can be set only with a 1/16 Allen-head wrench.
- All gages are made of durable materials allowing them to withstand rugged applications.
- Early filter changes cost you money and increase the risk of contaminants entering the system. A filter restriction Swichgage instrument will let you know when to change the filter and maintain peak efficiency.
Specifications:

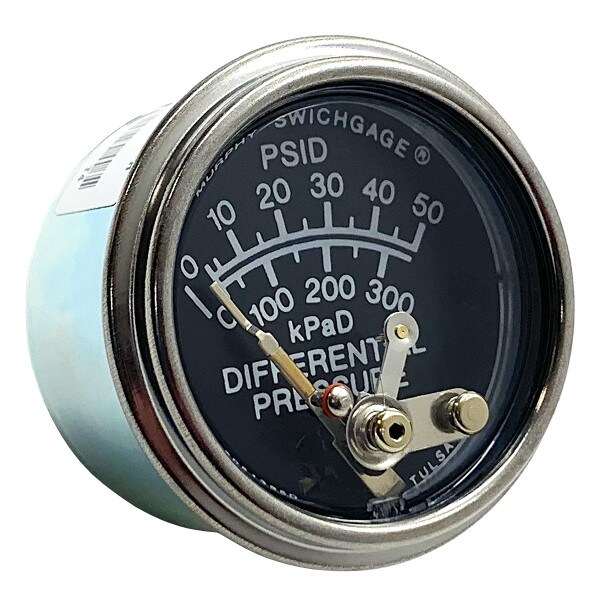

Dial: White on black, dual scale; U.S.A. standard scale is psi/kPa. Other scales available
Case: plated steel.
Lens: Polycarbonate, high-impact
Temperature Range:
Ambient: -40° to 150° F (-40° to 66° C)
Process: -40° to 250° F (-40° to 121° C)

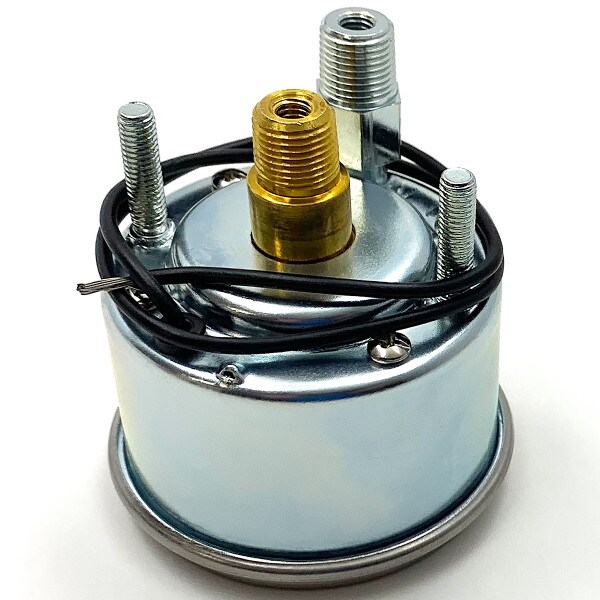

Process Connection: 1/8-27 NPTM brass
Sensing Element: Beryllium copper diaphragm
Gage Accuracy: ±3% maximum across scale
Adjustable Limit Contact: SPST contact; pilot duty only, 2 A @ 30 VAC/DC; closed when the low limit is met, open when pointer is in normal operating range. Contacts are gold flashed silver.
Limit Contact Adjustment: by 1/16 in. hex wrench through 100% of scale.
Limit Contact Wire Leads 25DP Series: 18 AWG (1.0 mm2) x 12 in. (305 mm)
Unit Weight: 11 oz. (0.29 kg)
Unit Dimensions:
4-3/4 x 4-3/4 x 2-3/4 in. (121 x 121 x 70 mm)
