OPLC-S-300-EL Pressure Swichgage® (05706021)

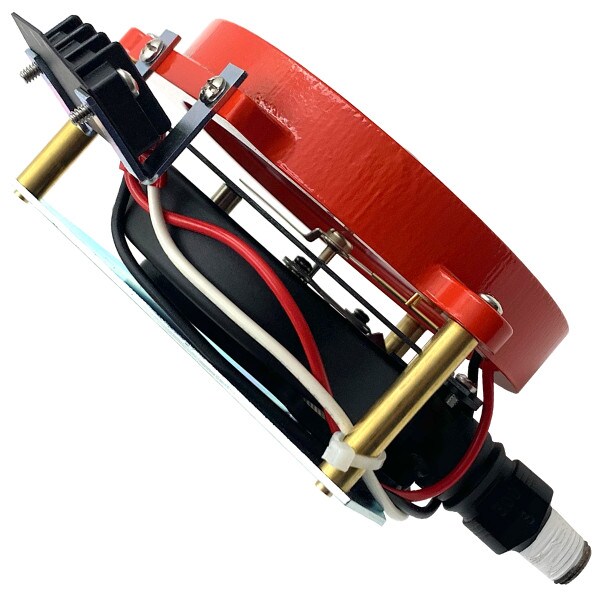

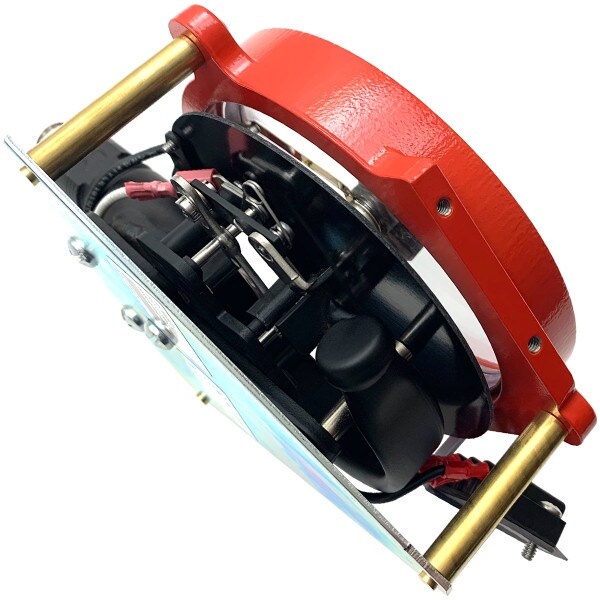

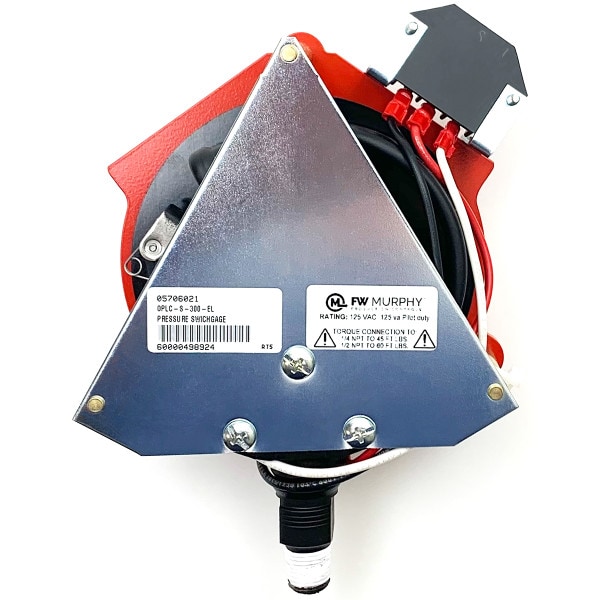

OPLC-S-300-EL: 4.5" Stainless Pressure Swichgage®; surface mount w/ low limit lockout switch; 0-300 psi; Explosion-proof less case. (05706021)
OPLC gage instruments have high and low limit contacts to monitor, alarm or shut down. The OPLC has a flanged case. A method to override the low limit contact for start-up is provided on OPLC models.
Specifications:
- Case: Die cast aluminum; weatherproof.
- Contact Ratings: 1 SPDT; Center off; 2A, 30 VDC / 1A, 125 VAC pilot duty

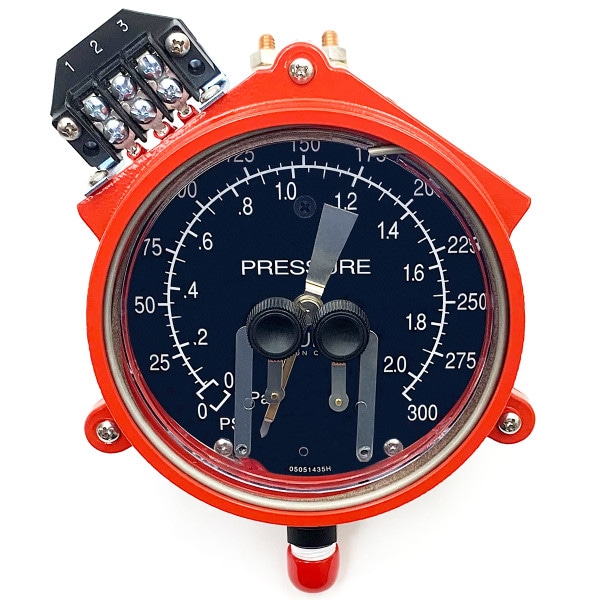

- Dial: 4-1/2 in. (114 mm) white on black, dual scaled psi /kPa
- Gage Accuracy: 2-1-2 ±2% for the first and last quarters of the scale, the middle half is ±1%.
- Geared Movement: 302 and 304 stainless steel.
- Lens: Optically clear polycarbonate.
- Pointer: High visibility with a pointer calibration hub.
Literature:
MurCal is an Authorized Distributor of FW Murphy products.MurCal provides experienced application and product support, before and after the sale.
