25T-OS-300-16-1/2 Temperature Swichgage® (10707196)

(0)No Reviews yet
$209.75
SKU: 25T-OS-300-16-1/2 (10707196)

This item is IN STOCK

Current Stock: 83

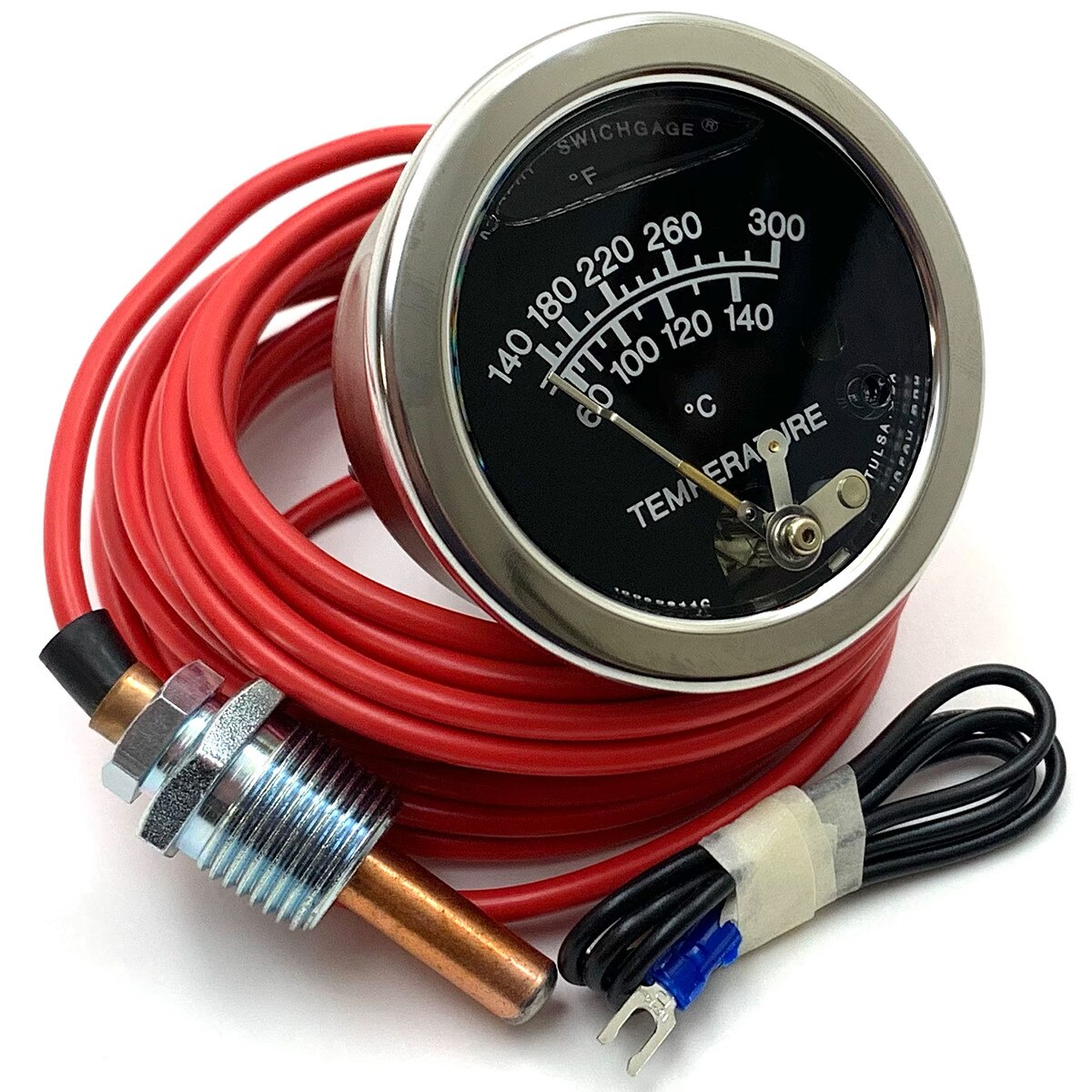

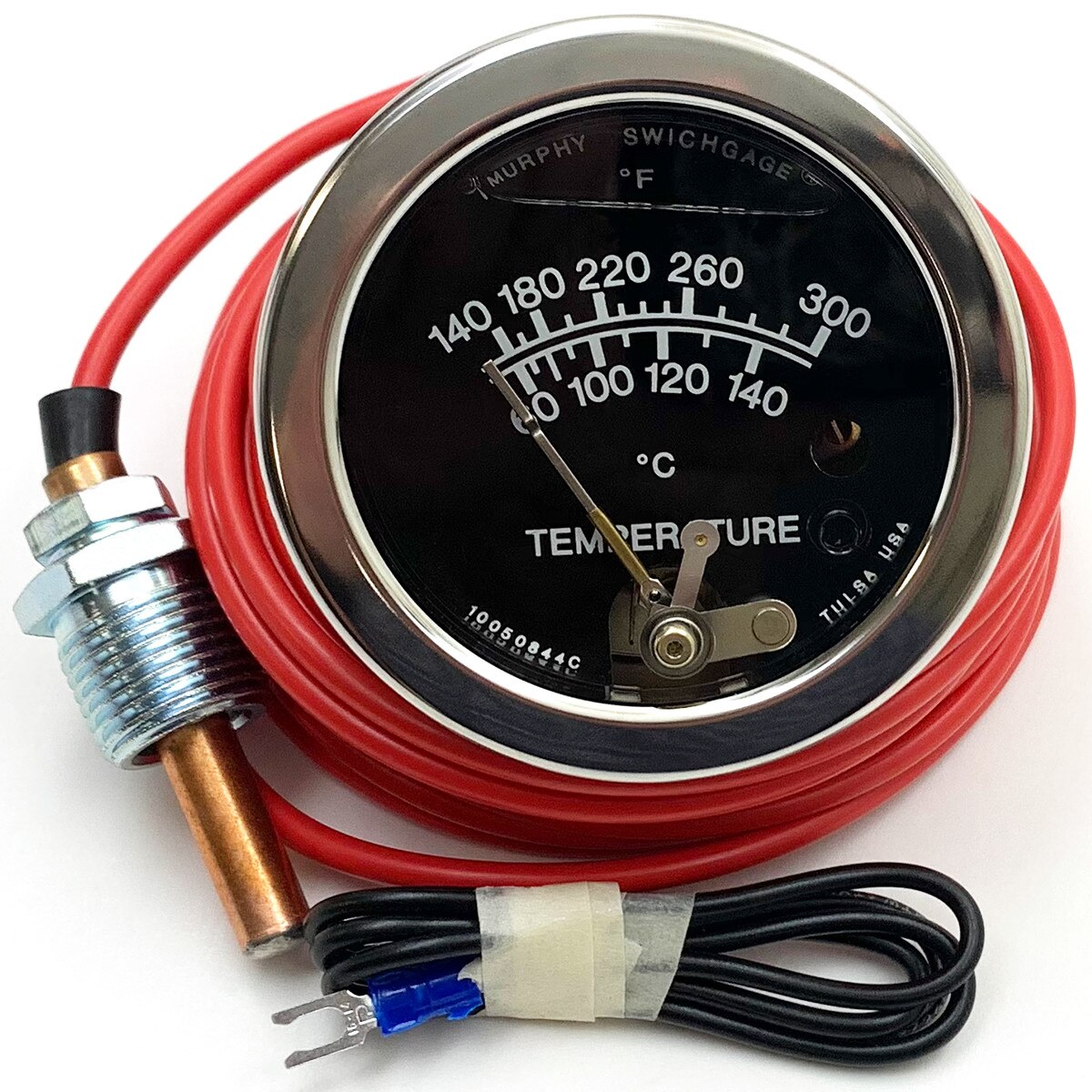

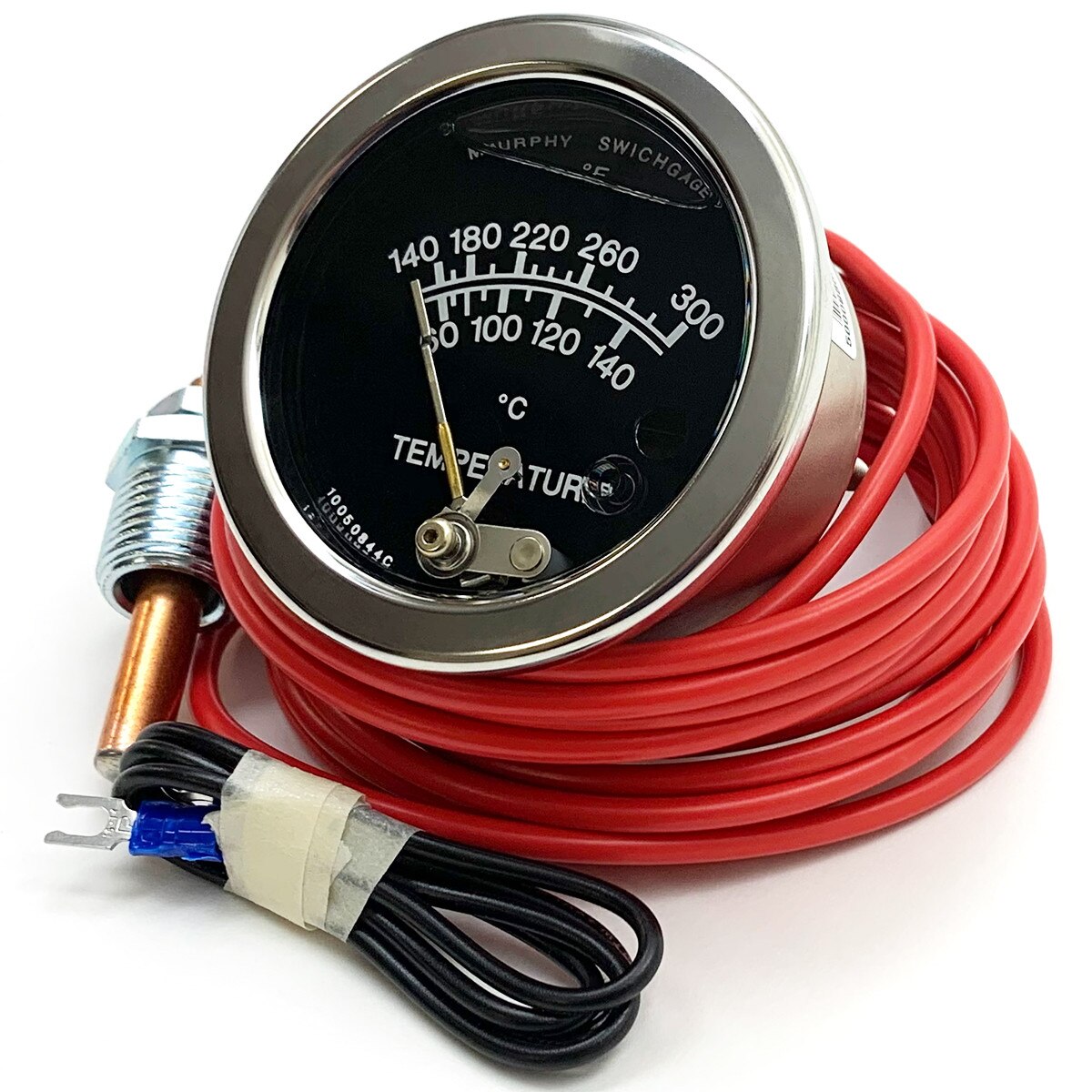

25T-OS-300-16-1/2: 2.5" Temp Swichgage; Oil Sealed; 140-300 temp range; 16 ft capillary (10707196)



The 25 Series (2-1/2 inch/64 mm dial) Swichgage models are diaphragm-actuated, temperature-indicating gages with built-in electrical switches for tripping alarms and/or shut-down devices.

The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break- resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument.

These vapor-actuated gages feature a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.

The gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are grounded through the Swichgage case. They have a self-cleaning motion to enhance electrical continuity.

These instruments are used on equipment in oil field and monitoring engine coolant, crankcase oil and transmission oil.




Features:


  • Dial: White on black; U.S.A. standard scale is dual scale °F/°C; others available (see How to Order)
  • Case: Plated steel; mounting clamp included (except direct mount models)
  • Bezel: Polished stainless steel, standard.
  • Pointer: Tempered nickel silver
  • Lens: Polycarbonate, high impact
  • Sensing Element: Beryllium copper diaphragm
  • Capillary: PVC armored copper; 4 ft. (1.2 m).
  • Sensing Bulb: Copper
  • Maximum Ambient Temperature: -40°F (-40°C) through 150°F (66°C)
  • Adjustable Limit Contact: SPST contact; pilot duty only, 2 A @ 30 VAC/ VDC; Ground path through encasement. Normally Closed (NC) when the high limit is met. Normally Open (NO) when pointer is in normal operating range. Contacts are gold flashed silver.
  • Limit Contact Adjustment: By a 1/16 in. hex wrench through 100% of the scale
  • Limit Contact Wire Leads: 18 AWG (1.0 mm) 2 x 12 in. (305 mm)
  • Snap-Switch Wire Leads: 20 AWG (0.75 mm2) x 12 in. (305 mm)
  • Unit Weight: 20 Series: 12.7 oz. (0.39 kg); 25 Series Models: 13.8 oz. (0.43 kg)
  • Unit Dimensions:
  • 25 Series Models: 4-3/4 x 4-3/4 x 3 in. (121 x 121 x 76 mm)


Literature:


  1. Sales Bulletin
  2. Installation Instructions


MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.


For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
