HVS780 HelmView® COM Marine (78700561) *SPECIAL ORDER ITEM*
HVS780 HelmView® COM Marine, 7" TFT LCD (78700561)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 10 Weeks For Delivery Of This Product
———

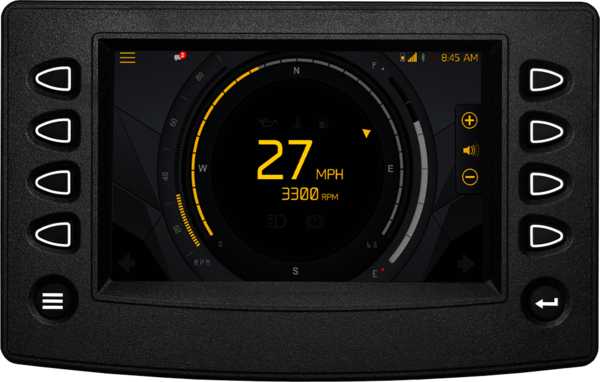

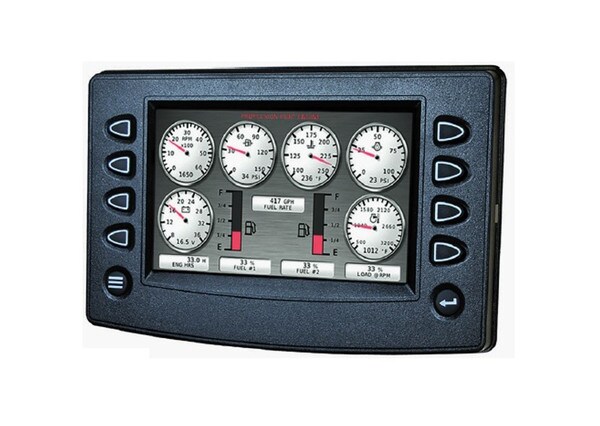

The Murphy Marine Compact Configurable HelmView Display with 7" TFT LCD HVS780 is a full-featured, configurable display that integrates electronic engine, transmission and vessel information into an easy to read operator interface. Operators can monitor multiple parameters, including single or dual engines, fuel usage, and much more. The HelmView HVS780 display features a full-color 7-inch / 178mm bonded LCD screen for rugged environments. It has ten tactile push buttons that can easily be pressed with or without gloves. In addition, it comes pre-loaded with a standard marine software configuration that features custom parameters and interface screens tailored for commercial marine applications.
Customize the HelmView display with Murphy’s PowerVision Configuration Studio, a powerful tool that allows you to create custom configurations for unique commercial marine applications - including tug boats, fishing vessels, search and rescue, cargo and more. The HelmView HVS780 paired with the PowerVision Configuration Studio extends custom configuration from only monitoring to equipment control, data logging, and additional alarming. You can even add custom graphics and company branding to the user interface.
Display Parameters
The following are some of the parameters displayed by the HelmView HVS780 in English or Metric units (when applicable, consult engine or transmission manufacturer for SAE J1939 supported parameters).
Engine RPM • Engine Hours • System Voltage • % Engine Load at the Current RPM • Coolant Temperature • Oil Pressure • Transmission Oil Temperature • Transmission Oil Level • Tank Levels • Course over Ground* (NMEA GPS Antennae required) • Speed over Ground* (NMEA GPS Antennae required) • Longitude and Latitude* (NMEA GPS Antennae required) • Real Time Display* (NMEA GPS Antennae required) • Instantaneous Fuel Usage • Trip Fuel • Navigational Bearing • Active Service codes • Stored Service Codes (when supported) • Video
FEATURES:
- Video Input
- Multiple Night Viewing “Blackout Mode” Options
- Configuration Software Option Offers Virtually Unlimited Possibilities
- Rugged Design That Is Simple To Use
- Bonded 7-inch LCD Screen Viewable In Direct Sunlight
- Customizable For Additional Commercial Marine Applications
- Color Display For Modern Electronic Engines and Vessel Monitoring Using SAE J1939 Controller Area Network
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
