IS-16D Intellispark® Ignition Controller (72700253)

(0)No Reviews yet
$3,763.99
SKU: IS-16D Intellispark Ignition Controller (72700253)
For Price & Availability Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

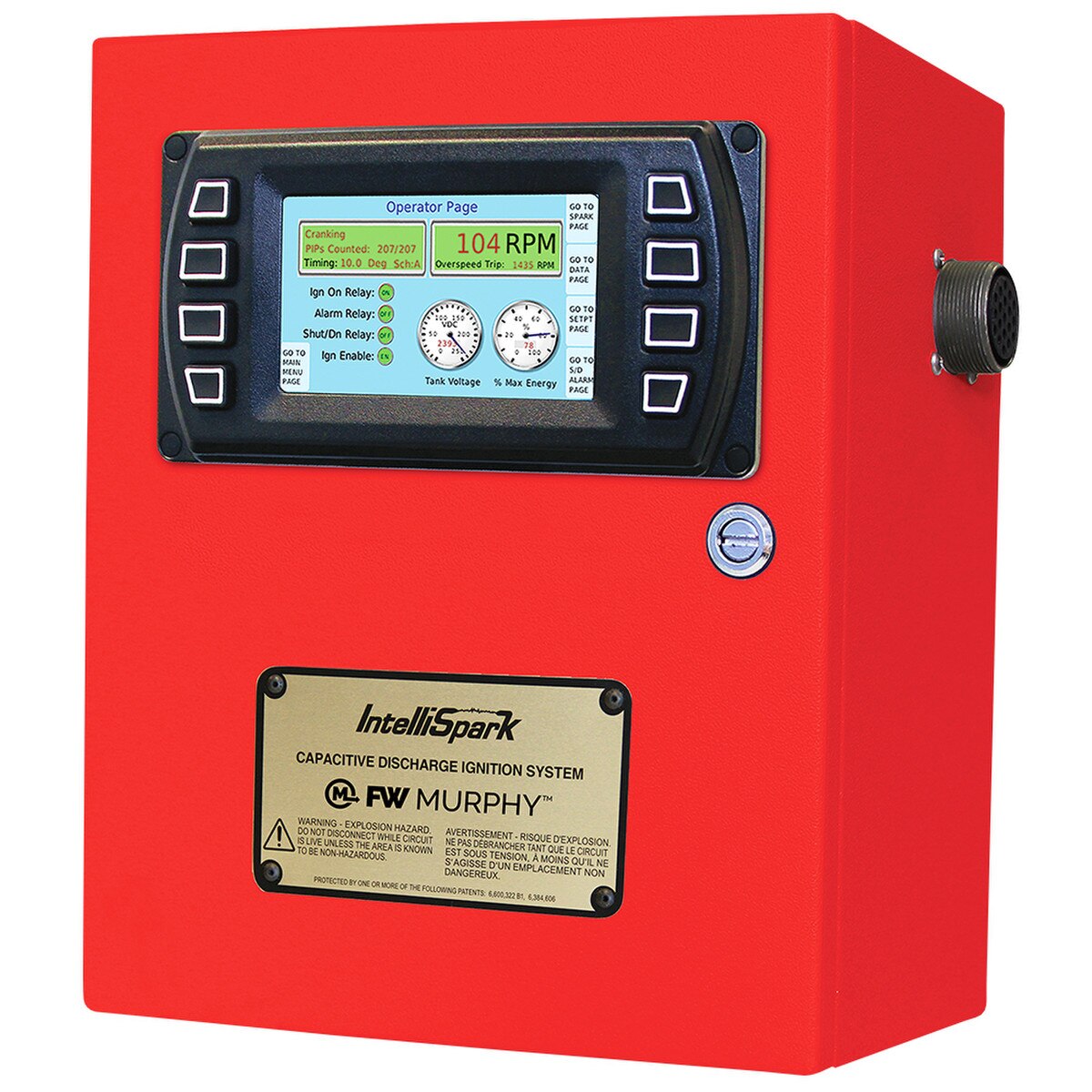

IS-16D: Murphy Power Ignition Controller. Works on Engines Up to 16 Cylinders. Includes Color Display for programming and Diagnostics.  (72700253)


CONTROLLER ONLY. Requires coils - pickups - harnesses - ferrous pin - and other engine mounted items.

The IntelliSpark series ignition systems are capacitive discharge, low-tension type designs. The system is capable of generating precise spark timing that improves fuel economy, load balance and ignition stability.
The controller design incorporates a state-of-the-art 16-bit microcontroller. This technology provides users with a highly flexible solution to meet their ignition needs.
The user can choose from one of five methods of crankshaft sensing for a 4-stroke engine and two methods for a 2-stroke engine.
FW Murphy’s smart ignition coils used with this product incorporate a sense lead connection for realtime spark plug demand voltage measurements by the ignition controller.
This allows the controller to:
• Measure demand on each cylinder’s plug for diagnostic purposes;
• Automatically control the energy delivered to the smart coils to optimize spark plug life;
• Use the measured demand in the unique camless crank method to determine the compression stroke, eliminating the need for a camshaft sensor.

Several smart coil designs are available to accommodate specific ignition requirements including:remote mount coils and plug-mounted (integral) coils, non-hazardous or CSA Class I, Div. 2 rated versions.
This system also includes the PV450 full-color screen display for control functions, monitoring, programming and diagnostic testing. The eight-button display includes comprehensive built-in help files and wiring information for the coil harness and a database of common engines for ease of configuration.


Literature:


Sales Bulletin


MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
