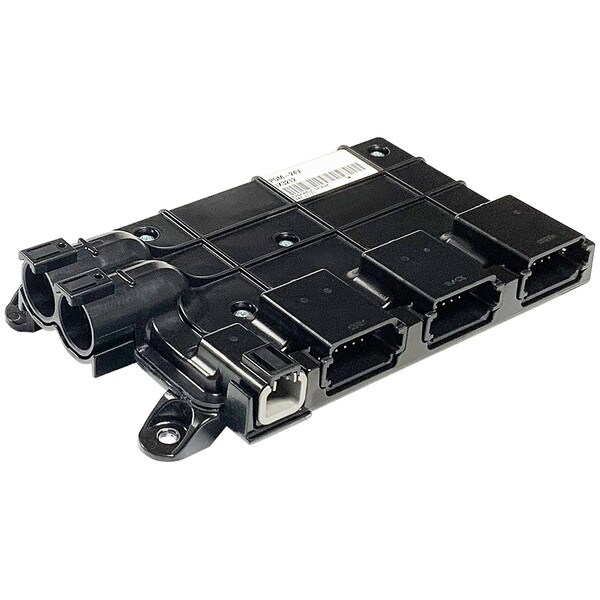

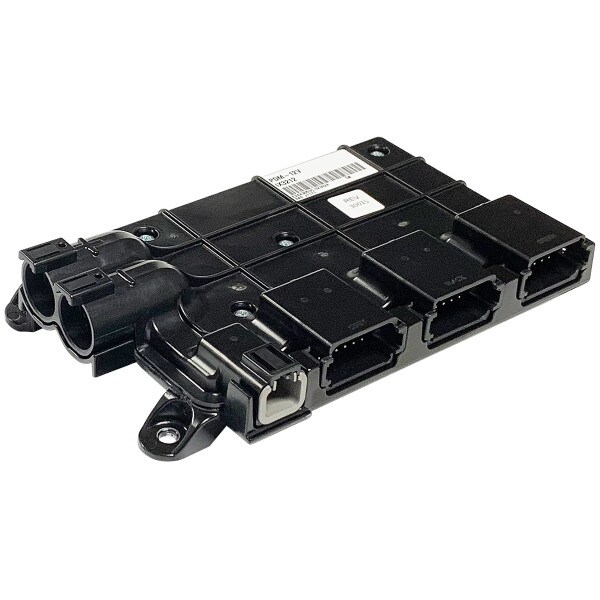

IX3212 PDM 12/24 VDC Power Distribution Module (58700013)

(0)No Reviews yet
$466.99
SKU: IX3212 PDM 12/24 VDC (58700013)

This item is IN STOCK

Current Stock: 8

IX3212 PDM, 24V VDC Power Distribution Module  (58700013)



The Murphy Intelligent Xpansion™ Power Distribution Module (PDM) expands CAN bus control networks by replacing existing relay and fuse boxes with more reliable solid-state switches that can directly drive work lights, wiper motors, cooling fans, directional DC motors and other high current loads.

Updated 24V DC IX3212 PDM, replaces E2443053C.

Each of the 12 IX3212 outputs can switch or proportionally control up to 15 A loads in 2.5 A increments and feature built-in over-current detection and shut-down capability. Outputs are paired to run up to six electric motors with H-bridge direction control.
Twelve digital inputs monitor switched battery, ground and floating inputs. Additionally, eight analog inputs are available with a 5V sensor supply.
Wiring length is reduced and costs are cut by remotely locating the IX module near loads and signals. The I/O is multiplexed using a CAN bus network which allows engineers to greatly simplify harness design for ease of installation and improved reliability.
For applications not requiring a CAN bus controller, the inputs can directly trigger the outputs so there is no need for a separate controller.

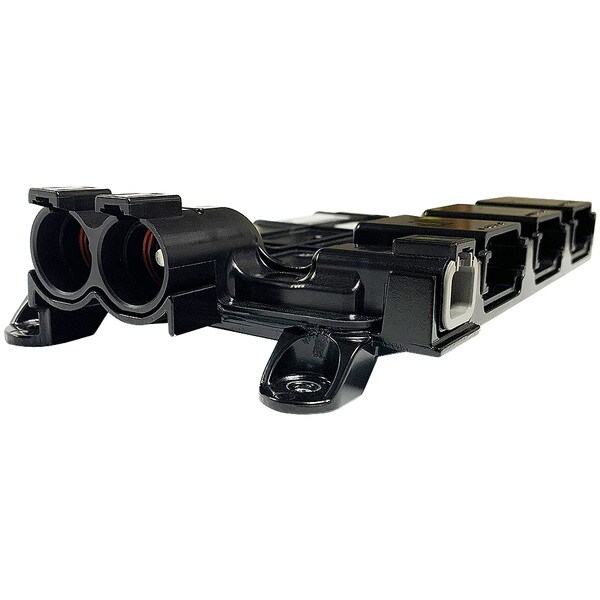

The enclosure is fully sealed and potted to withstand wash down and protect from dust.


Specifications:


Operating Voltage: 12V/24V nominal (8-32 V) Reverse polarity protection
Operating Current: Total: 70 A, simultaneous active outputs
Standby (idle) current draw: <125 mA typical Sleep current draw: < 4mA typical
Sensor Supply: 5 VDC at 70 mA
CAN Interface: CAN 2.0B Active, SAE J1939 Proprietary A messaging, 250 kbps
Housing: PBT cover with E-coated cast aluminum base
Dimensions: 245 mm (L) x 140 mm (W) x 50 mm (H)
Weight: 2 lbs (900 gram)

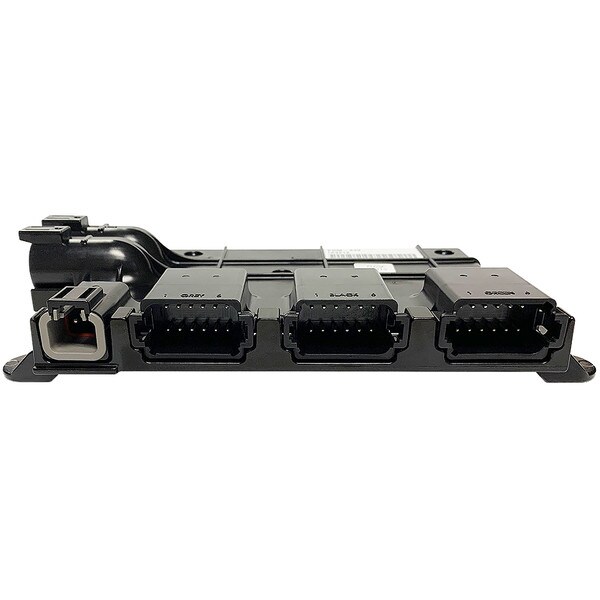

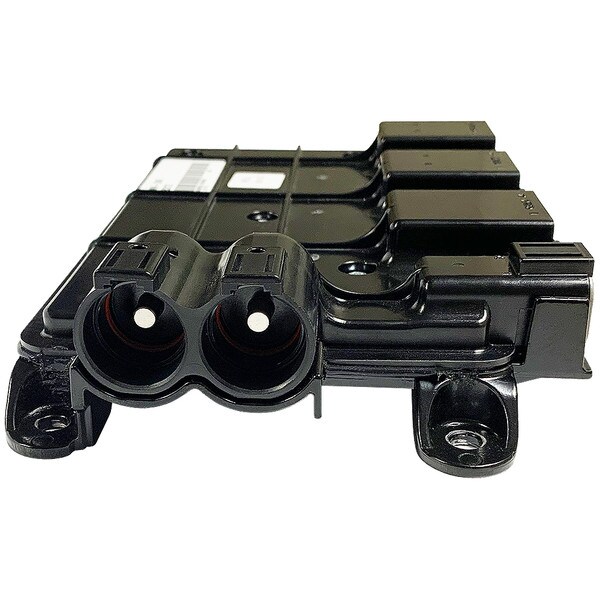

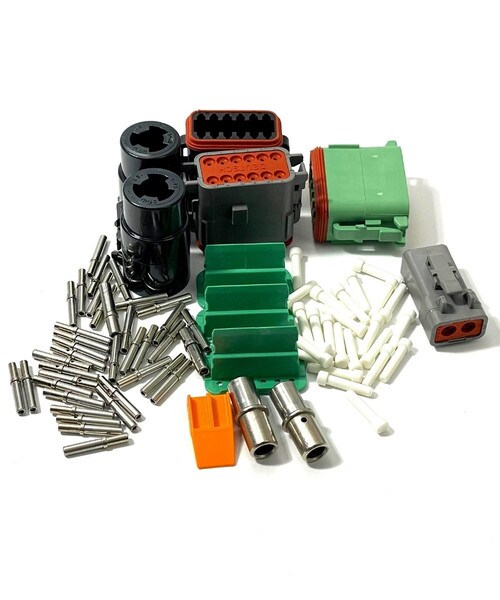

Connectors: Nickel-plated copper alloy contact surface Deutsch DT series 12 pin (J3, J4, and J5); Deutsch DTP series 2 pin (J6); Deutsch DT HD power series 1 pin (J1 and J2).


IMPORTANT UPDATE

Please read the PDM Service Bulletin in the Literature section below.


Literature:

  1. Sales Bulletin
  2. Reference Manual
  3. PDM Service Bulletin



MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
