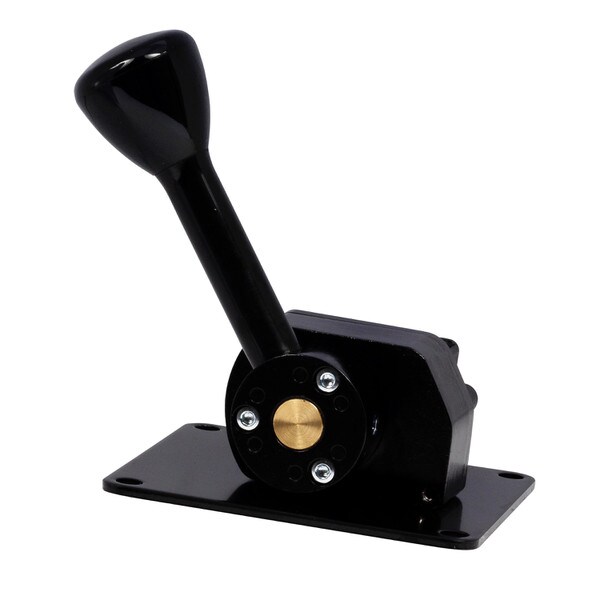

J1939 TSC1 Top Mounted Hand Throttle (97289028)

(0)No Reviews yet
SKU: MCS J1939 0-100 Percent Top Mounted Hand Throttle (97289028)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

J1939 TSC1 Top Mounted Hand Throttle (97289028)


All electronic throttle controls are fitted with programmable hall effect sensors. The signals generated by the electronic throttle controls will allow a smooth and precise engine speed control.
The output values are programmable and hence can be adapted to the customer’s specifications. Electronic throttle controls can be connected directly to the engine management system, or engine electronic control module.


•  Adjustable actuating force
•  No return spring
•  Allows engine constant RPM at selected rate through lever position
•  Easy to use in combination with Throttle Pedal or Throttle Position Sensor
•  Very convenient whenever engine is operated from one, or several, remote stations
•  CE certified
•  Travel angle: 90 degrees
•  Supply voltage: 12.0V / 24.0V
•  Output signal: CAN J1939 protocol


J1939 Parameters:

•  J1939 messages and signals can be activated according to MCS Throttle default values or customer specifications
•  J1939 Parameters like SA (Source Address) or NAME fields can be set according to MCS Throttle default values or customer specifications
•  Optional messages such as DTC (DMx, FMI, MIL, …) can be activated upon customer request
•  Wire harness (PEHJ 0962 801 030) has an integrated interface. It is NOT removable. Length is 30 cm.
•  J1939 Connector: Deutsch DT06-3S-E008




  1. Specifications Manual, 972 Series
  2. 972 X90 XX Drawing
  3. 972 890 28 Drawing
