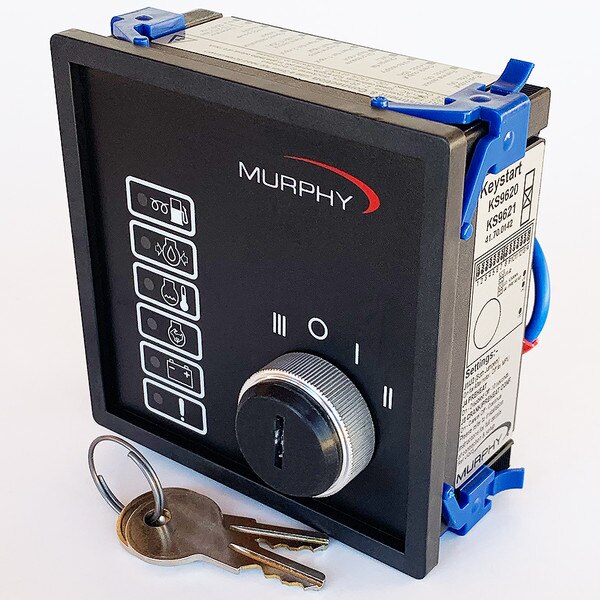

KEY9621-K2 Keystart (41700142)

KEY9621-K2: Rubberized keystart with overspeed protection, selectable AC generator or magnetic pickup sensing. (41700142)

Keystart control modules provide manual start/stop and automatic fault protection for generators, pumps and other engine-driven applications.
Outputs allow control of engine fuel (energized to run), starter motor and preheat.
The Keystart also has an alarm output for remote or audible warning of faults. Six LEDs and icons indicate engine status and faults. Four switch inputs (closing to negative on fault) enable automatic shutdown on engine low oil pressure, high coolant temperature and auxiliary faults.

Model 9621 has a fully adjustable engine overspeed shut-down feature, configurable for either generator AC or magnetic pickup speed signals.
Charge alternator excitation and a charge fail warning LED are standard.

Power Supply Operating voltage, steady state: 7 to 30VDC
Operating voltage, brown out/cranking: 5VDC minimum
Current consumption: <100mA
Inputs Fault switch inputs: close to negative DC during fault
Generator AC input (model 9621 only): 70 - 270 VAC rms, <50

Literature:

Sales Bulletin
