Keybox Relay Module, 12V, 10A (KB312V-10A)

(0)No Reviews yet
$332.99
SKU: Blink-Keybox Relay Module, 12V, 10A, (KB312V-10A)

This item is IN STOCK

Current Stock: 4

Keybox Relay Module, 12V, 10A (KB312V-10A)



The 12 Volt, 10 Amp Keybox is a compact and versatile smart relay module for electric loads that permits the utilization of Blink Keypads where there are no PLC systems on board. By utilizing its CAN bus interface and high-power outputs, Keybox can be used in “slave” mode with complex systems.

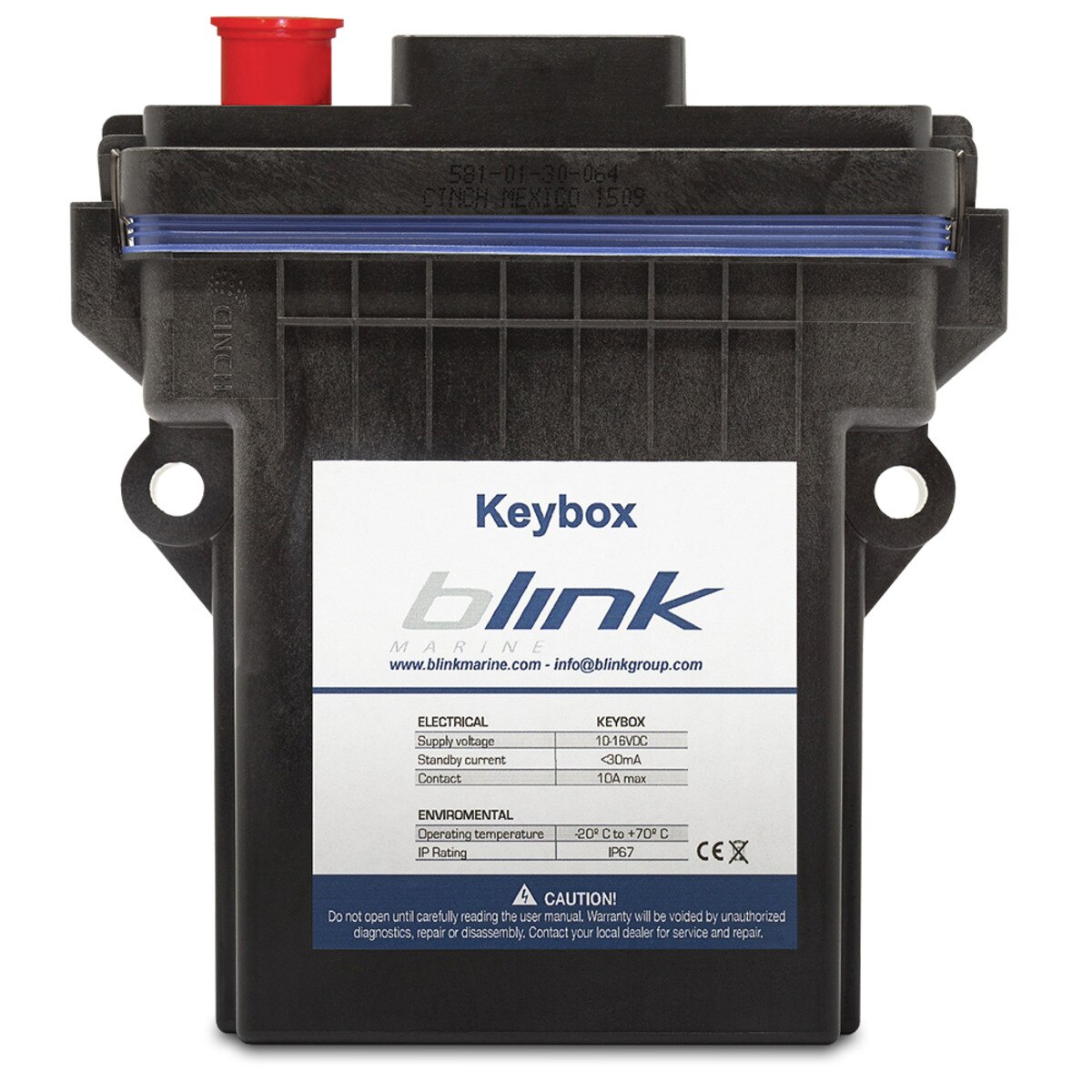

Larger Image: Keybox Relay Module


Electrical Features:



Eleven (11) Switched Circuits that Include:
•  Momentary, toggle, time-out functions and digital input
•  Circuits rated up to 10A at 12V and 5A at 24V maximum continuous load (resistive)
•  Two (2) optional low-side circuits



Two (2) Solid-State Switched Circuits that Include:
•  Momentary, toggle, time-out functions and digital input
•  Pulse-width modulation of output voltage for dimming capability
•  Circuits rated up to 3A maximum continuous load (resistive)
•  Parallelable outputs (increases the current rating)
•  Isolated relay outputs
•  Replaceable automotive mini blade fuses for overcurrent protection
•  Input undervoltage lock down and overvoltage protection
•  Cinch header connector SHS 18 pin



Environmental Features:



•  Operating ambient temperature: -20°C to +70°C (-4°F to +158°F)
•  Storage ambient temperature: -40°C to +85°C (-40°F to +185°F)
•  Humidity: 0 to 98% (non-condensing)
•  Waterproof IP67 enclosure



Special Features:



•  CAN-bus compatible (CANopen/J1939 compliance available)
•  Field programmability of electrical functions and current limit trip points available to authorized OEMs and Value-Added Resellers (VARs)

Literature


  1. Keybox Datasheet
  2. Keybox CANOpen User Manual
  3. Keybox J1939 User Manual
  4. Keybox 3 CANOpen Slave User Manual
  5. Keybox CAN J1939 Slave User Manual


MurCal is an Authorized Distributor of Blink Marine products.
MurCal provides experienced application and product support, before and after the sale.
