L1200NDVO Pneumatic Level Switch (15700078)
L1200NDVO: Pneumatic Level Switch with dump valve operator (without pressure regulator). (15700078)

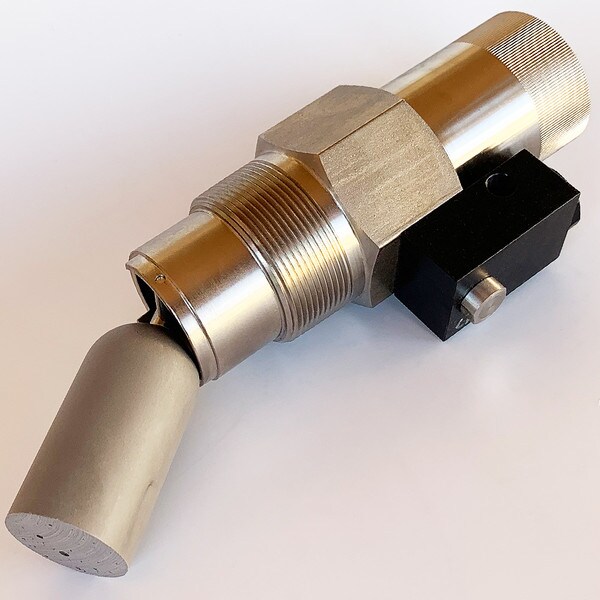

The L1200NDVO is a Float Operated Pneumatic with Dump Valve Operator (without pressure regulator). It is used to operate DVU Series dump valves or similar devices.
It provides a 2 in. NPT mounting with a pneumatic output for interfacing with pneumatic devices such as the Murphy pneumatic dump valve or other pneumatic instrumentation.
PRODUCT FEATURES:
- Designed for harsh gas compressor scrubber applications
- More robust design
- Screw directly into the scrubber or can be mounted via external float chamber
- Listed for Class I, Div. 1, Grp. C & D locations
- Canadian Registration Number 0F01476.2
- Trip on rising liquid level only
PRODUCT SPECIFICATIONS:
- Series: LS200
- Body: 316 Stainless Steel
- Float: 304 Stainless Steel
- Pressure Rating: 2000psig (13.8 MPa) [138 bar]
- Canadian Registration Numbers (issued by ABSA): 0F01476.2
- Process Connection: 2” NPT
- DVO Valve: 3-way N.C. w/manual operator, all connections 1/8” NPT (minimum 30 psig required)
- Filter/Pressure Regulator: 0 to 75 psig (0 to 517 kPa) [0 to 5.17 bar] range
- Filter/Pressure Maximum Input Pressure: 300 psig (2.07 MPa) [20.7 bar]
- Insertion Depth: 5.43 in., Std; 6.4 in., w/ 1” Extension
- Vertical Clearance: 3.3 in., Std; 3.9 in., w/ 1” Extension
