L971-C Crankcase Level Switch (15700093) *SPECIAL ORDER ITEM*
L971-C: Crankcase Level Switch, Explosion Proof; Configuration C. (15700093)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

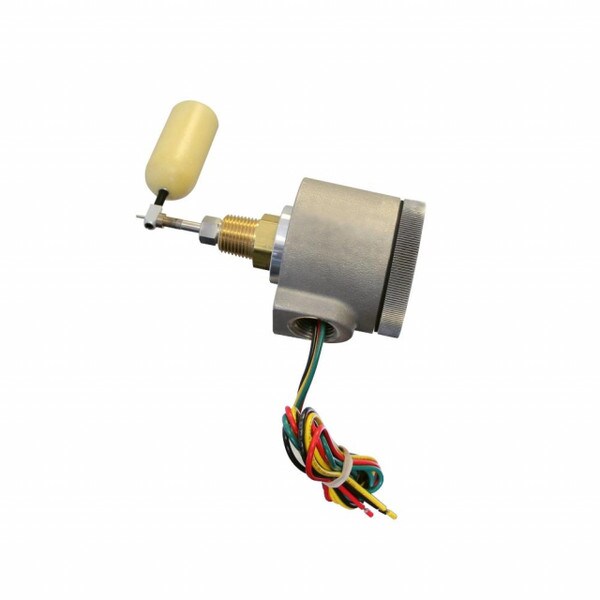

The Murphy Crankcase Level Switch with Stainless Steel Float L971-C detects low oil level in a compressor’s crankcase. As oil level in the crankcase depletes, the float on the L971-C switch falls, and if reaches the predetermined limit, will trip the internal snap-switch which in turn will initiate a shutdown and/or alarm. The L971-C may also be used to detect rising fluid levels in stuffing box containment vessel.

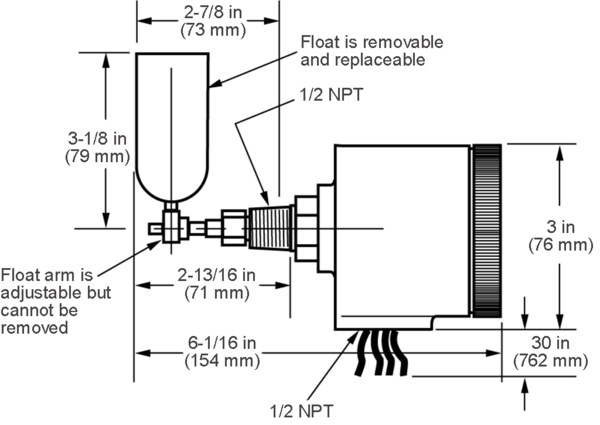

The L971-C is designed for Ingersoll-Rand Type 30, Type 40 and ESH compressors, yet can be adapted to fit other compressors that have an inspection plate extending below normal operating oil level. The L971-C has a 1/2 NPT process connection and features an explosion-proof enclosure, durable SPDT snap-switch and 304 stainless steel float.
PRODUCT FEATURES:
- Explosion-Proof Enclosure
- Rigid Polyurethane Foam Float
- Durable Low Level Switch
- Replaces Non-Explosion-proof Switch on Ingersoll-Rand Compressors
- Adaptable to Other Compressors
- Installs with Minimal Downtime
