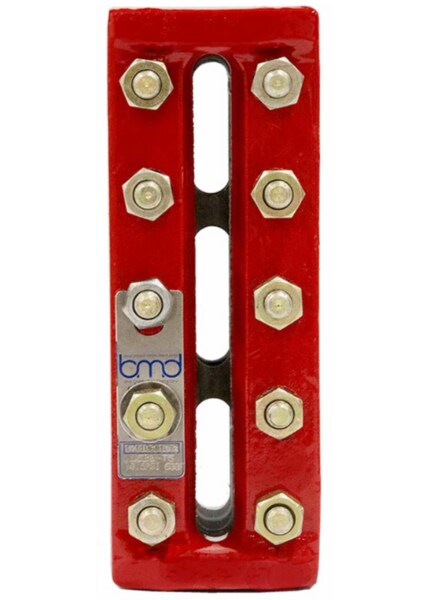

BMD - LG20 Glass Liquid Level Gauge, Transparent Style (LG20-T9)

BMD - LG20 Medium Pressure Glass Liquid Level Gauge, 1/2 FNPT Conn.s, Transparent Style, Size 9 Glass, 12 5/8 Visible Length, 14 1/8 Overall Length, Model 19 (LG20-T9)



BMD’s LG20 glass liquid level gauges are high-quality and highly dependable for mid-range pressure temperature applications


Features:


• LG20 glass liquid level gauges are rugged flat glass gauges
• Expertly made for mid-range pressure temperature applications
• Standard construction includes a solid one-piece chamber machined from carbon steel with covers, toughened glass and chrome-molybdenum bolts and nuts
• All metal parts are rustproofed
• Recessed gasket seat prevents movement and insures leak-free service

Specifications:


• Connections: 1/2” FNPT top-bottom connections.
• Gauge Style:
  • Transparent
• Glass Size: 9
  • For longer size requirements, multiple units can be constructed with multiple vision slots in a continuous solid bar chamber.
• Materials:
  • Liquid Chamber: Carbon Steel
  • Cover: Carbon Steel
  • Bolts and Nuts: Plated Carbon Steel



Literature:

Sales Bulletin
