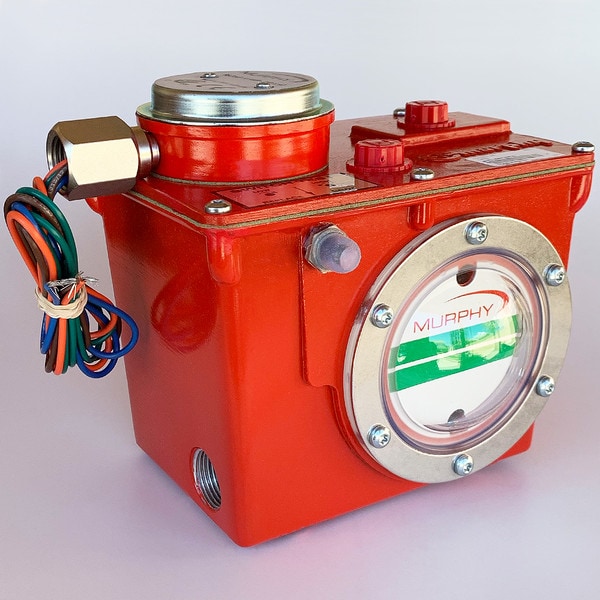

LM303 Level Maintainer (15700180)

(0)No Reviews yet
$506.99
SKU: LM303 (15700180)

This item is IN STOCK

Current Stock: 4

LM303: Level Maintainer; two switches for low- and high-level shutdown or alarm. Four wires, DPST, normally closed. (15700180)


The LM300 Series Level Maintainer automatically adds oil to the crankcase as needed to keep the lube level normal. Most models have built-in switches that will alarm and/or shutdown the equipment if the makeup supply is depleted and engine oil level falls or if overfill conditions exist.

LM303: Two switches for low- and high-level shutdown or alarm. Four wires, DPST, wired N.C. in normal operating ranges.


Applications:

Engines • Compressors • Pumps • Coolers


Specifications:

  • Case/Cover: Die cast aluminum.
  • Switch Housing: Aluminum.
  • Approval Rating: CSA certified†† for non-hazardous locations. Enclosure Type 4 certified.
  • Float: Rigid polyurethane foam. Polyurethane coated.
  • Max. Ambient Temperature: 250°F (121°C)


Literature:


  1. Sales Bulletin
  2. Installation Instructions

MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
