LS200N Pneumatic Liquid Level Switch (15700757)

(0)No Reviews yet
$260.99
SKU: LS200N (15700757)

This item is IN STOCK

Current Stock: 1

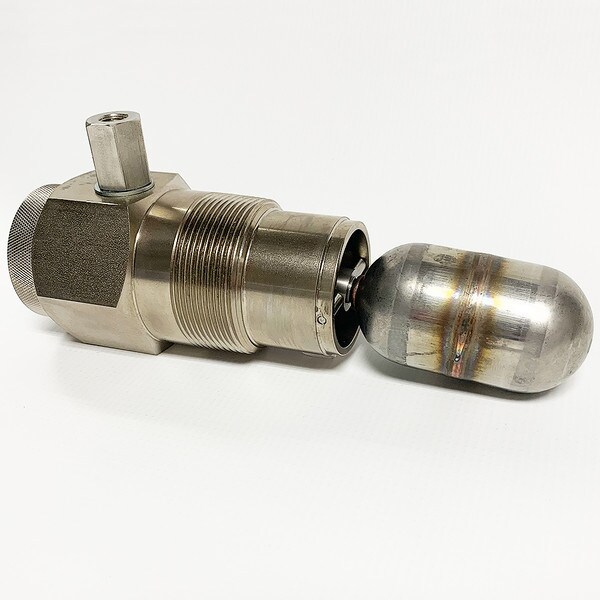

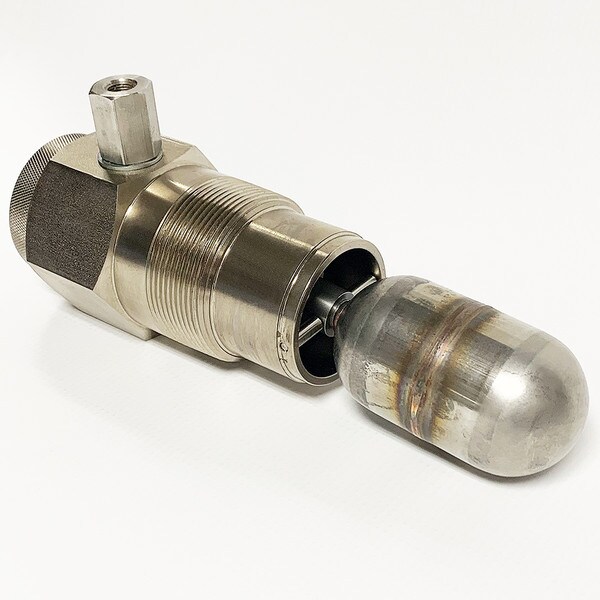

LS200N: Float Activated Liquid Level Switch with 2" NPT mounting; pneumatic level switch with snap action.  (15700757)


The LS200N Liquid Level Switch with 2" NPT mounting is float activated to operate a pneumatic snap switch for alarm or shutdown of an engine or electric motor.

The LS200N is designed for harsh gas compressor scrubber applications. The improved design provides better snap action and dependability with a reduced number of moving parts.

A nickel-plated body provides enhanced corrosion protection, and the 304 stainless steel float operates in 0.5 specific gravity and heavier fluids.

The LS200N is rated for 2000 psi (13.8 MPa) [138 bar] working pressure and listed for Class I, Division I, Group C & D locations. The vent valve is 2-way, normally closed snap action with 1/16" (2 mm) orifice and Viton seat.

Literature:


  1. Sales Bulletin
  2. Installation & Operations Manual
  3. Scrubber Level Control System Bulletin



MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
