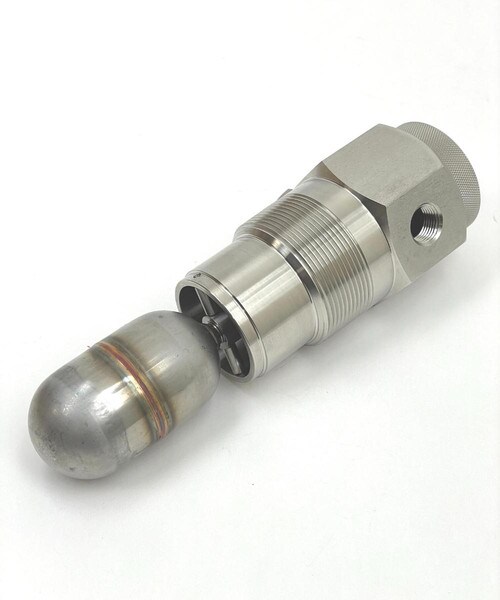

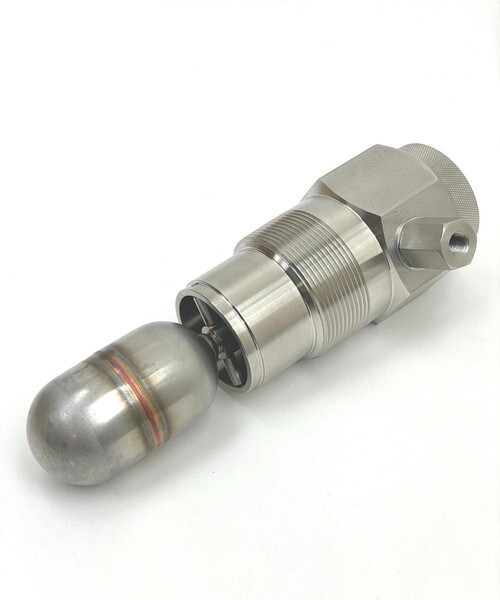

LS200NSS Pneumatic Level Switch (15700763)
LS200NSS Pneumatic Level Switch (15700763) *DISCONTINUED* AS SUPPLIES LAST
LS200N is the pneumatic level switch without the DVO or filter regulator.
Designed for harsh gas compressor scrubber applications, the LS200 Series Liquid Level Switches feature a robust design that trips on rising liquid level only.
The instruments screw directly into the vessel or can be mounted via an external float chamber. The nickel-plated body provides enhanced corrosion protection while the 304 stainless steel float operates in 0.55 specific gravity and heavier fluids.
Additional features include:
• Rated for 2000 psi (13.8 MPa) [138 bar] working pressure
• Listed for cCSAus Class I, Div 1, Grps C & D locations
• Canadian registered
• Stainless steel models available for corrosive atmospheres
The LS200 Series replaces the FW Murphy Series L1200 Liquid Level Switches. The MSLS (Scrubber Level System) replaces the LS200 high-level shut-down switch with the MLS-020 magnetic level switch
Literature:
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
