M-VIEW CCP Protocol Communication Module (50704943) *SPECIAL ORDER ITEM*

M-VIEW CCP Protocol Communication Module (50704943)

———

*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Item.

———

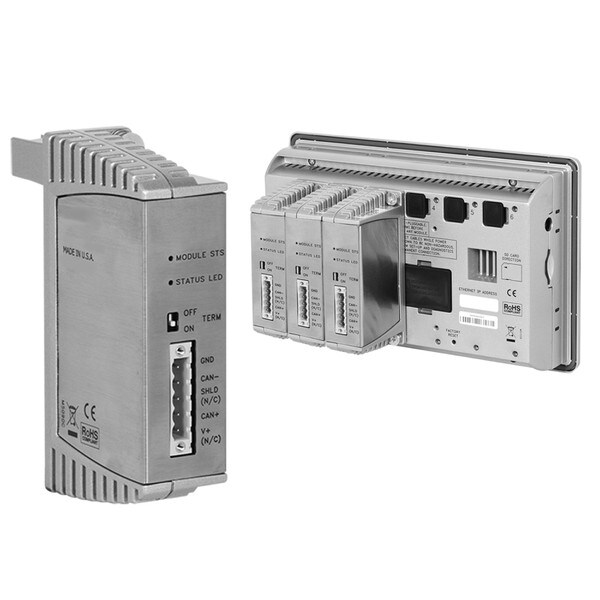

The MV-CCP is a CCP protocol communication module designed for use with the FW Murphy Engine Integrated Control System (EICS). The CCP protocol is a proprietary protocol layer operating over CAN to the EICS. The module provides the M-VIEW host device a CCP protocol communications port. It is built with digital isolation to protect the M-VIEW host device from the CCP protocol bus and vice versa. The MV-CCP module has a termination resistor built-in, and is selectable through a switch. The connector is pluggable for easy removal of the MV-CCP module from the CCP protocol bus, without disturbing communications with other devices on the bus.

The modules connect and communicate via proprietary USB connection to the various M-VIEW devices. The M-VIEW devices, equipped with serial ports as well as Ethernet port(s), allow the system to share data with PCs, PLCs and SCADA systems. The maximum number of modules varies for each M-VIEW device, see specific model for details. Remove power from the host device before installing or replacing any modules.

Literature:

Sales Bulletin

MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
