M-VIEW J1939 Protocol Communication Module (50704942) *SPECIAL ORDER ITEM*

M-VIEW J1939 Protocol Communication Module (50704942)

———

*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Item.

———

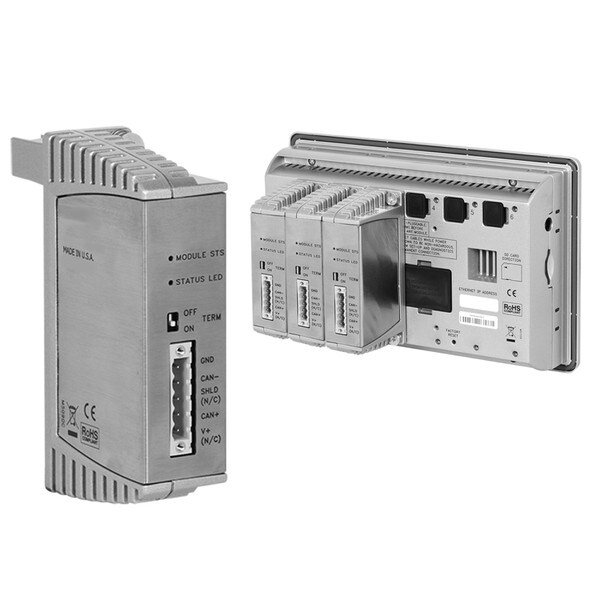

The MV-J1939 is a J1939 communication module designed for use with CAN enabled devices using J1939 protocol. The module provides the M-VIEW a J1939 communications port. It is built with digital isolation to protect the M-VIEW from the J1939 bus and vice versa. It provides the ability to communicate to any J1939 device. The MV-J1939 module has a termination resistor built-in, and is selectable through a switch. The connector is pluggable for easy removal of the MV-J1939 module from the J1939 bus, without disturbing communications with other devices on the bus.

The modules connect and communicate via proprietary USB connection to the various M-VIEW devices. The M-VIEW devices, equipped with serial ports as well as Ethernet port(s), allows the system to share data with PCs, PLCs and SCADA systems. The maximum number of modules varies for each M-VIEW device, see specific model for details. Remove power from the host device before installing or replacing any modules.

Literature:

Sales Bulletin
