M2582-P Pneumatic Valve for Fuel Gas Shutoff (55700004) *SPECIAL ORDER ITEM*
M2582-P Pneumatic Valve for Fuel Gas Shutoff, 80 PSI, 1-inch (25 mm) valve, NPT connection (55700004)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

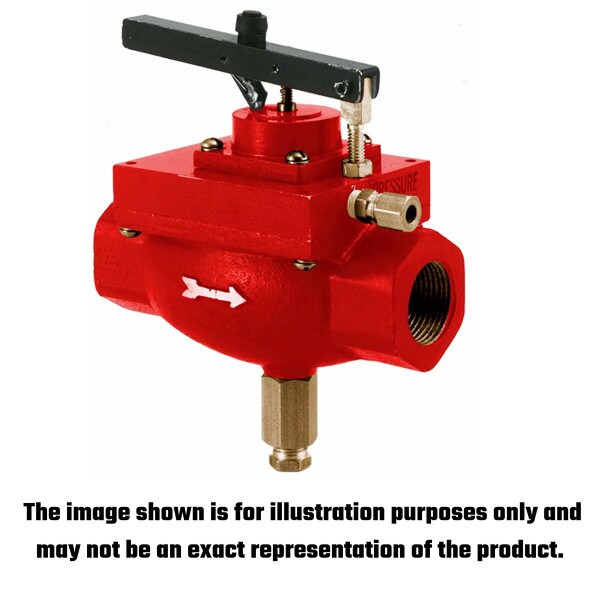

The Murphy Pneumatic Valve M2582-P is a 1-inch (25 mm) valve with one NPT connection. It has one SPDT snap-switch. It does not include the open/close indicator button. It is a semi-automatic device for shutdown of natural gas-fueled engines.
PRODUCT FEATURES:
- Valve Inlet Pressure (Maximum): 80 psi (552 kPa) [5.52 bar]
- Valve Body: Sandcast aluminum (alodined for corrosion resistance)
- Valve Seat: Buna-N
- Parts Exposed to Gas Line Flow: Aluminum, Buna-N, 302, 303, and 17-7 PH stainless steel
- Control Diaphragm: Flexweave polyester fabric and Buna-N elastomer
- Control Pressure (Maximum): 75 psi (517 kPa) [5.17 bar]
- Shipping Weight: 5 lbs 10 oz (2.55 kg)
Literature:
MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
