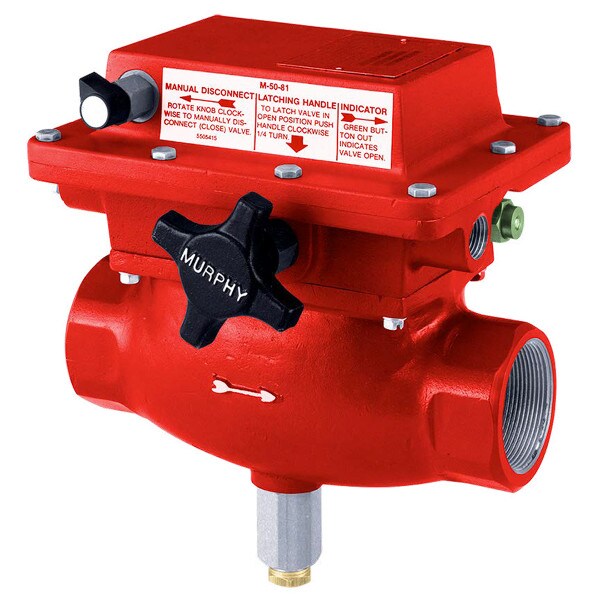

M5081-B Electromechanical Fuel Shutoff Valve (55700007)
M5081-B: Electromechanical Fuel Shutoff Valve; 2" valve with 2 NPT connections; 2 SPDT snap-switches; Battery Trip Coil; Aluminum Body (55700007)
The M5081-B fuel shutoff valve is a semi-automatic device for shutdown of natural gas-fueled engines. The valve is opened manually and closes when the electromagnet is energized and trips the latch. The valve can be closed manually by turning the disconnect knob.
A vent in the valve body relieves trapped gas when the valve closes. A pop-out indicator button informs you when the valve is open or closed. The valve’s tripping power is provided by a 12-/24-V battery. The M5081-B is a 2-inch (51 mm) valve with two (2) NPT connections. It has two (2) SPDT snap-switches.
Valve Body Material: Sandcast aluminum, painted red (corrosion resistance).
Shipping Weight = 14 lbs 8 oz. (6.58 kg)
Base model M5081 = 100 psig (689 kPa) [6.89 bar]
“B” = Battery trip coil
Literature:
