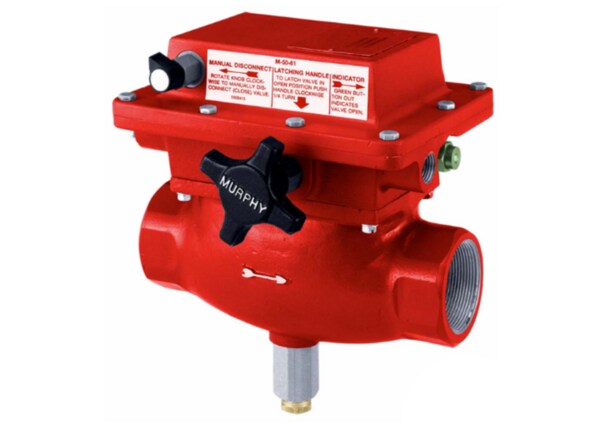

M5081FS-B-3 Natural Gas Shutoff Valve; 24VDC (55700034) *SPECIAL ORDER ITEM*
M5081FS-B-3 : 2" Natural Gas Shutoff Valve; 24VDC, Normally Energized Circuit , Steel body and Steel Flange Mount. (55700034)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———
The Murphy Fuel Shutoff Valve M5081FS-B-3 is a 2-inch (51 mm) valve with two NPT connections. It has one SPDT snap-switch. It is a semi-automatic devices for shutdown of natural gas-fueled engines. The valve is opened manually and closes when the electromagnet is energized and trips the latch. The valve can be closed manually by turning the disconnect knob. This model holds the valve open electrically and closes when the coil is de-energized. A vent in the valve body relieves trapped gas when the valve closes. A pop-out indicator button informs you when the valve is open or closed.
PRODUCT FEATURES:
- Instant Response to Shut Off Signal
- Positive Valve Closure
- Vents Gases Trapped After Shutdown
- Normally Energized
Literature:
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
