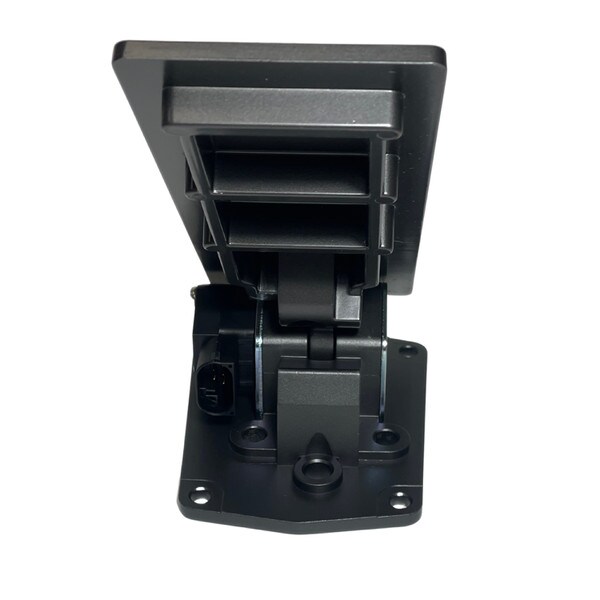

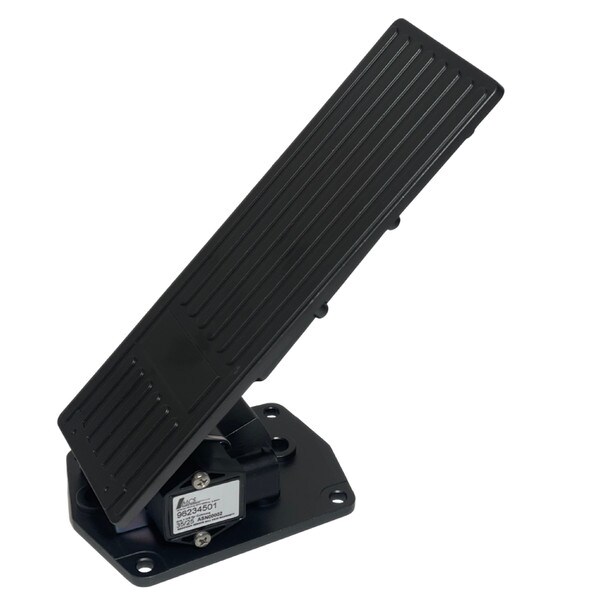

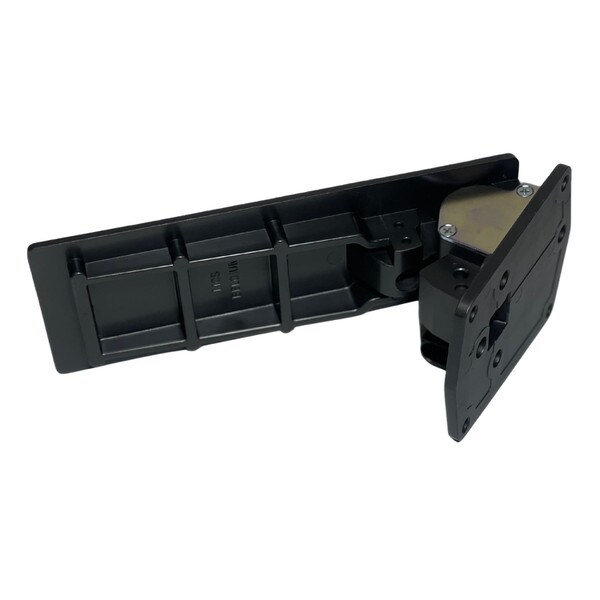

MCS Cummins Analog + IVS Pedal (962 345 01)
MCS Throttle Foot Pedal for use on Cummins engines using the CM850 ECU. Output analog VDC from .47V (=/-.05V) to 3.95V (+/-.05V). IVS at 0.7V (+/-.05V) (962 345 01)
All electronic throttle controls are fitted with programmable hall effect sensors. The signals generated by the electronic throttle controls will allow a smooth and precise engine speed control. This model is a programmable single analog sensor with programmable electronic Idle Validation Switch (IVS).
The output values are programmable and hence can be adapted to the customer’s specifications. Electronic throttle controls can be connected directly to the engine management system, or engine electronic control module.
Mechanical Specifications:
• Two “built-in” return springs
• Additional return spring built in the sensor
• Die cast aluminum treadle and mounting plate
• Complies with FMVSS 124
• Protection classification: IP66 (IP67 if LHE sensor)
• Travel angle: 22°
• Pedal Angle: 30°
• Connector: AMP, 6 pin, waterproof (IP69)
• Supply voltage: Between 5V and 28V DC
