MCS Throttle Position Sensor CAN J1939 0-100% output module (974 845 M002)
Details
MCS Throttle Position Sensor CAN J1939 0-100% output module (Electronic Throttle Position Sensor)

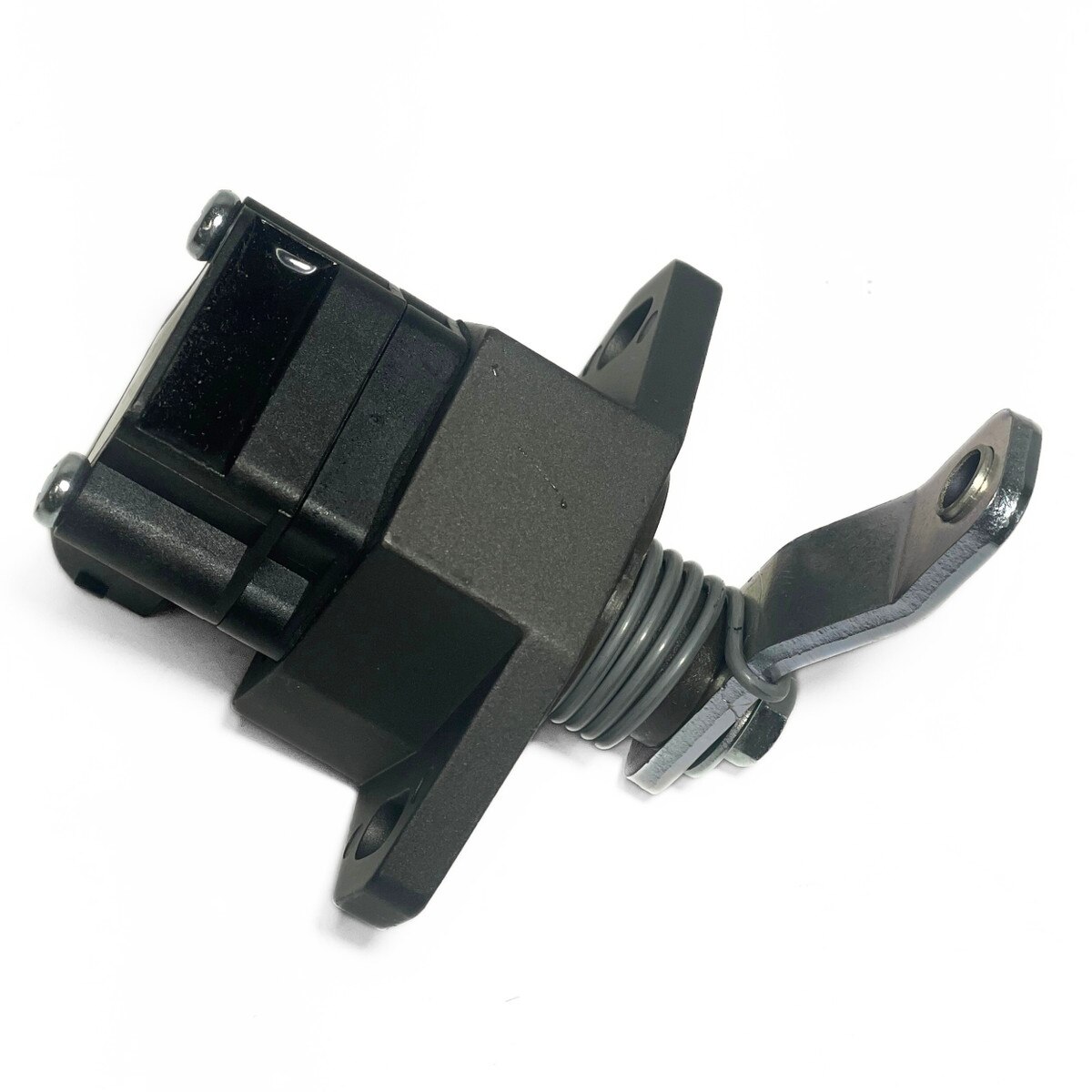

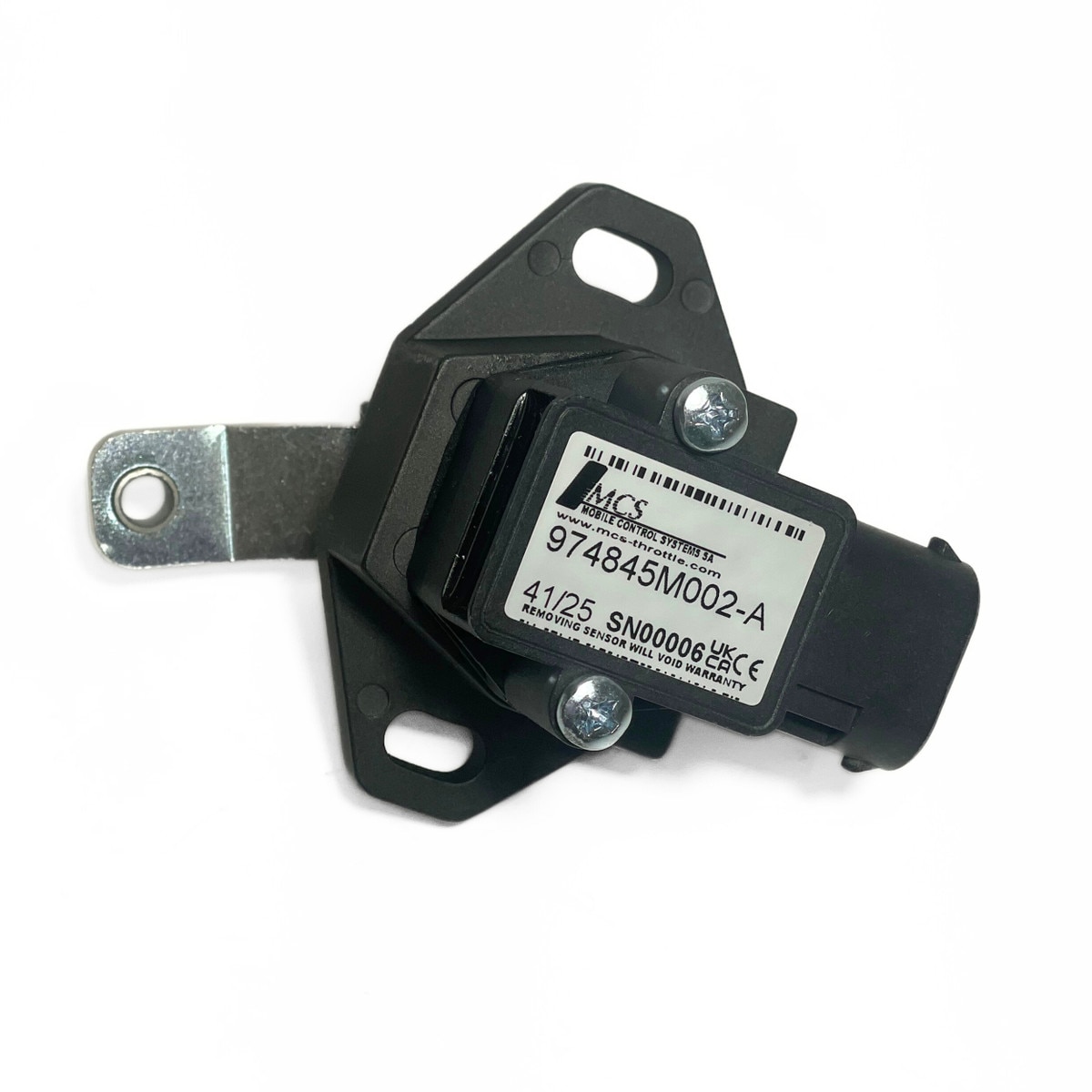

The 974 000 series Electronic Throttle Position Sensor is designed for precise position monitoring in harsh machine industry and outdoor environments.
Featuring a 42° travel angle, die cast aluminum housing, water and dust resistance up to IP69K, and a return spring, this sensor delivers reliable performance across extreme temperatures (-40°C to +85°C operating).
The AMP 6-pin connector and factory programmable output options (analogue, PWM, IVS, current, CAN J1939, CANopen) enable easy adaptation to various applications and custom requirements.
The sensor meets several automotive and industrial standards, including FMVSS 124, FMVSS 302 (ECE R118), 72/245/EEC, and ECE R10.06/E1 03 5754, making it a robust solution for engines and drive-by-wire systems.
MurCal is an Authorized Distributor of Mobile Controls Solutions products.
MurCal provides experienced application and product support, before and after the sale.
