MGC1000 GenSet MPC10-DM-240/480V (75700650) *SPECIAL ORDER ITEM*

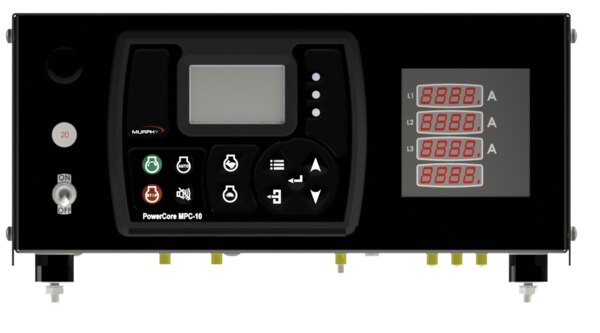

MGC1000 GenSet MPC10-DM-240/480V Generator Control Panel (75700650)

———

*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product

———

Specifications

• MPC-10 Controller
  • Operating Voltage: 8-32 VDC, reverse polarity and load dump protected
  • Operating Temperature: -40° to +85° C (-40° to 185° F)
  • Storage Temperature: -40° to +85° C (-40° to 185° F)
• Total Current Consumption:
  • Power on in stopped state; 117 mA at 12 VDC.
  • Power on in standby mode; 52 mA at 12 VDC.
• Enclosure: Sheet Metal
• Mating Connector: 21 Position, Deutsch HDP26-24-21SE
• Communications:
  • (1) CAN J1939
  • (1) RS485, Modbus RTU
  • (1) USB 2.0B for Programming
• Outputs (8):
  • (2) Relays: 10A, Dedicated B+ (30 VDC @ 10A max.), 30A max aggregate @ 85C
  • (2) Low-side (1A)
  • (2) High-side (1A)
  • (1) Dedicated Alternator Excite (provides Charge Fail Fault if unable to excite alternator)
• Inputs (9):
  • (2) Digital, configurable (high/low)
  • (2) Analog, configurable (4-20 mA, 0-5V, resistive)
  • (1) Frequency, supporting Magnetic pickup (30 Hz - 10 kHz, 2.0 VAC-120 VAC) and Engine Alternator (30 Hz - 10 kHz, 4.5 VRMS - 90 VRMS)
• Dimensions: 4.16 x 6.083 x 10.68 in. (360 x 155 x 271mm) (WxHxD)

Literature:

Operation Manual

MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
