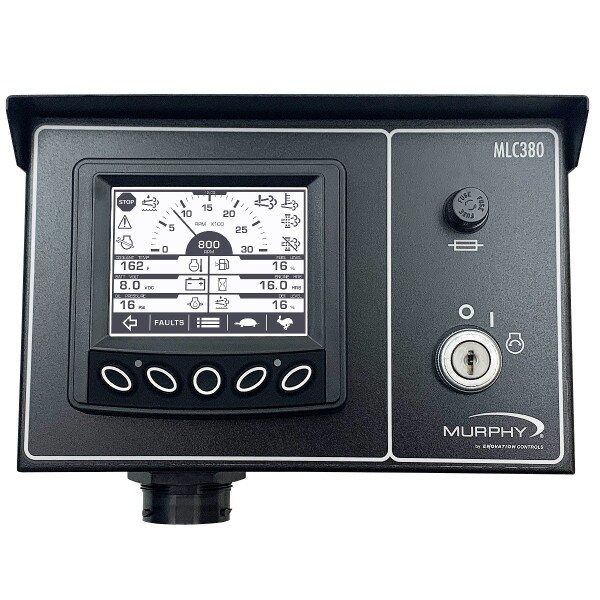

MLC380 PANEL, Elec Engine, 24V-R2 (32700228)
MLC380 PANEL, Elec Engine, 24V-R2 (32700228)
The MLC380 panel has the ability for the software to be fully configured from the front user interface. If the default parameters set by Enovation Controls are not the desired set points, the packager or operator has the ability to change these settings. The configuration tool also allows for the splash screen to incorporate a company logo when powered on.
The flexibility of the MLC380 allows for the same panel to be used across many applications. This provides the operator familiarity with the display and panel in any application. The panel utilizes industry standard Deutsch connectors and is compatible for use on the simplest to the most advanced, fully electronic Tier 4 engines, when used with the correct Murphy Industrial Harness or John Deere OEM engine harnessing.
This panel is available in a rugged powder-coated cold rolled steel enclosure that can be mounted on or near the engine.
Specifications:
- Display: 3.8-inch (97 mm) QVGA monochrome transflective LCD; 320 x 240 pixels
- Keys: 5 tactile push buttons
- LEDs: red, shutdown; amber, warning
- Start Type: Manual
- Start Throttle Type: Manual
Literature:
MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
