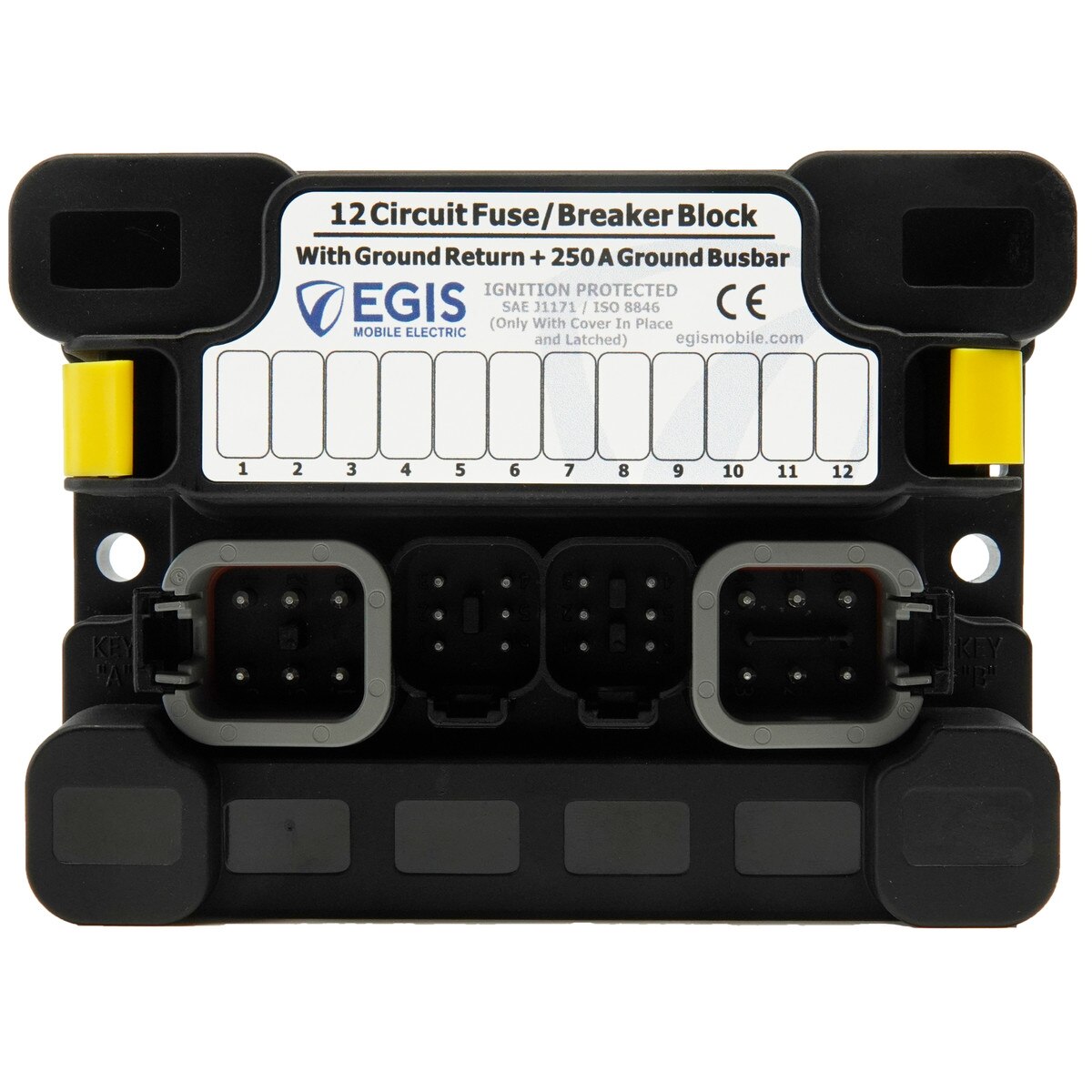

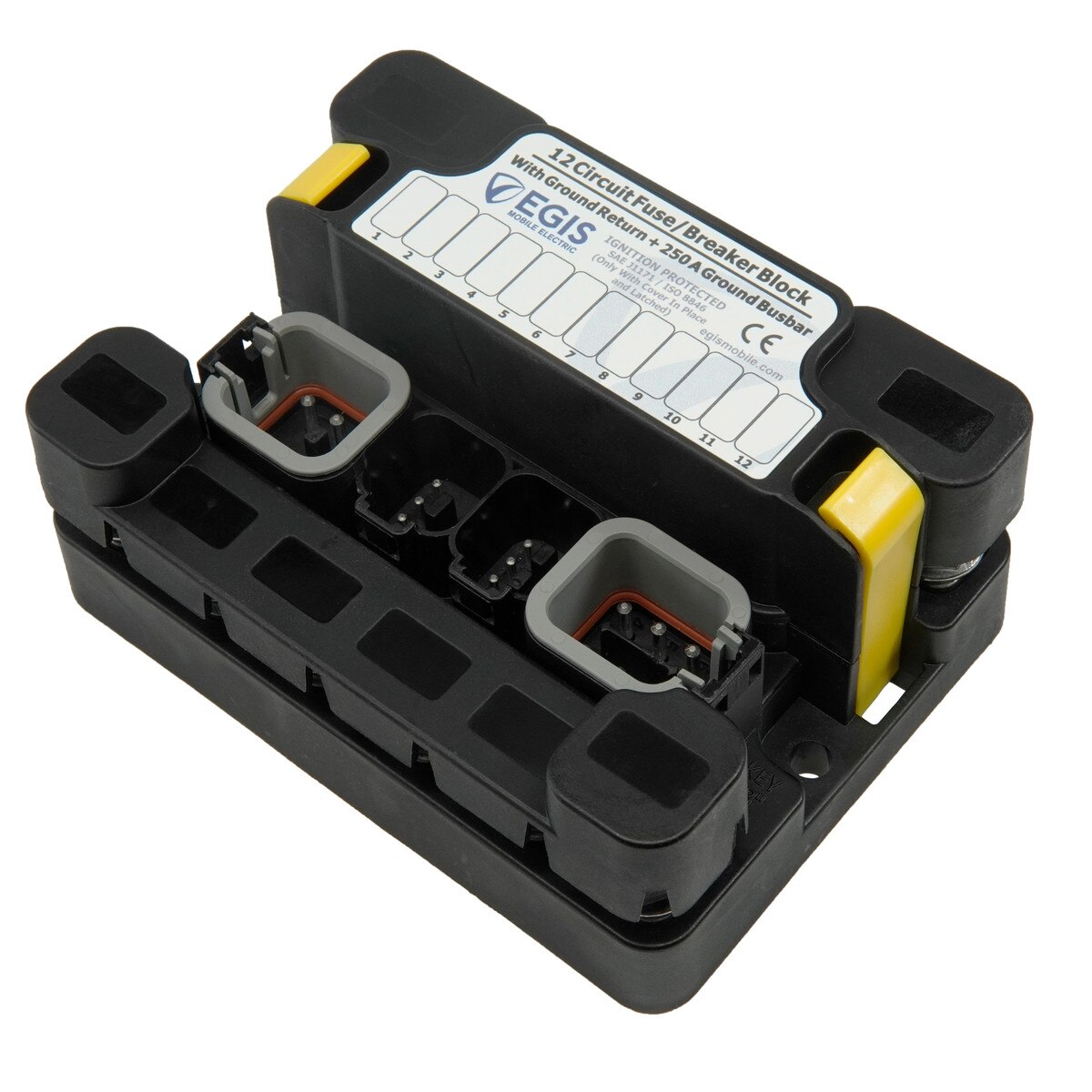

EGIS MT Series 12P Sealed Distribution Block w/Ground Busbar (3412B)
EGIS MT Series 12P Sealed Distribution Block w/Ground Busbar (3412B)

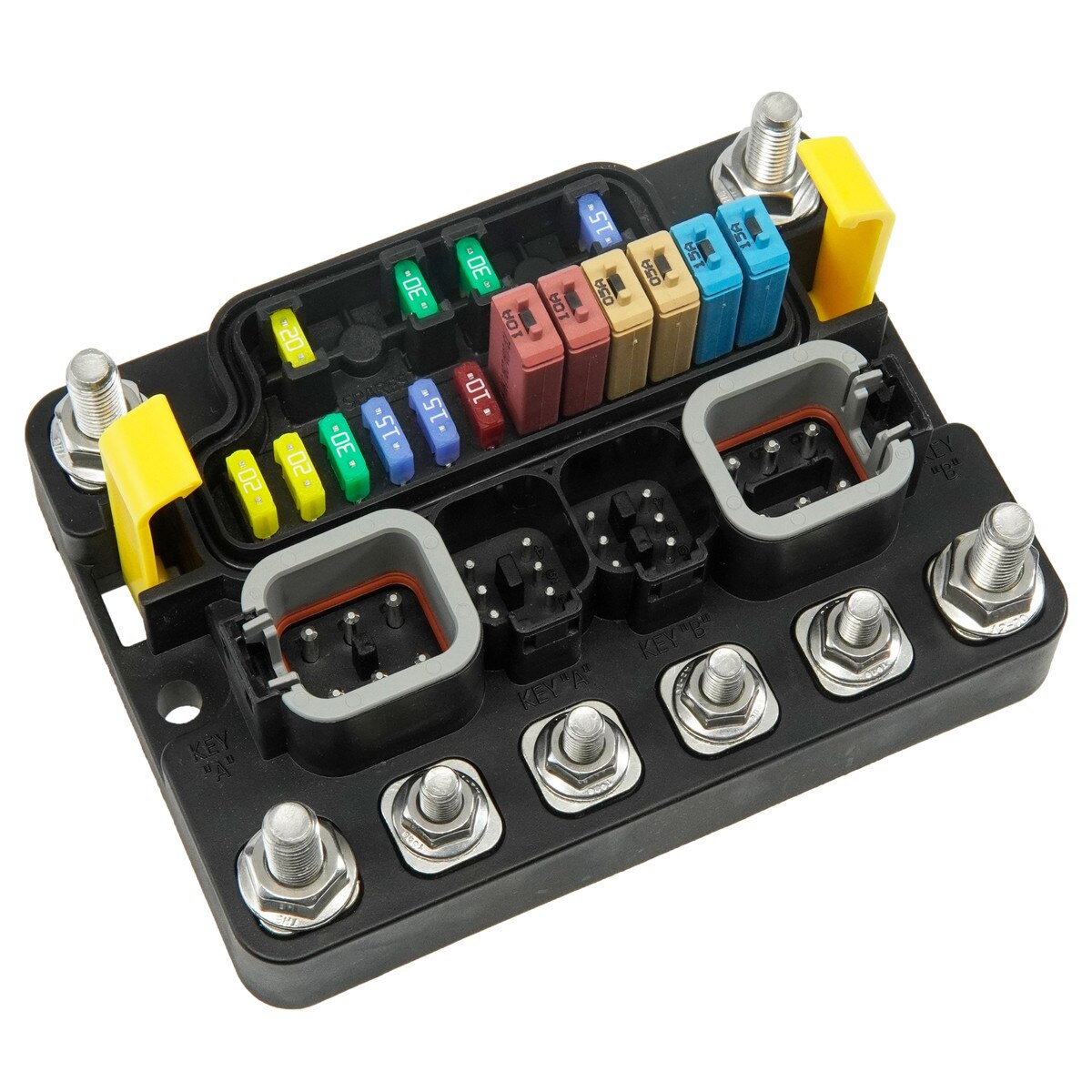

- MT Series Sealed connectorized marine fuse and circuit breaker block is an industry first. With standard integrated Deutsch™ / Amphenol™ power connectors, this innovative solution creates highly reliable marine electrical systems that significantly reduce assembly failures associated with traditional screw terminations during and after boat production.
- Integrated Deutsch/Amphenol Output Connectors (Harsh Environment Industry Standard) from accidental short circuits to frame ground or battery negative, or from overload events.
- Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.

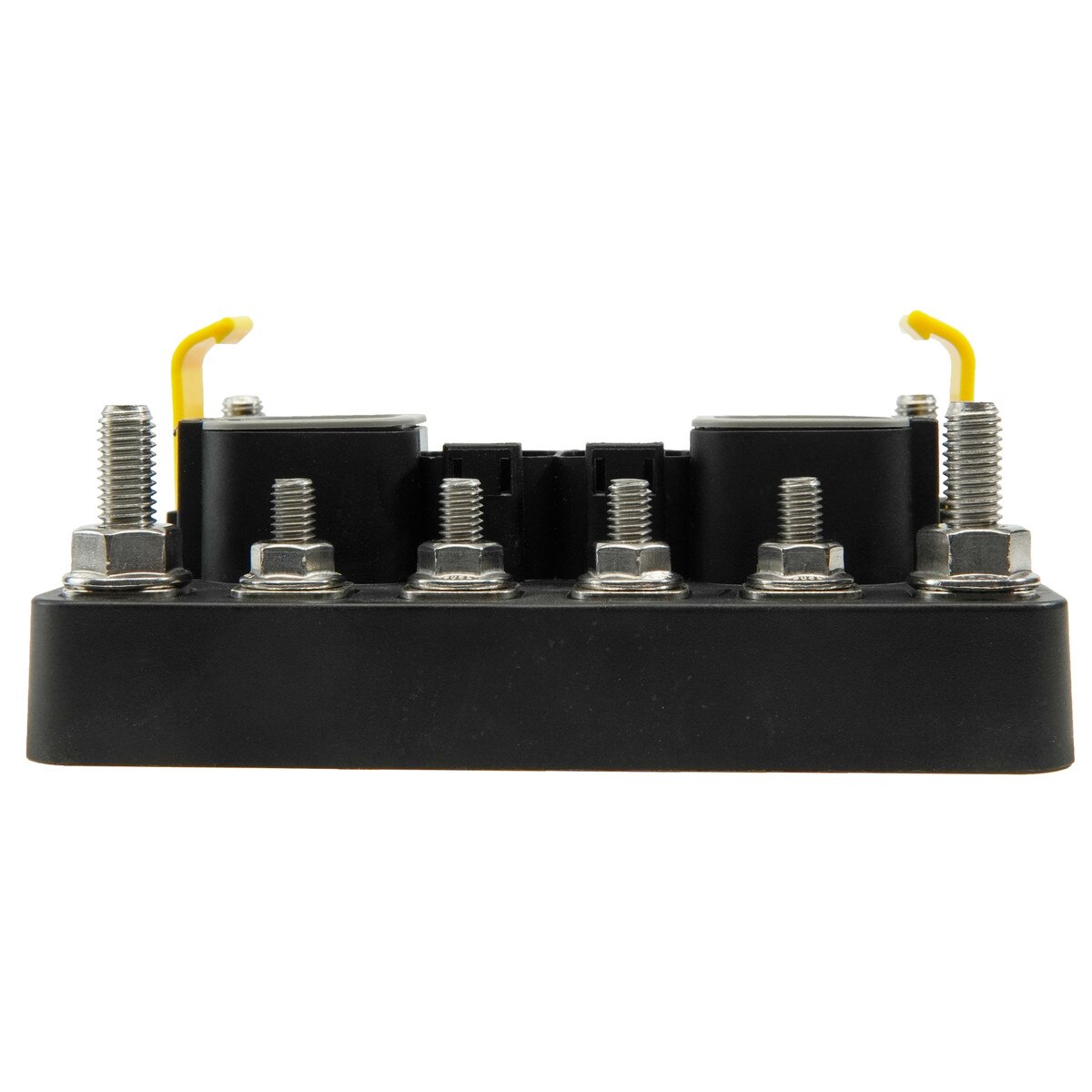

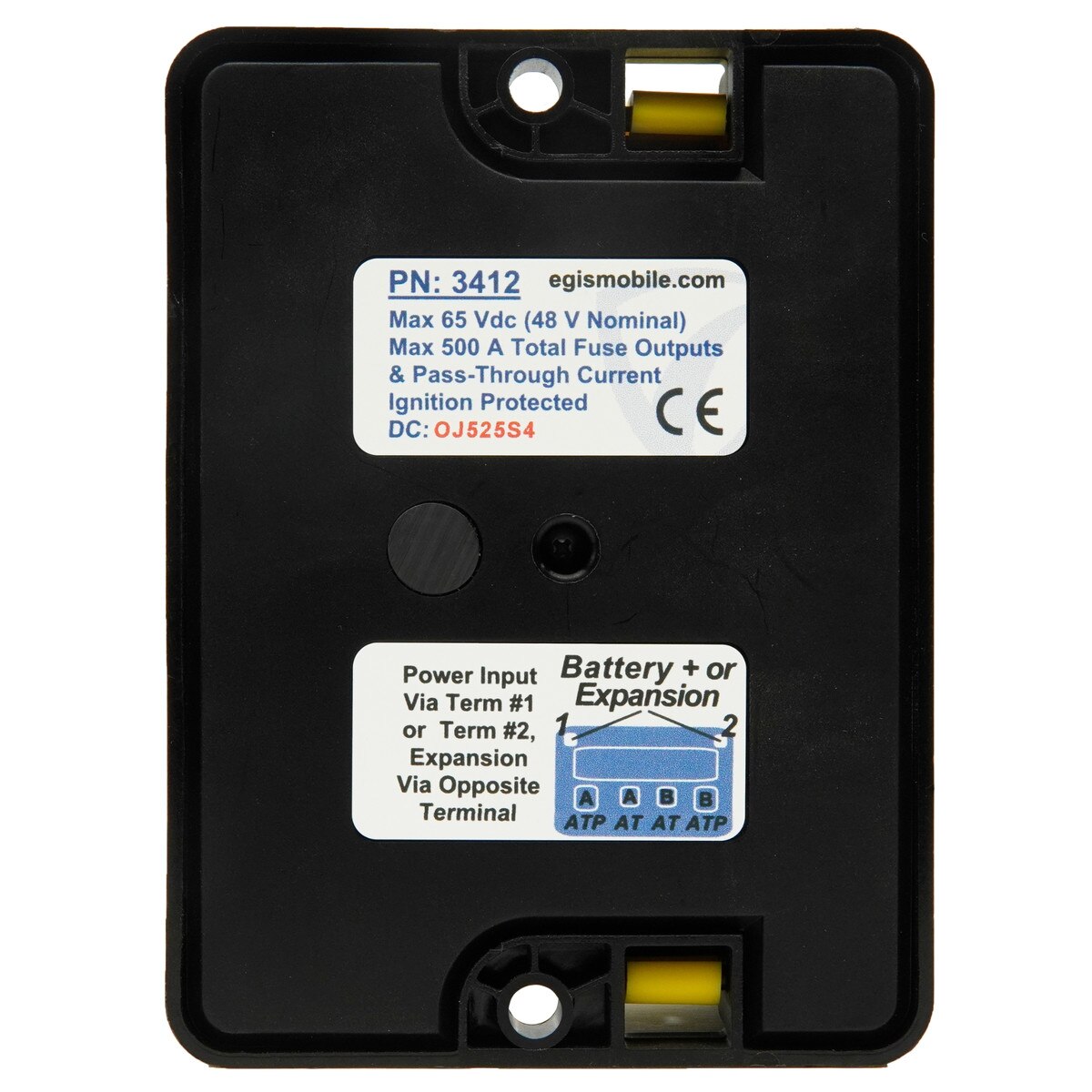

- Bullet-proof Construction: Sealed to IP66/IP69K, high temperature materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- Expandable with Dual, Triple And Quad Link BusbarsFor Plug And Play Install And Complete Switching/Protection Solutions.
- Simple and Robust Installation: Integrated Deutsch Connectors Protects Wire Connections From Moisture And Corrosion, Plug-In Termination Eliminates Screw Terminal Assembly Errors.
Literature:
MurCal is an Authorized Distributor of EGIS Mobile Electric products.
MurCal provides experienced application and product support, before and after the sale.
