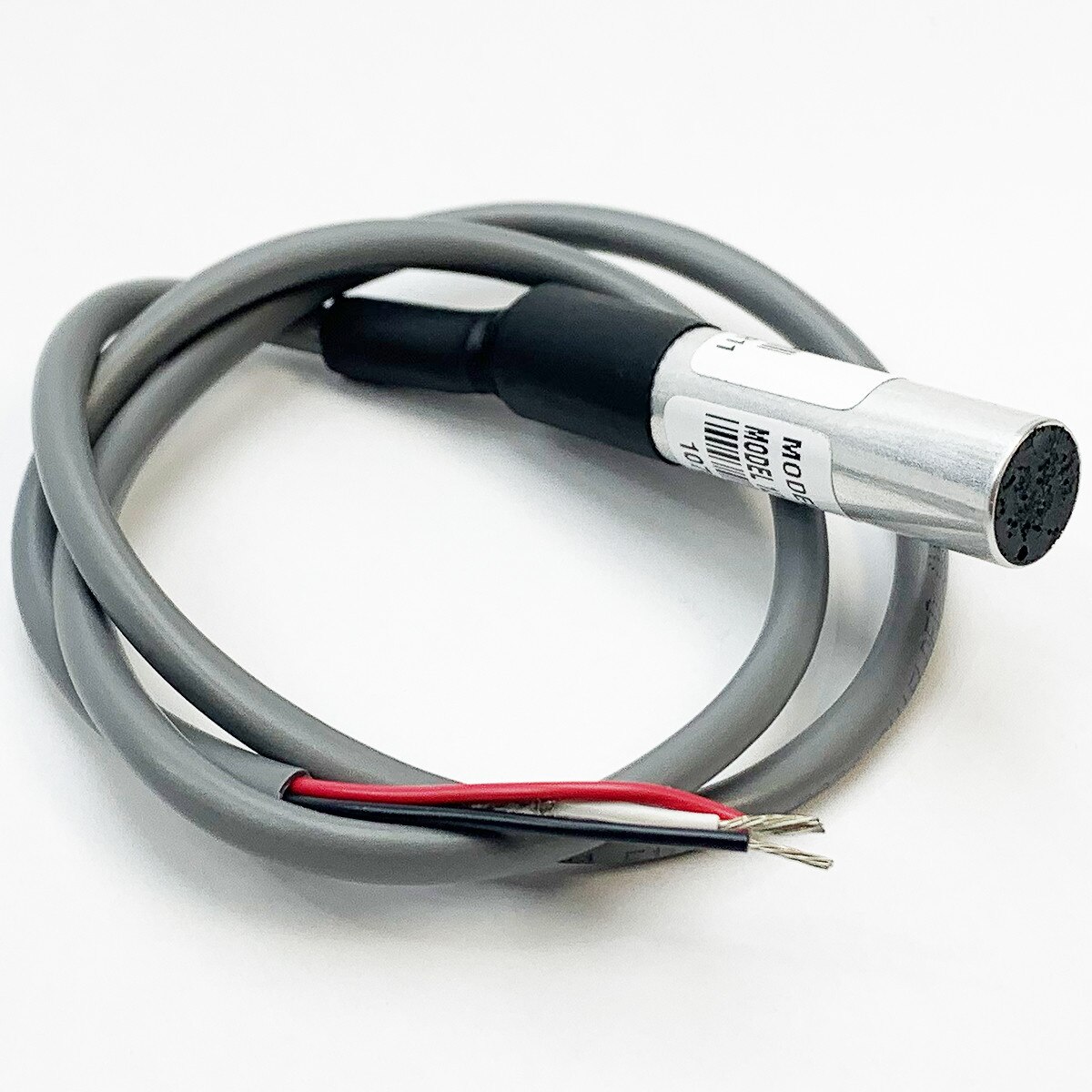

Model 12 Air Temperature Sensor (10707483)
Model 12: 0–115-degree F, 0-5 VDC output Temperature Sensor. (10707483)
The Model 12 Air Temperature Sensor is intended for use in applications that monitor slowly changing temperatures.
The unit gives approximately 0.5°F (0.25°C) resolution when used with an 8-bit analog input.
Applications for the probe include monitoring ambient temperature and signaling wind machines to start or monitoring and maintaining cargo temperatures.
The power input voltage is rated at 9 to 28 VDC with a current draw of 1 mA.
The provided cable is 24" long, 22 AWG, stranded. A 1/2" clamp is provided.
PLEASE NOTE: Model 12 is not suitable to dip into water directly. You may refrigerate it, or wrap it in plastic and put it into ice water so that the sensor is not directly in the water.
Literature:
