MurCal FPT 24 VDC T4F NEF4 NEF6 C9 C13 (6521044)

MurCal FPT 24 VDC T4F NEF4 NEF6 C9 C13 (6521044)

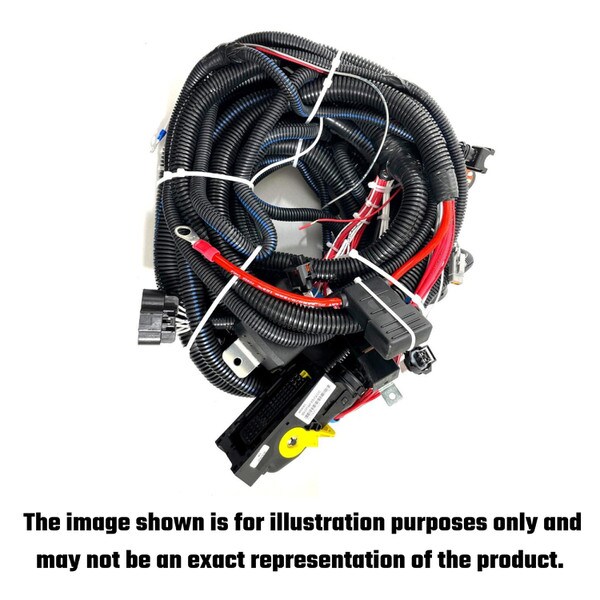

This harness works on the Cursor/NEF series of T4F engines. These include the C13, C16, C18, and C87 as well as the N45 and N67.

Installation Drawing

Actual Models are as follows:

C13

• C13ENTHW20

C16

• C16 480KW 644 HP

C87

• C87ENTHW20
• C87 T4 POWER PACK 349 Hp

N45

• N45ENTHW21.00

N67

• N67ENTHW20

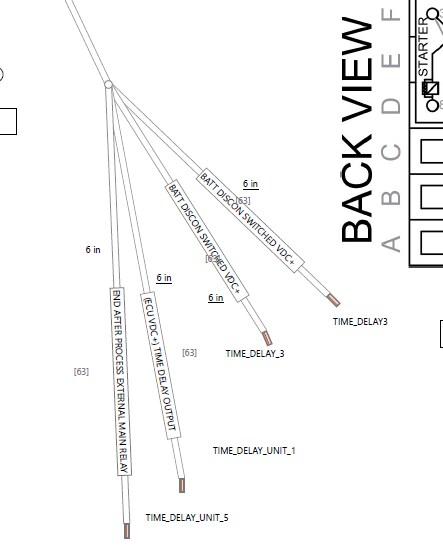

There are two options for wiring this depending on the battery disconnect used:



1. Wire 3-1 gets power from the timer relay and 5 turns the timer on and off. Everything else gets power from the disconnect switch battery positive.
2. Wire 5 is abandoned.  The other wires get battery positive from the disconnect.
