MurCal FPT F34 74HP 12 VDC Engine Harness (6521035)
Details
MurCal FPT F34 74HP 12 VDC Engine Harness (6521035)

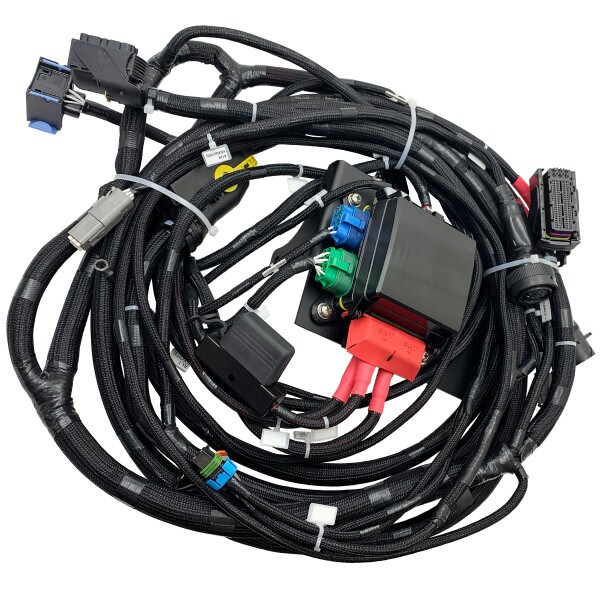

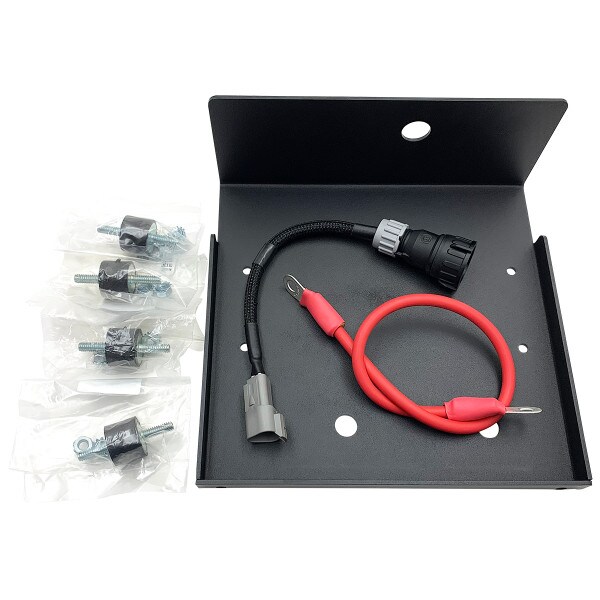

Complete engine harness for the FPT F34 55kW/74HP power unit. Includes PDM with mounting bracket and mounting bracket for ECU, shock mounts, fuses and relays. In addition, it has a 21-pin connector compatible with the MurCal MC series of SmartCommand control panels.
This harness works on the F34 Low horsepower (55kW / 74 HP or lower)
Actual Models are as follows:
- F34SE1W
Connection Drawing
Additional Drawing
21 Pin Connector Breakdown:
Sensors depend on the controller connected.
| 21-Pin | ||||
| A | NC | |||
| B | B+ | 6-Pin Aux Connector | ||
| C | Aux Sensor (Sender) | --------- | 3 | |
| D | Output (Crank) | |||
| E | B- | |||
| F | CAN Shield | |||
| G | ECU Power/Switched Power | |||
| H | Aux Sensor (Sender) | --------- | 5 | |
| J | Alternator Connection | |||
| K | Aux Sensor (Sender) | --------- | 6 | |
| L | NC | |||
| M | NC | |||
| N | Aux Sensor (Sender) | --------- | 4 | |
| P | Aux Sensor (Sender) | --------- | 2 | |
| R | NC | |||
| S | NC | |||
| T | NC | |||
| U | CAN Low | |||
| V | CAN High | |||
| W | Level Switch | |||
| X | Aux Sensor (Sender) | --------- | 1 |
