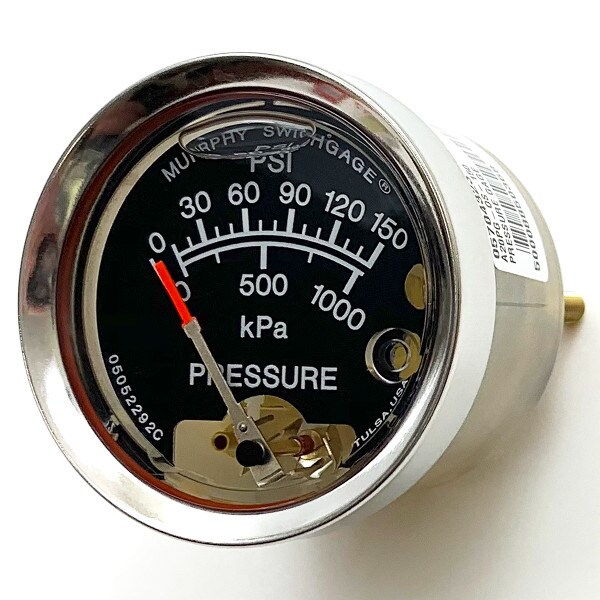

Murphy A20PG-OS-150 2" Pressure Gage; Without Contacts; Oil Sealed (05704323)
Murphy A20PG-OS-150: 2" Pressure Gage; Without Contacts; Oil Sealed; 0-150 psi (05704323)
Swichgage® instruments are built in the USA and have protected engines and equipment in applications such as oil and gas, marine, irrigation, construction and trucking applications to monitor engine lube pressure, water pump pressure, hydraulic pressure, air pressure, and others for more than 80 years.
The A20 Series (2 inch/51 mm dial) Swichgage instruments are diaphragm-actuated, pressure-indicating gages. These rugged, built-to-last instruments are face sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless-steel bezel and O-ring seals.
Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.
Features:
- Dial: White on black, dual USA/UK standard scale (U.S.A. standard scale is psi/kPa; U.K. standard scale is psi/bar)
- Case: Polycarbonate/glass filled, corrosion-resistant; steel mounting clamp included
- Bezel: Polished stainless steel, standard;
- Lens: Polycarbonate, high-impact
- Pointer: Tempered nickel silver
- Oil: Silicon oil
- Ambient Temperature Range: -40°F (-40°C) thru 150°F (66°C)
- Sensing Element: Beryllium copper diaphragm.
- Snap-Switch Rating SPDT, 3 A@ 30 VDC inductive; 4 A @ 125 VAC inductive
- Wiring: A20PE: Number 4 screw terminals; A25PE: Number 6 screw terminals
- Unit Weight: A20 Series: 8 oz. (0.23 kg);
- Unit Dimensions: A20 Series: 8 oz. (0.23 kg)
Literature:
