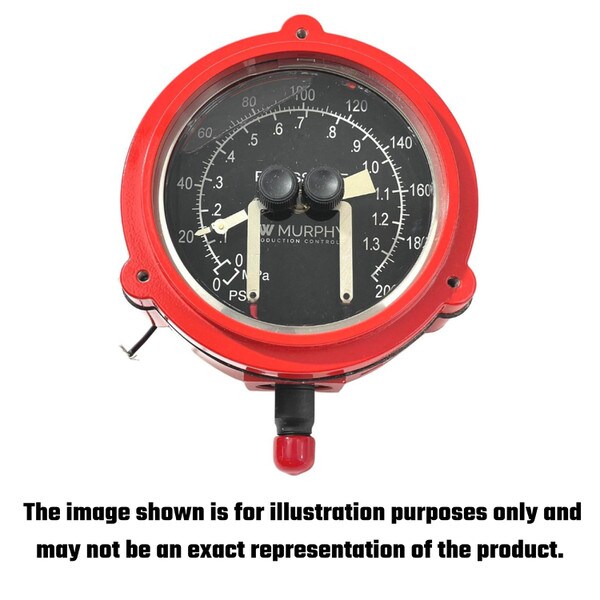

OPLFC-A-200-ES Pressure Swichgage® (05701044) *SPECIAL ORDER ITEM*
OPLFC-A-200-ES: 4.5" Pressure Swichgage®; panel mounting; Brass bourbon tube; 0-200 psi ; Environmentally sealed. (05701044)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product.
———
The Murphy Swichgage OPLFC-A-200-ES is a panel mounting version of the OPLC. It has all of the features of the OPLC except the low limit contact lockout. The lockout must be done externally through the control circuit. The OPLFC is typically used in control panels for compressors, pumps, etc. This version can be environmentally sealed with either the ES or OS options. Contact lead termination is by pigtail wires.
PRODUCT FEATURES:
- Case: Die cast aluminum; weatherproof.
- Dial: 4-1/2 in. (114 mm) white on black, dual scaled psi /kPa. Other dial configurations available. Consult factory.
- Gage Accuracy: ±2% for the first and last quarters of the scale, the middle half is ±1%.
- Geared Movement: 302 and 304 stainless steel.
- Lens: Optically clear polycarbonate.
- Pointer: High visibility with a pointer calibration hub
- Combination Indicating Gage and Critical Pressure Limit Switches
- High and Low Pressure Limit Contacts Are Visible and Adjustable
- Panel and Surface Mount Versions
Literature:
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
