OPLHC-30 Dial Level Swichgage Instrument (15700326)

OPLHC-30: Dial Level Swichgage Instrument; Bronze/Brass; 0-30 ft Tube (15700326)
*Factory calibrated for water - Charges apply for specific gravity



The OPLHC Series Level gages are combination level-indicating gages with adjustable low- and high-limit switches. Limit switches can be wired directly to electric pilot circuits to operate alarms, shut down or start/stop pumps to maintain predetermined levels.

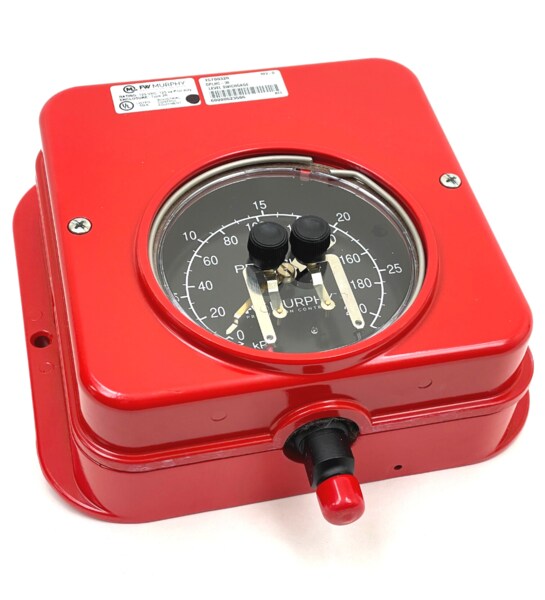

All models feature a 4-1/2 in. (114 mm) dial for easy viewing. Adjustable limit switches are accessible from the front of the gage.



Series include two adjustable, pilot duty, pointer type contacts. Contacts have self-cleaning motion to enhance electrical continuity.


Features:

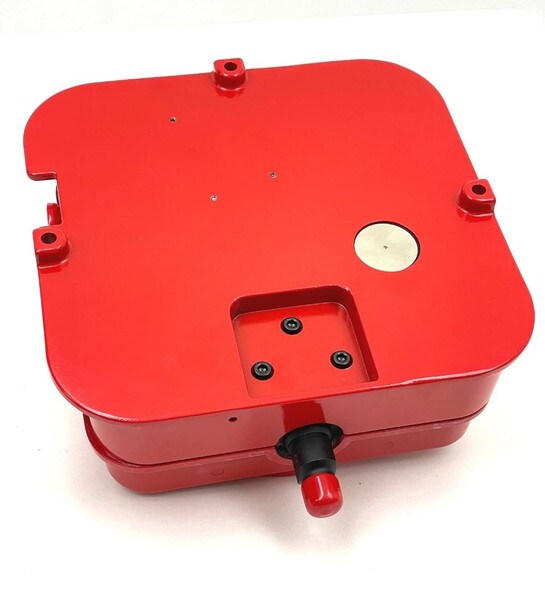

• Enclosure Type (die cast aluminum):
  • Surface mount, square case
• Limit Switch Ratings:
  • Pointer contacts: SPDT center off; 2 A, 30 VDC, 1 A, 125 VAC
• Sensing Element:
  • Bourdon tube, bronze/brass (standard)
• Process Connections: 1/4 NPT Male
• Geared Movement: 300 series stainless steel
• Accuracy (standard calibration is for water):
  • ± 2% first/last quarters of scale, 1% middle half of scale

Literature:

Sales Bulletin
