OpenView™ S70 Display, 7in Touch CODESYS (78700735)
OpenView™ S70 Display, 7in Touch CODESYS (78700735)

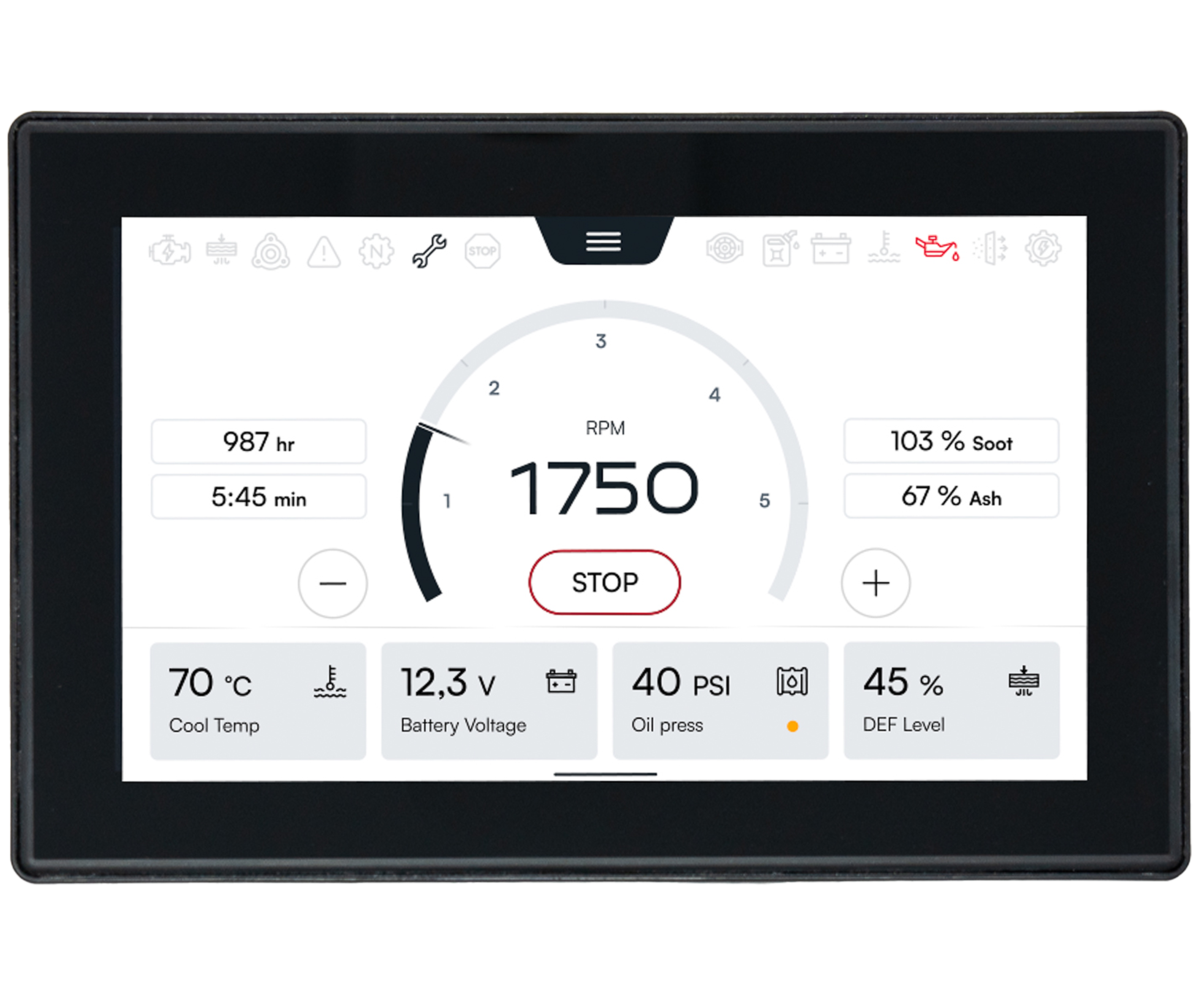

The OpenView S70 CODESYS Edition is a full-color, rugged 7-inch touchscreen display designed to integrate vital engine, transmission, and diagnostic information into an easy-to-read operator interface. Part of Enovation Controls' "Select Series," it aims to bring industrial-grade durability and high performance to the market at an accessible value.
Crucially, this specific model comes with the Linux-based CODESYS runtime pre-enabled and licensed straight from the factory, requiring no additional license keys. It does not use Enovation's traditional OpenPV toolchain, making it a "zero-friction" solution tailored specifically for CODESYS developers.
Key Hardware & Technical Specifications
- Display & Touch: A bright, 7-inch RGB IPS LCD screen (1024 x 600 resolution) with 720 nits of brightness for excellent full-sunlight readability. It features a glass-front, projected capacitive (PCAP) touchscreen that is glove-friendly.
- Computing Power: Powered by a 32-bit dual-core Arm Cortex A7 processor (650 MHz) running Linux, backed by 512 MB of DDR3 RAM and 4 GB of flash storage.
- Built-in I/O (Inputs/Outputs): * (2) Resistive inputs (0–5 VDC)
- (2) Digital/Analog inputs (0–36 VDC)
- (2) 500 mA switched low-side outputs
- Robust Connectivity: Includes integrated Wi-Fi (802.11 b/g), Bluetooth (v4.2), a USB-C port (with a locking connector), an RS-485 serial port, and a CAN bus port (supporting CAN 2.0B, J1939, and custom protocols). Optional configurations also offer Dual CAN.
- Electrical: Operates on a wide 6–36 VDC voltage range and includes built-in reverse polarity protection.
Environmental & Rugged Styling
Built to endure punishing industrial and outdoor conditions, the S70 features:
- IP65 Weather Protection: Sealed against dust and water intrusion.
- Wide Operating Temperature: Functions reliably from -20°C to +70°C (-4°F to 158°F).
- Industrial Certifications: Fully tested for severe shock (IEC 60068-2-27) and heavy vibration (IEC 60068-2-64), alongside standard agricultural and industrial EMC/EMI compliance.
Ideal Applications
It is typically integrated into the operator cabs or instrument panels of specialized machinery, such as agricultural equipment, material handling systems, mobile hydraulics, and heavy engine-driven industrial platforms.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
