Openview™ S50 Display (78700713)

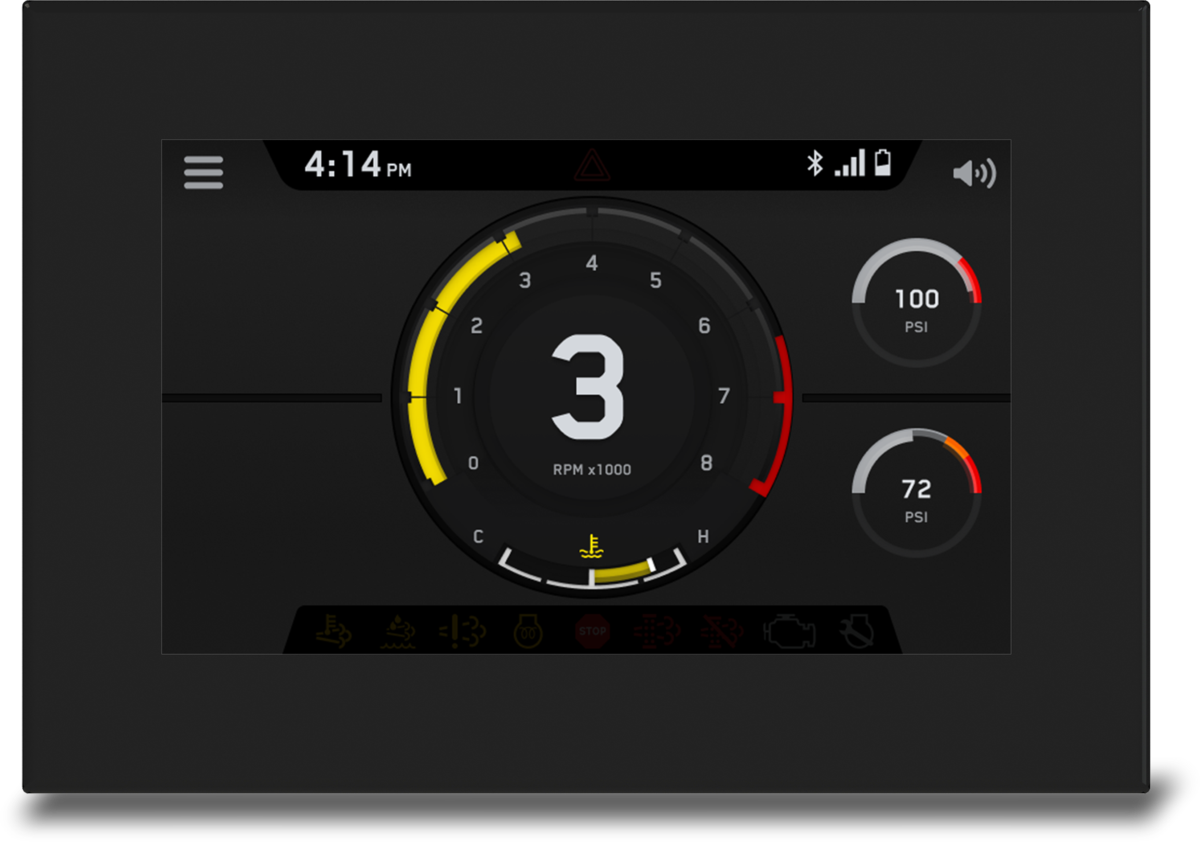

Openview™ S50 TouchScreen Display (78700713)
Extensive capabilities in a compact package
Like its cousin, the PowerView 500, the OpenView S50 is a full-color configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface.
The OpenView S50 is easily viewed in full sunlight and contains an optically bonded LCD inside its IP65-rated case to keep it safe in most weather environments. The OpenView S50 comes standard with a glass-front, glove-friendly touchscreen suited to a wide array of applications.
The OpenView S50 anchors the all-new Select Series, retaining the ruggedness, customizability, and excellent performance Enovation Controls’ displays are known for, but with an unprecedented value proposition posed to expand full-color rugged displays to new markets.
Features:
- Computing
- Processor: A7 dual-core processor @ 650 MHz (32-bit)
- Software: Linux
- Storage: 4 GB flash memory
- RAM: 512 MB DDR3-SDRAM
- Display
- Display Area: 5-inch (108 mm [H] x 64.8 mm [V])Type: RGB IPS LCD w/ LED backlight 24bit color
- Resolution: 800 x 480
- Contrast Ratio: 800:1
- Brightness: 720 cd/m² (720 nits)
- Touch Panel: Projected capacitive (PCAP) with glove touch
- Communication
- CAN: (1) CAN
- Serial: (1) USB-2.0, (1) RS-485
- USB: (1) Type-C with Locking Connector
- WiFi: 802.1 b/g
- Bluetooth: BT v4.2
- Electrical
- Operating Voltage: 6 – 36 VDC, reverse polarity protected
- Inputs
- (2) Resistive 0–5 VDC
- (2) Digital/Analog 0–36 VDC
- Outputs
- (2) 500 mA switched low-side
- Environmental
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -30°C to +70°C
- Protection: IP65
- Vibration: IEC 60068-2-64
- Shock: IEC 60068-2-27
- EMC/EMI: ISO 14982:2009, ISO 13766:2018
Literature:
MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
