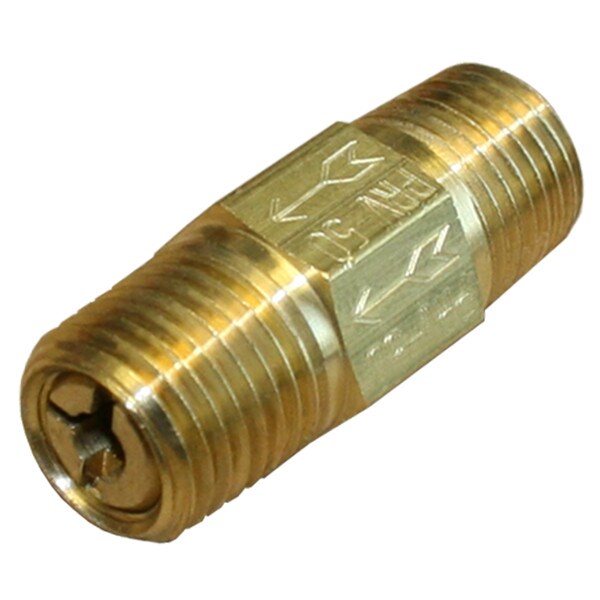

PRV50 Diesel Fuel Pressure Relief Valve (55700267)
PRV50: Diesel Fuel Pressure Relief Valve, 1/4" NPT threaded male connections (55700267)
The PRV50 Diesel Fuel Pressure Relief Valve is designed to relieve overpressure in a fuel system, usually caused by the closing of a solenoid fuel valve.
The PRV50 is an in-line, one-way valve for the prevention of overpressure damage to fuel filters and their housings. This pressure relief valve operates in conjunction with a Murphy SV Series shutdown valve; after the SV closes, a rapid high-pressure build-up caused by the fuel pump can occur. The PRV50, mounted in a fuel return line after the filter, will open to relieve pressure buildup.
The PRV50 Diesel Fuel Pressure Relief Valve has a 1/4" NPT threaded male connection on each end for connecting to fuel line fittings or hoses. The valve has a solid brass body, stainless steel seal and a stainless-steel spring. Opening pressure is 17 psi (117 kPa). Fully opened pressure is rated at 25 psi (172 kPa). Static pressure is 150 psi (1.03 MPa). The valve measures 1-1/2" in length.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
