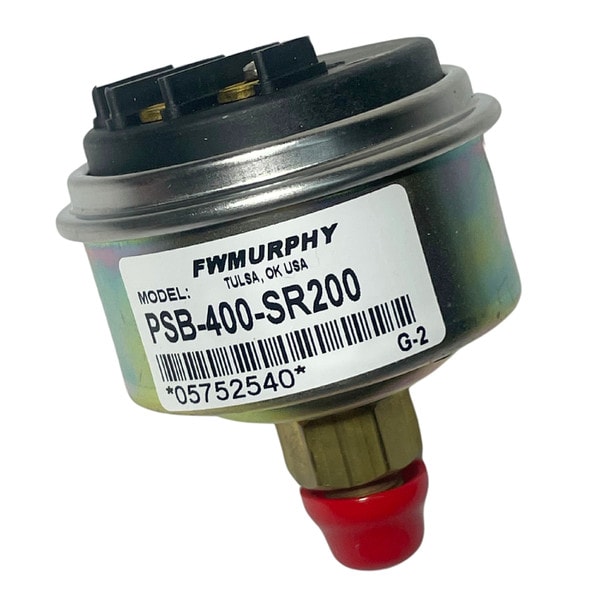

PSB-400-SR200 Pressure Gage (05752540-SR200)

PSB-400-F150 Direct Mount Pressure Gage; 0-400 Psi. Factory Set To Rising 200 (05752540-SR200)

The PSB switch is a direct mount switch for critical pressure points. It has one limit contact that can be used to activate an alarm, actuate indicator lights or shutdown equipment.
The construction of this instrument is the same as our time proven SWICHGAGE®.
A precision machined brass mounting plate and port captures a high-quality stamped beryllium copper diaphragm. The single pole, double-throw (SPDT) snap-switch is operated directly from the diaphragm for quick acting and positive switching. Trip point is factory preset to rise 200.

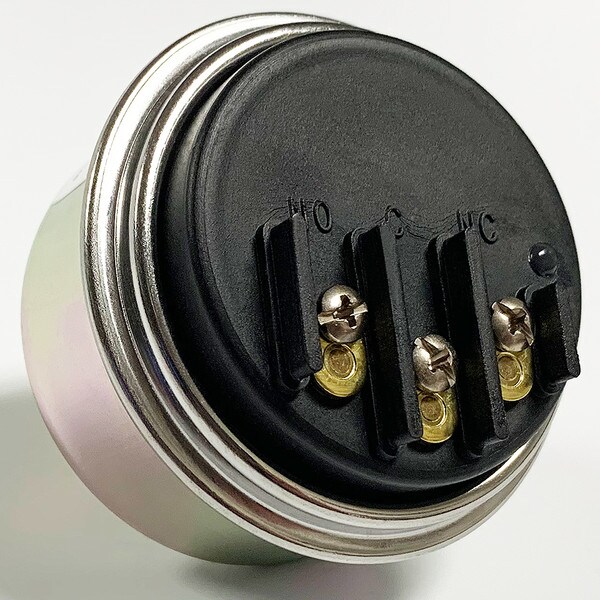

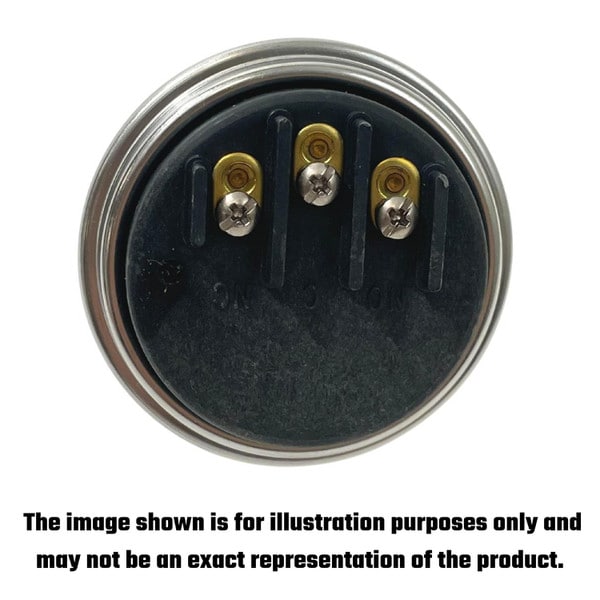

Housing is weather sealed to prevent entry of moisture, dust, etc. A glass-filled nylon terminal block with quick screw terminal connections gives the PSB switch a real advantage in industrial engine applications. The PSB is ideal when reading is not desired, but pressure is critical to operational efficiency.

Literature:

Sales Bulletin


MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
