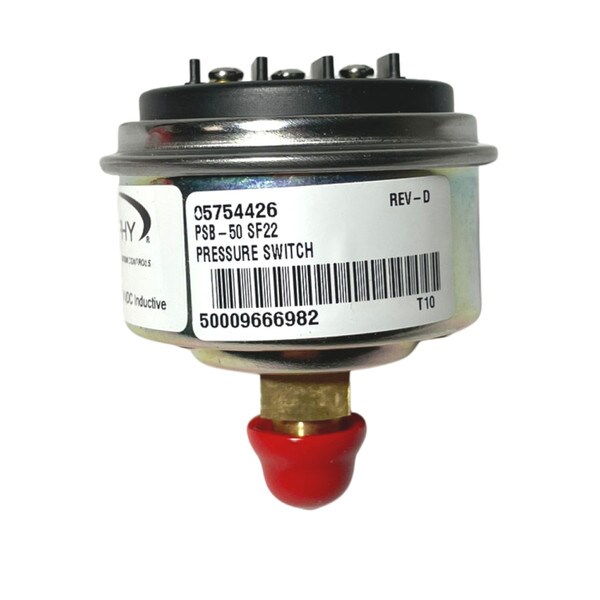

PSB-50-Direct Mount Pressure Switch - Specify (05754426-SF22)

PSB-50-Direct Mount Pressure Switch-Specify  (05754426-SF22) -
 ***NOTE!!! Specify trip point

The PSB switch is a direct mount switch for critical pressure points. It has one limit contact that can be used to activate an alarm, actuate indicator lights or shutdown equipment.
The construction of this instrument is the same as our time-proven SWICHGAGE® . A precision machined brass mounting plate and port captures a high quality stamped beryllium copper diaphragm.
The singlepole, double-throw (SPDT) snap-switch is operated directly from the diaphragm for quick acting and positive switching. Trip point is factory preset according to your specifications.

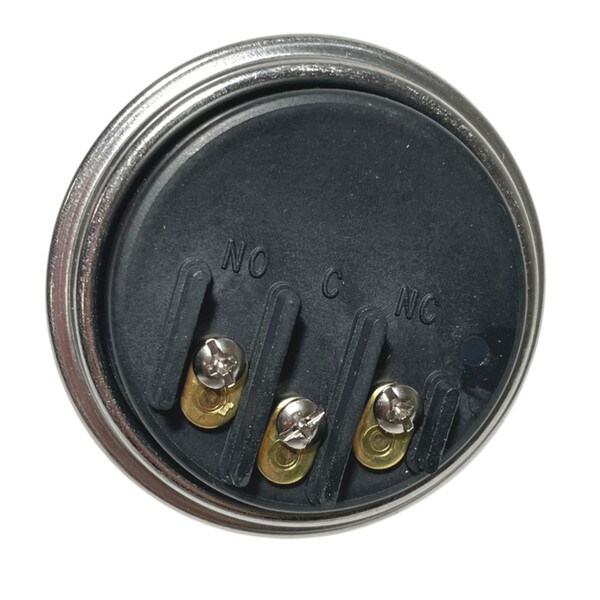

Housing is weather sealed to prevent entry of moisture, dust, etc. A glass-filled nylon terminal block with quick screw terminal connections gives the PSB switch a real advantage in industrial engine applications.
The PSB is ideal when reading is not desired, but pressure is critical to operational efficiency. Intended for use in general purpose nonclassified areas.

Applications

Engine Lubrication • Water pumps • Compressors • Oil field systems • Irrigation systems • Construction Equipment • Mobile Equipment • Marine engines • Generators

Features

Fits all engine applications • SPDT snap-switch • Activates indicator lights, alarms, or shut down equipment • Time-proven SWICHGAGE® construction • Easy wiring terminal block • Steel housing specially coated to resist corrosion • Factory preset to your specifications

Literature:

Sales Bulletin

MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
