PT2 - On Delay One Shot Timer 30A/12V (5604B)
PT2 - On Delay One Shot Timer 30A/12V (5604B)

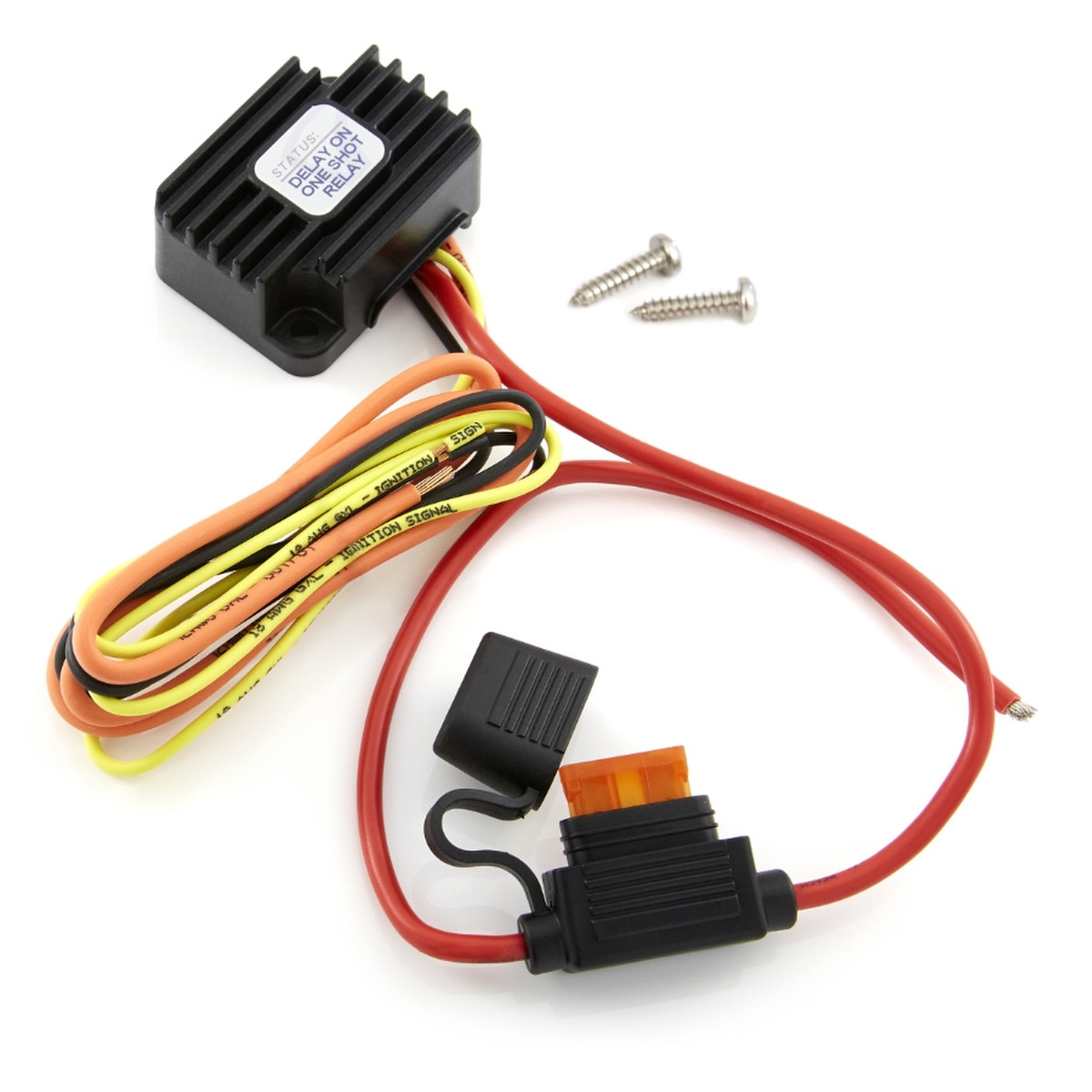

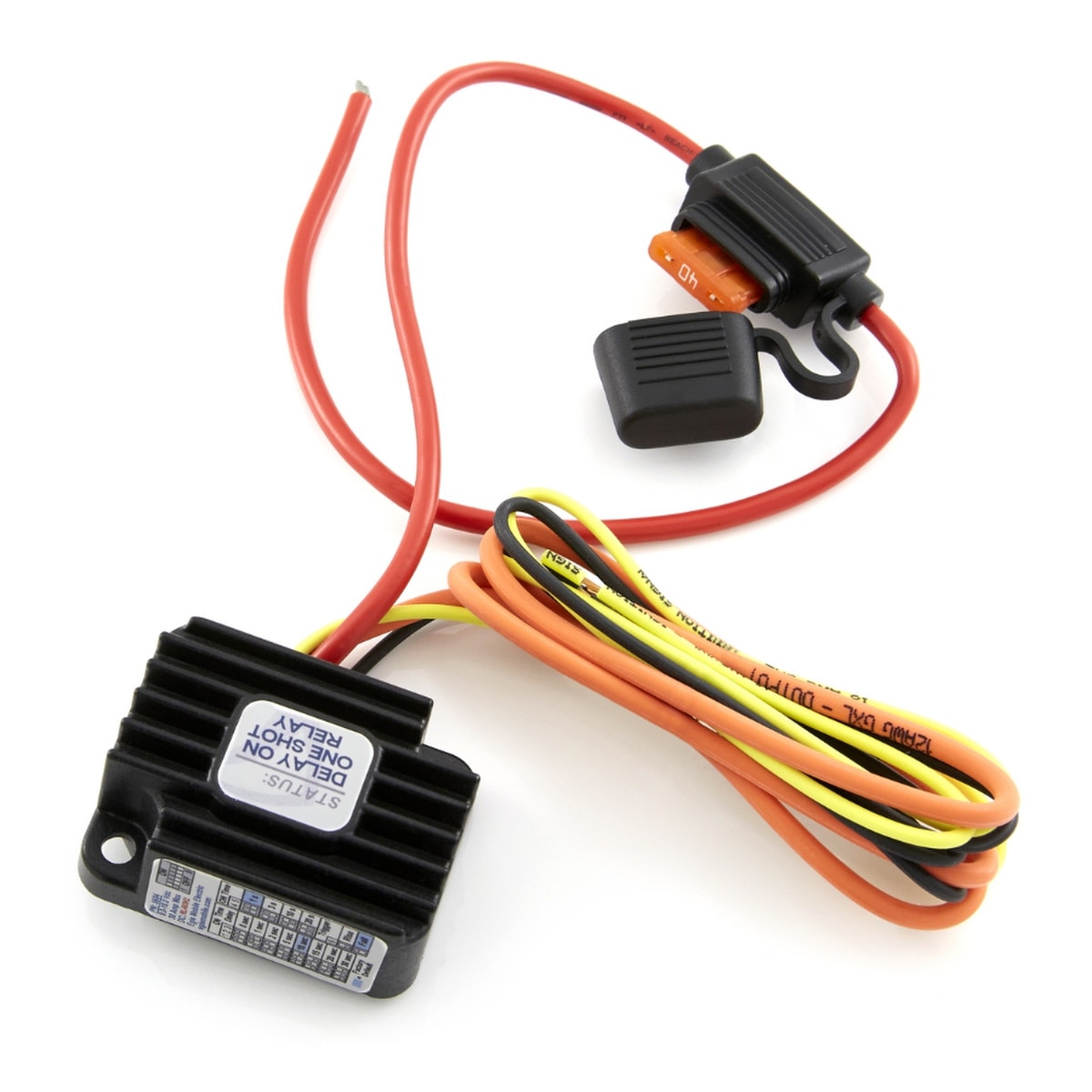

The Egis Mobile Electric 5604B PT Series One-Shot Relay is a mission-critical solution for maximizing operational readiness by preventing dead batteries caused by add-on equipment. By effectively eliminating vehicle downtime, this 30A solid-state relay ensures that power reaches essential gear after the engine is turned off or a shift ends, automatically timing out to protect the battery’s charge. Its ultra-low off-state current draw of only 1.3mA and an optional low-voltage disconnect feature provide a robust defense against power drain, ultimately saving on long-term maintenance costs.
Designed for maximum flexibility and ease of use, the 5604B features an adjustable time delay (from 0 to 200 seconds) to meet specific system timing requirements. Installation is streamlined thanks to color-coded 12 and 18-gauge wiring for quick identification, while the on-board multi-color LEDs offer instant diagnostic feedback. Whether you are managing a fleet or a single utility vehicle, this Egis relay provides the reliable, intelligent power management needed to keep your equipment ready and your batteries healthy.
Literature
Video
MurCal is an Authorized Distributor of EGIS Mobile Electric products.
MurCal provides experienced application and product support, before and after the sale.
