PV1100-MC: PowerView® 1100-T w/SmartCommand (78700636)
PV1100-MC: PowerView® 1100-T Touch, Non-connected, Landscape w/SmartCommand (78700636)
A Powerful, Affordable, and Configurable Solution
MurCal’s PV1100-MC Display with SmartCommand™ provides a simple and robust software solution for display and monitoring of industrial, on-highway and marine engines. By combining Enovation’s PowerView® 1100 display with our proprietary SmartCommand™ software configuration package, you have the ability to customize the critical information needed to accurately monitor your engine’s performance straight out-of-the-box.
Feedback was gathered from our clients regarding the struggles they’ve faced integrating PowerView® displays with their engine control projects. Our response was to create a product centered around these 4 key points:
• a software solution that is affordable and easy to understand
• a smart design that offers simple, yet flexible, configuration options
• a way to avoid customized programming that can be costly and difficult to comprehend
• a helpful, easy to use Set-Up Wizard that walks you through a series of configuration screens to connect your engine to your new control display in minutes.
SmartCommand™ software was developed with the end-user in mind. SmartCommand™ effortlessly connects an affordable, configurable control solution to your engine control project.

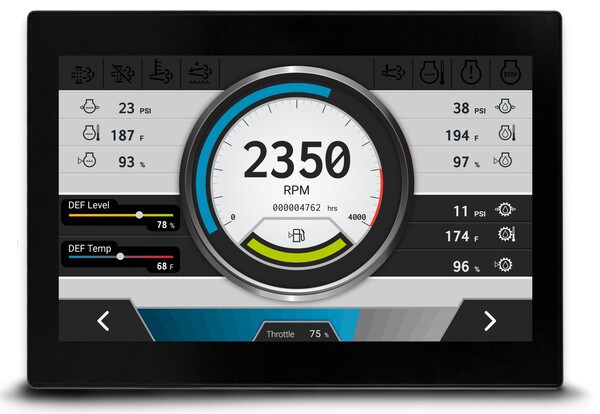

SmartCommand™ is pre-loaded on Enovation’s PowerView® 1100 display, a full-color touchscreen display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. The display is easily viewed in full sunlight and contains an optically bonded LCD inside an IP67-rated case to keep it safe in all-weather environments. A high-speed processor allows it to boot quickly as well as seamlessly showcase graphics, transitions and videos. The glove-friendly touchscreen and rugged design make it a perfect solution for all types of environments and applications. When combined with SmartCommand™ the display is unbeatable.
When you receive your new PV1100-MC Display with SmartCommand™, simply connect the display and follow the Set-Up Wizard to pre-configure the display’s software to your specific engine. Select set-points, gauges, parameters, and viewing modes from a predefined list on the display itself. Most gauge screen layouts with analog, linear and/or digital gauges can be configured to display a variety of parameters from the CANbus and local display I/O. There are several indication lights, which may be viewed across the top of the screen layout, for failure warnings and emissions compliance alerts. SmartCommand™ provides the ability to monitor alarms and faults, attach up to three NTSC compliant video camera feeds, view service reminders, enable password security, and toggle between day & night mode brightness levels.
For marine applications, SmartCommand™ includes software support for use as a J1939 to NMEA 2000 gateway, providing a seamless experience for displaying engine information on Simrad, Furuno, Raymarine, and Garmin display products. Parameters like trip fuel used, trip hours, and total fuel used are included.
MurCal’s PV1100-MC Display with SmartCommand™ is the most powerful and affordable solution for the customization of the Enovation PowerView® 1100 display available on the market today. An interface design, paired with a full-color display, that utilizes thoughtful screen layouts and eye-catching color schemes to clearly organize engine information and make errors or warnings visible during operation. Simply unpack the box, mount, connect, configure, and enjoy!
Murphy brings a whole new experience to your applications with the PowerView® 1100-T. This large 10.6-inch display features a high-speed processor that allows you to bring even more into your application.
In addition to providing vital engine information, the PV1100 packs an infotainment hub in the cab with media playback from your phone via USB. It also boasts AM/FM stereo, Bluetooth and Wi-Fi connectivity.
The full-featured, configurable display integrates engine, transmission and diagnostic information into an easy-to-read operator interface. The 10.6-inch screen, with glove touch, can easily be viewed, even in full sunlight. The display’s bonded LCD and rugged design make it a perfect solution for all types of environments and applications.
The PV1100 is available in portrait or landscape configurations. Customization of the display can be accomplished quickly via graphical programming or scripting with the PowerVision Configuration Studio® software, purchased separately.
Specifications:
- Computing
- Processor: Renesas® R-Car M2 with Arm® Cortex®-A15 dual-core processor @ 1.5 GHz (32-bit)
- Operating System: QNX® Realtime Operating System
- Storage: 8 GB flash memory
- RAM: 512 MB DDR3-SDRAM
- Graphics: Renesas graphics processor
- Display
- Screen Size: 10.6 inches (231.36 mm × 138.82 mm)
- Type: LVDS TFT LCD with LED backlight, 24-bit color
- Resolution: 1280 × 768
- Contrast Ratio: Typ. 1000:1
- Brightness: 1000 cd/m2
- Surface: Anti-glare
- Touch Panel: Projected capacitive (PCAP) with glove touch
- Hardware
- Real Time Clock: Available with battery backup
- Connectors:
- (2) AMPSEAL 23 pin (main)
- (1) AMPSEAL 35 pin (on some variants)
- (1) M12 5 pin (on some variants)
- (1) USB pigtail
- (1) Antenna jack (on some variants)
- Video Input: (3) NTSC/PAL (single channel viewable)
- Communication
- CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
- Serial: RS-485 serial (Modbus: master or slave)
- USB: USB 2.0 full speed host
- Electrical
- Operating Voltage: 6 – 36 VDC, reverse polarity protected
- Outputs:
- (1) 500 mA switched low-side
- (1) Frequency output (2Hz – 3KHz)
- Inputs:
- (3) Analog 0 – 5 VDC, 4-20 mA, resistive, 10-bit resolution
- (5) Discrete digital, active-high
- (1) Frequency in (2Hz – 10kHz) 5V pk-pk min, 49V pk-pk max
- Environmental
- Operating Temperature: -40˚C to +70˚C (-40˚F to +158˚F)
- Storage Temperature: -40˚C to +85˚C (-40˚F to +185˚F)
- Protection: IP66 and IP67, front and back, for outdoor use
- Vibration: 3.9 Grms (10 – 350Hz), 3 axes (ISO 15003)
- Shock: ±50G in 3 axes
- EMC/EMI: SAE J1113, ISO 13766, CE per 2014/30/EU
