PV25-AB PowerView Engine and Diagnostic Display (78700541)

PV25-AB: PowerView Engine and Diagnostic Display (78700541)

The PowerView 25 is an economical and compact engine and diagnostic display. This J1939-compliant device is simple to install, provides electronic engine parameter data, matches the PowerView line of rugged displays, and can be powered by 12-volt or 24-volt systems.

The PV25 is equipped with two push buttons to quickly access a convenient menu. In addition, a back-lit graphic display and two LEDs indicate Active-Fault Alarm or Shutdown Status. Active and Stored Fault messages display the SPN (Suspect Parameter Number), FMI (Failure Mode Indicator) and the OC (Occurrence Count) using the SAE J1939 protocol. The PV25 displays up to 20 standard J1939 parameters in standard or metric units. AB = A20 Black Bezel

Images

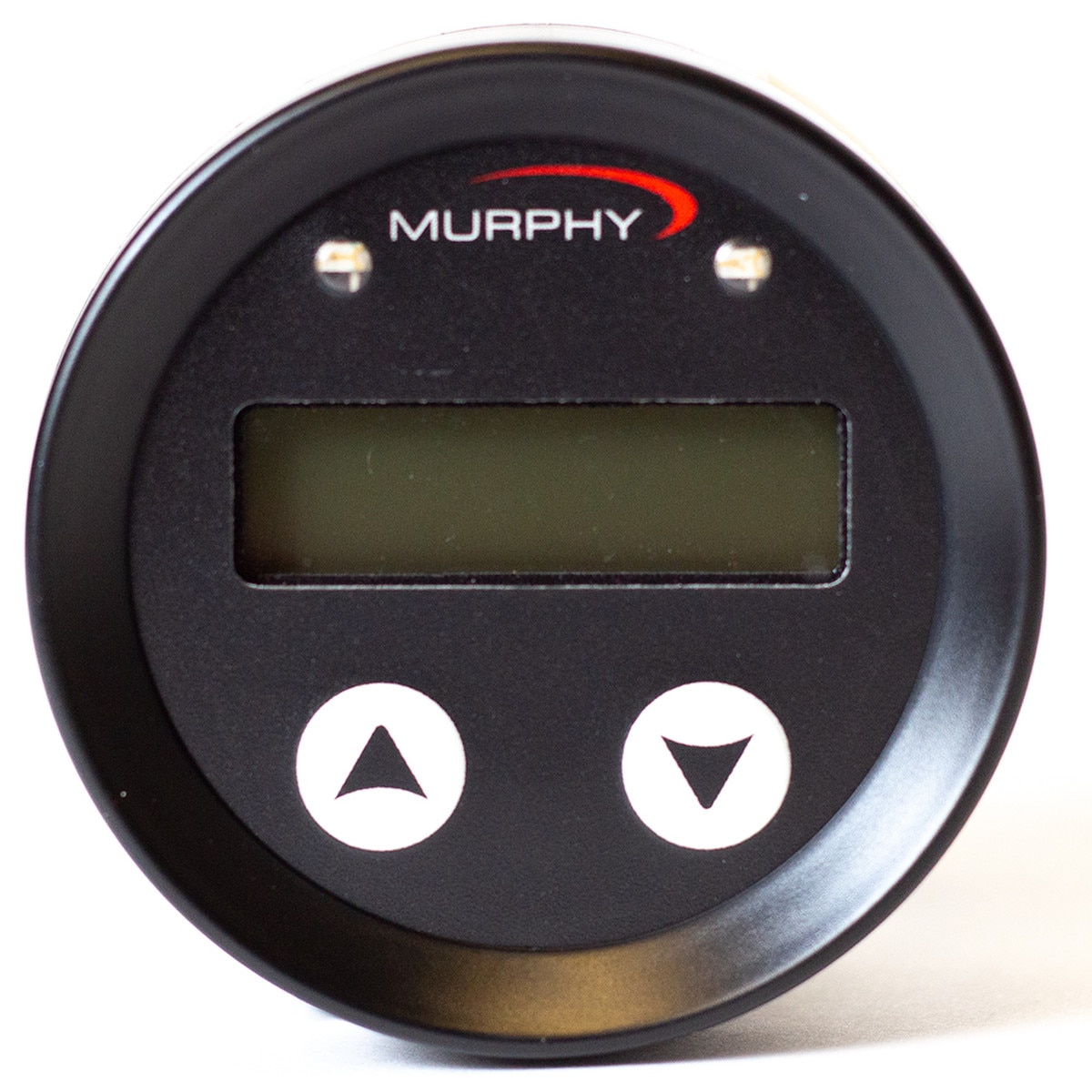

1. Larger Front View

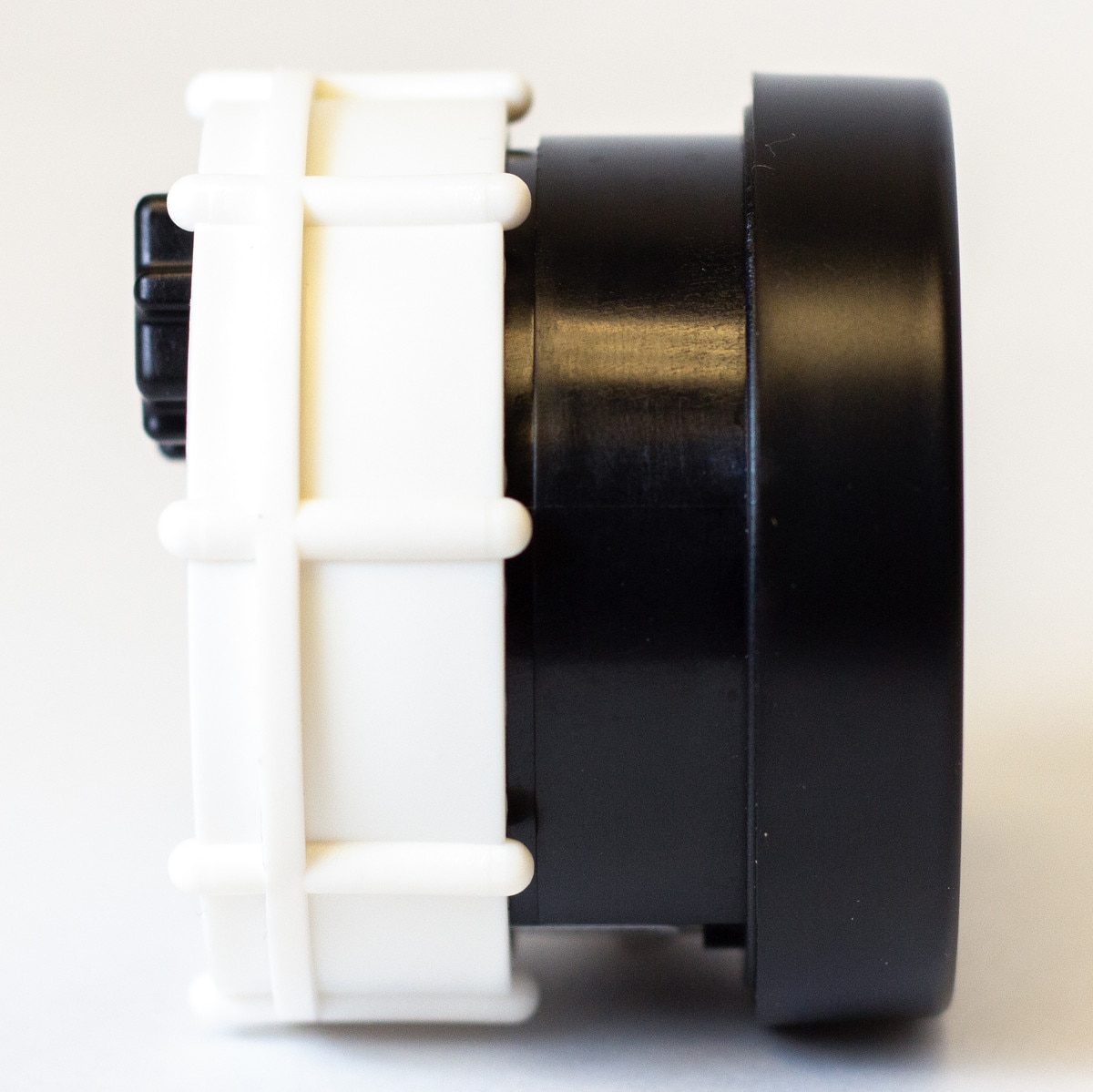

2. Larger Side View

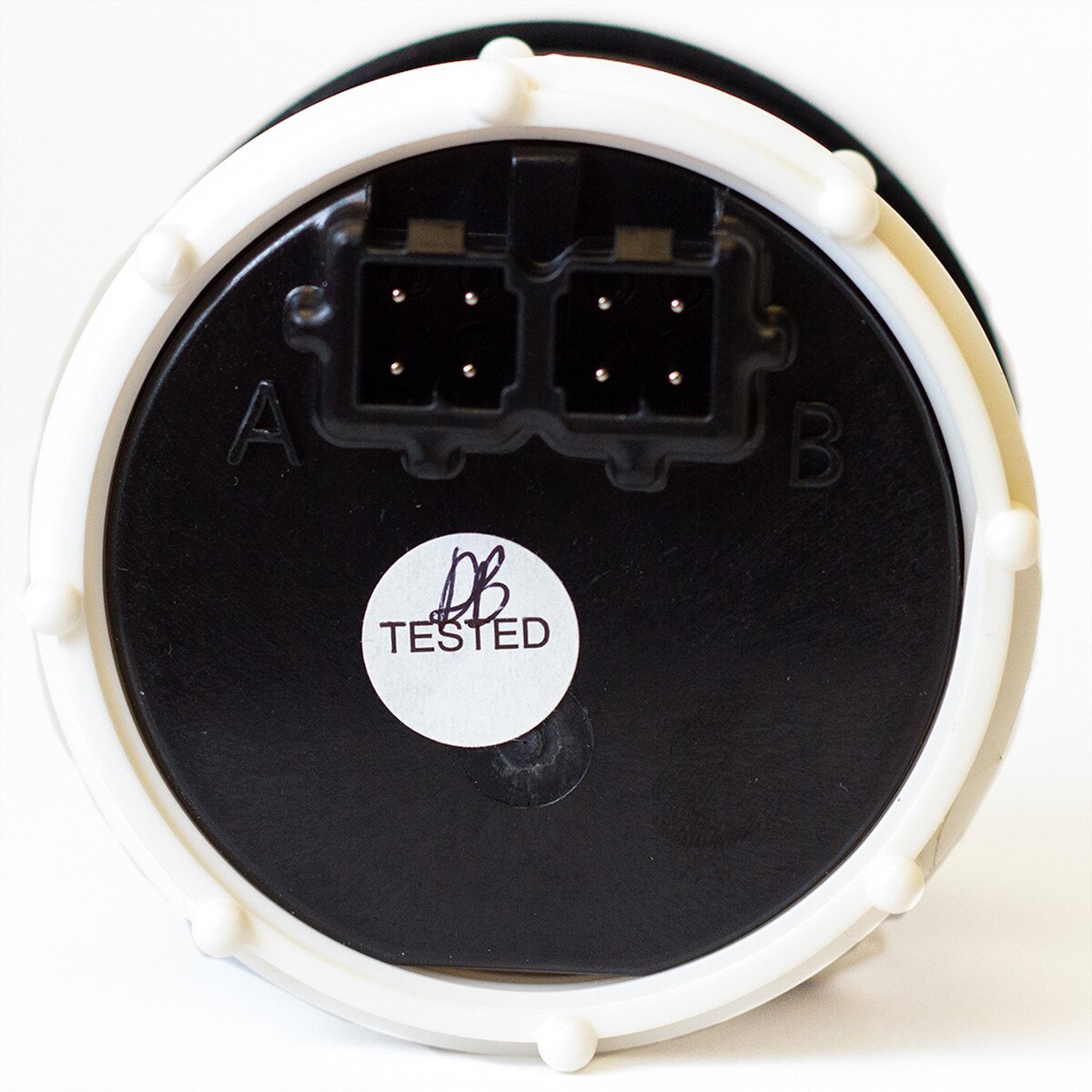

3. Larger Back View

Literature

1. Sales Bulletin
2. Sales Flyer
