PV350-R2: Standard PowerView™ (78700616) *SPECIAL ORDER ITEM*

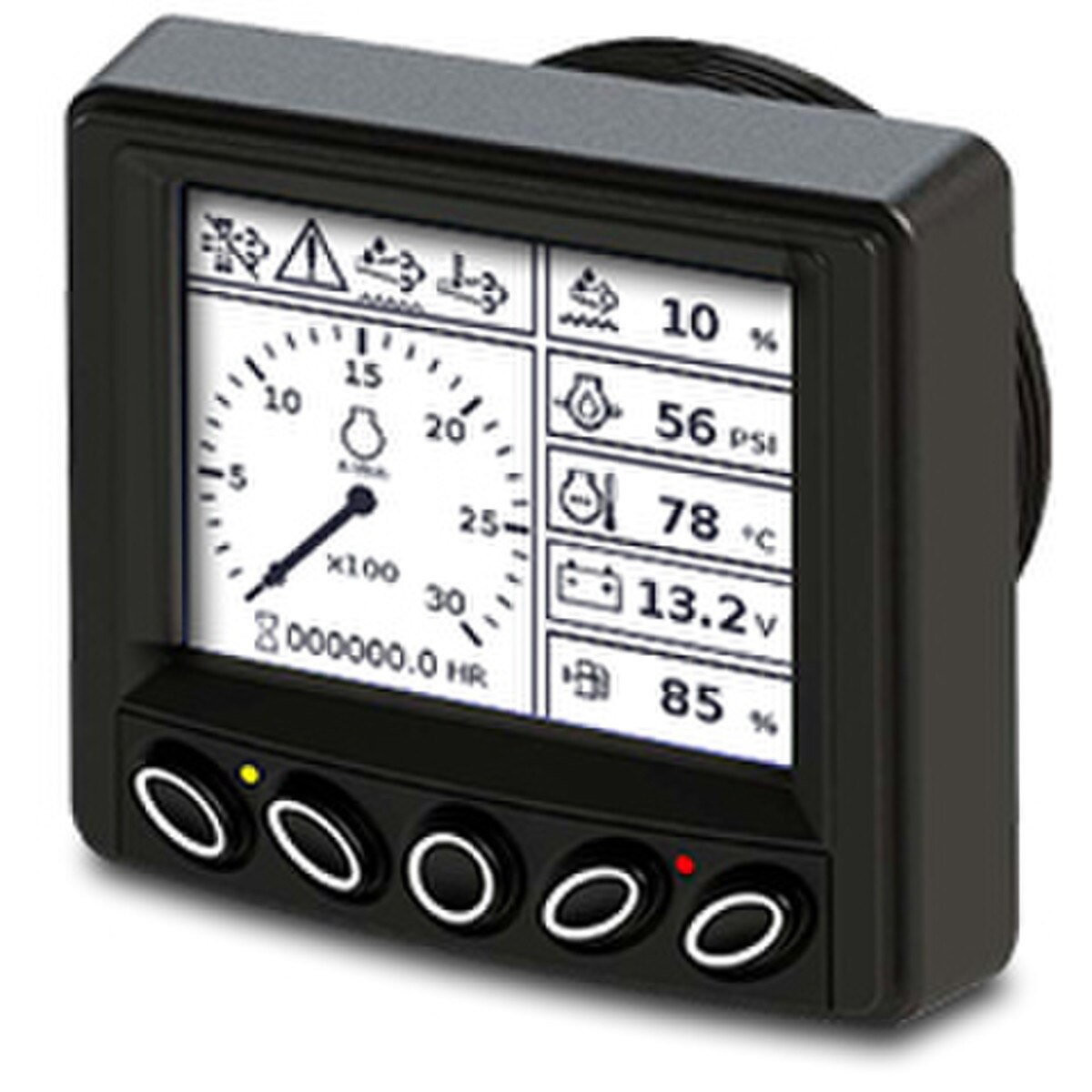

PV350-R2: Standard PowerView™ Engine Instrumentation Module w/3.8-inch QVGA monochrome LCD. (78700616)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 10 Weeks For Delivery Of This Product
———
MURPHY'S POWERVIEW™ 350 IS A CONFIGURABLE, MULTIFUNCTION DISPLAY FOR ELECTRONIC AND MECHANICAL ENGINES
The PowerView™ 350 features a robust, multifunction display for advanced monitoring of multiple engine and machine parameters on an easy-to-read 3.8-inch (97mm) QVGA monochrome LCD. The display is capable of handling sophisticated engine diagnostics as well as basic engine alarm/shutdown.
This panel is equipped with five tactile push buttons to quickly access a convenient menu. In addition, a backlit, heated graphic display and two LEDs indicate active-fault alarm or shutdown status.
The PV350 display is customizable using the PowerVision Configuration Studio® , an intuitive tool designed to make personalization simple. Using the software tool, users can tailor basic graphics, designate screen layout and define custom parameters.
Murphy's Configuration Studio™ software is available for purchase as an option. It is NOT included with your purchase of the PV350 display.
Features:
• For Use on Mechanical & Electronic Engines
• Easy-to-Use Configuration Software (optional add-on)
• Tier 4/Euro Stage IV Ready
• Set Point Alarm and Shut-down Control
• CAN J1939 Communications
• Supports Multiple Languages Technical Specs:
• Display: 3.8” (97 mm) QVGA (320 x 240 pixels); monochrome transflective LCD with white LED backlight, heater and real-time clock
• Viewing Angle: ±55° horizontally; +45° / -60° vertically
• Keys: 5 tactile pushbuttons
• Alarms: Red and amber warning LEDs; capable of set points-triggered output for external piezo buzzer or shut-down relay
• Inputs: (1) resistive analog
• Outputs: (1) 500 mA; switched low-side
• Certifications: CE mark Environmental:
• Operating Voltage: 6-36 VDC; reverse polarity protected
• Operating Temperature: -40°C to 85°C (-40° to 185°F)
• Storage Temperature: -40°C to 85°C (-40° to 185°F)
• Sealing: IP 66 and 67
• Vibration and Shock: 7.86g random vibe (5-2,000Hz) and ±50g shock in three axes
• EMC/EMI: 2004/108/EC and 2006/95/EC directives EN61000-6-4: 2001 (emission) EN61000-6-2: 2001 (immunity) EN 50121-3-2 and EN 12895
• SAE J1113/2, 4, 11, 12, 21, 24, 26 and 41 Communications:
• (2) CAN 2.0B; second CAN port is NMEA 2000 isolated
• J1939 and NMEA 2000 protocol
• Proprietary messaging Connectors: Deutsch DT series 6 pin M12 for NMEA 2000 (micro-C)
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
