PV780T-VT: Video Touch PowerView™ (78700564)

PV780T-VT: Video Touch PowerView™. Engine Interface Instrumentation Module. (78700564)

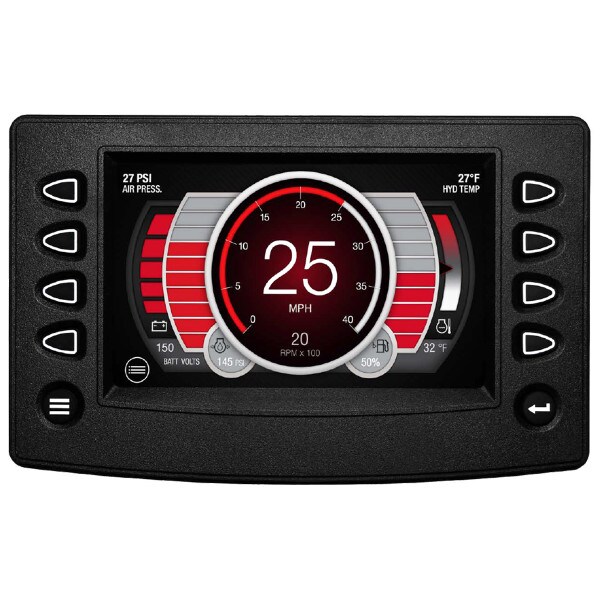

The PowerView® PV780T display is a full featured, configurable display that combines engine, transmission and diagnostic information into an easy to read operator interface. Equipment functionality can be further integrated through the available I/O and controlled via the CANbus.

The PV780 features a full color, 7-inch bonded LCD for brighter, smoother graphics and best in class sunlight readability. The rugged design makes this display a great solution for extreme environments.

The PV780 display is compatible with PowerVision Configuration Studio which allows users to edit CAN parameters, add OEM branding and create custom equipment screens for a unique and sophisticated user interface.

Features:

Technical:

• Display: 7 inch (178mm) color transmissive TFT LCD
• Resolution: WVGA, 800 x 480 pixels, 16-bit color
• Aspect Ratio: 16:9
• Orientation: Landscape or Portrait
• Backlighting: LED, 1000 nit maximum brightness
• Microprocessor: Freescale i.MX357, 32 bit, 532 MHz, ARM11 core
• QNX Real-time Operating System
• Flash Memory: 2 GB total, 1 GB available for data logging
• RAM: 128 Mbytes SRAM
• Operating Voltage: 6-36 VDC, reverse polarity protected
• Video inputs: 3 NTSC/PAL
• Connectors: Two (2) AMPSEAL 23 Pin (AMP 770680-1 and AMP 770680-4)
• Keyboard: 10 tactile pushbuttons with white LED backlight
• USB: (1) USB 2.0 host (OTG, full speed)
• Real time clock with Li-ion rechargeable battery backup

Communications:

• (2) CAN 2.0B with one isolated (NMEA 2000 compliant); J1939 and CANopen protocols; proprietary messaging
• (1) RS-485 serial (MODBus master/slave)
• (1) USB Host (OTG)

Outputs:

• (1) Digital 500mA, switched low-side
• (1) Frequency Out (2 Hz - 3 kHz) 0-V Battery, peak to peak, square wave

Inputs:

• (3) Analog 0-5VDC, 4-20 mA, or resistive
• (5) Discreet Digital 0-5V, Active High
• (1) Frequency Input, configurable to support measurement frequencies from 2 Hz - 10 kHz

Literature:

1. Sales Bulletin
2. Sales Insert
3. Installation Manual
4. Operation Manual
5. Manual De Operaciones (Operation Manual in Spanish translated by the MurCal team)
