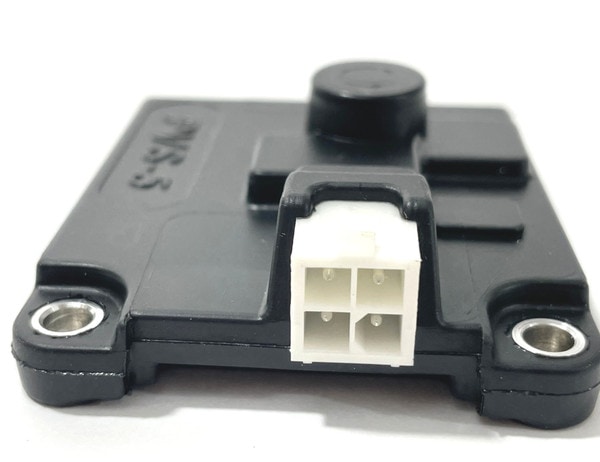

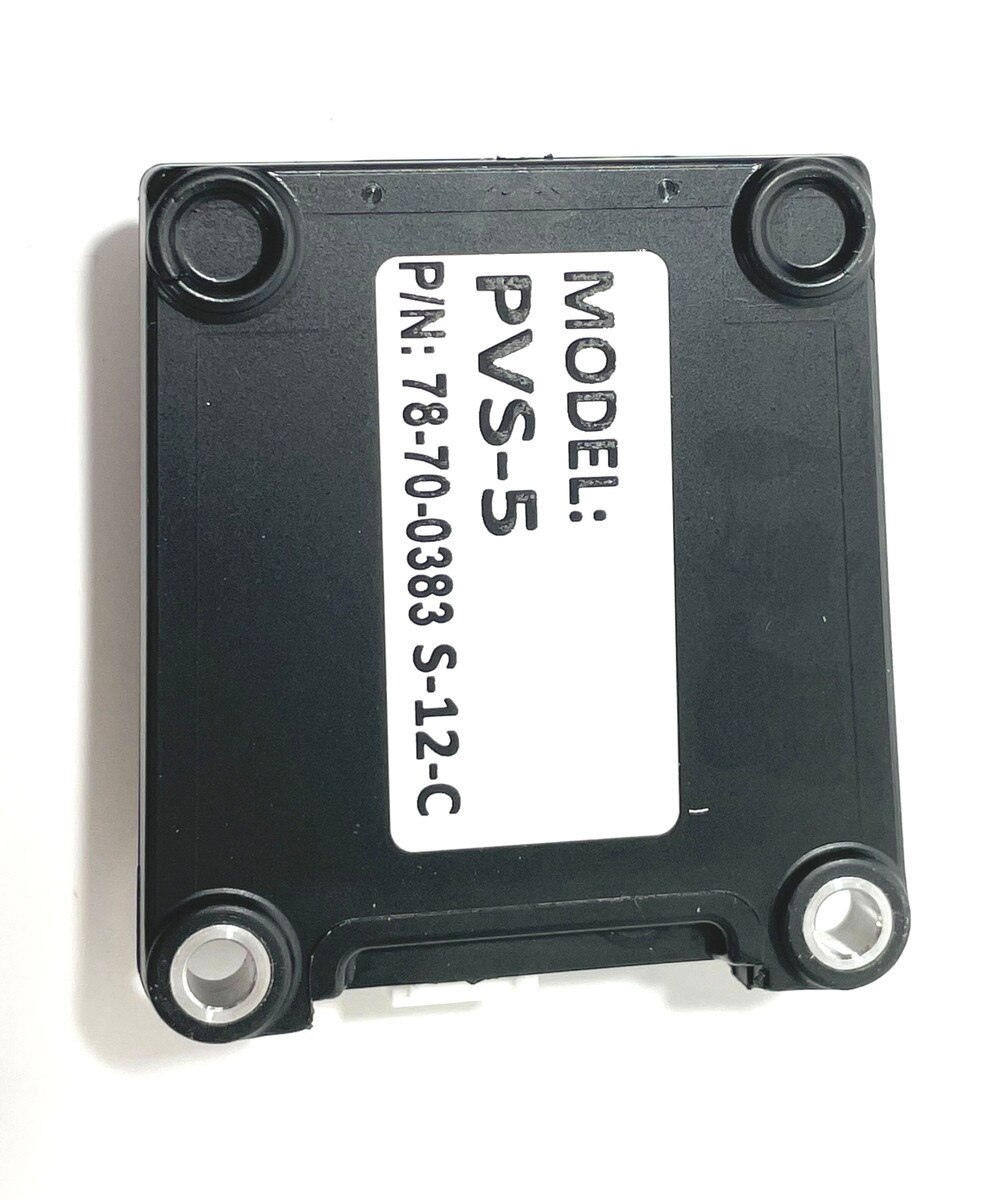

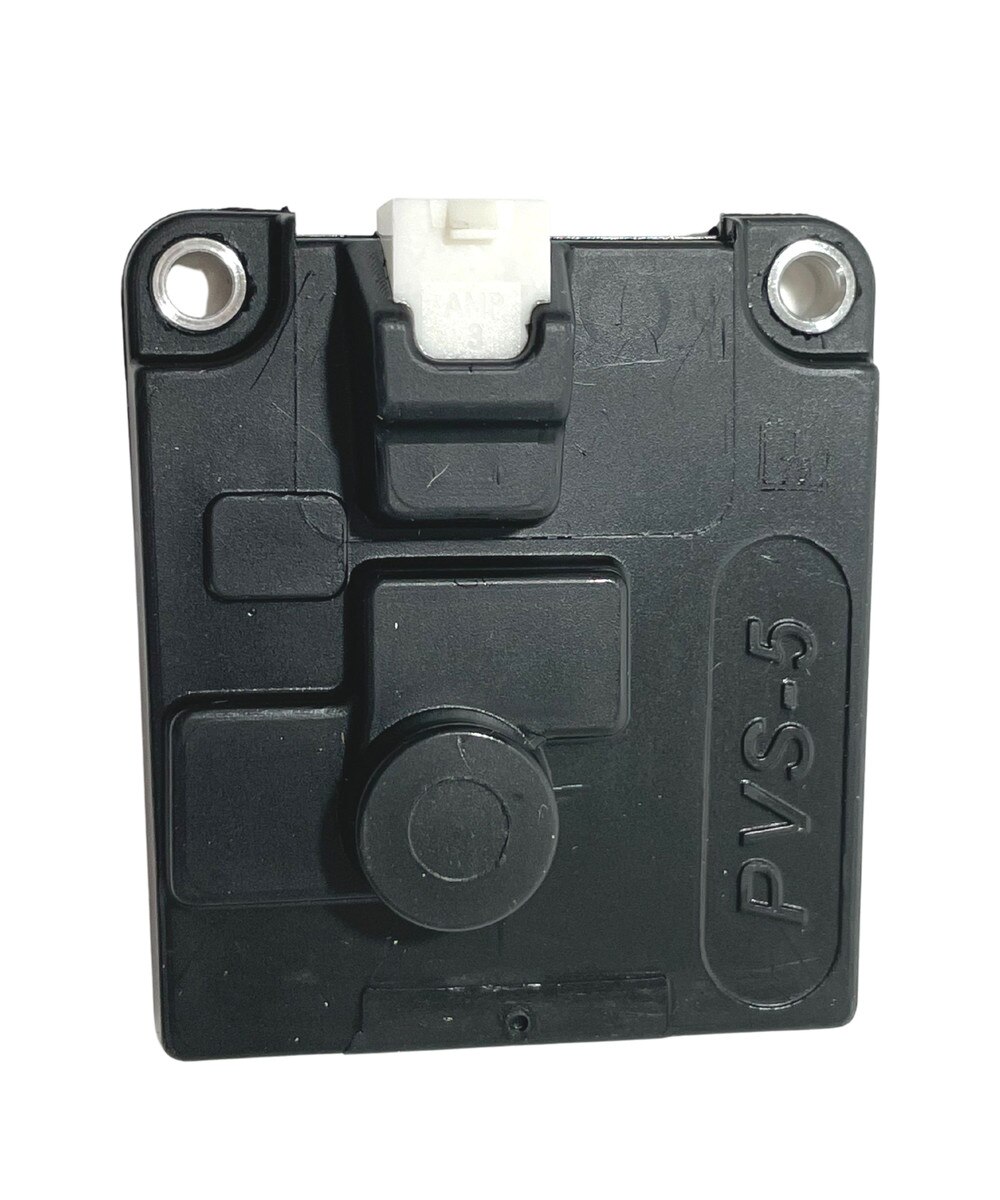

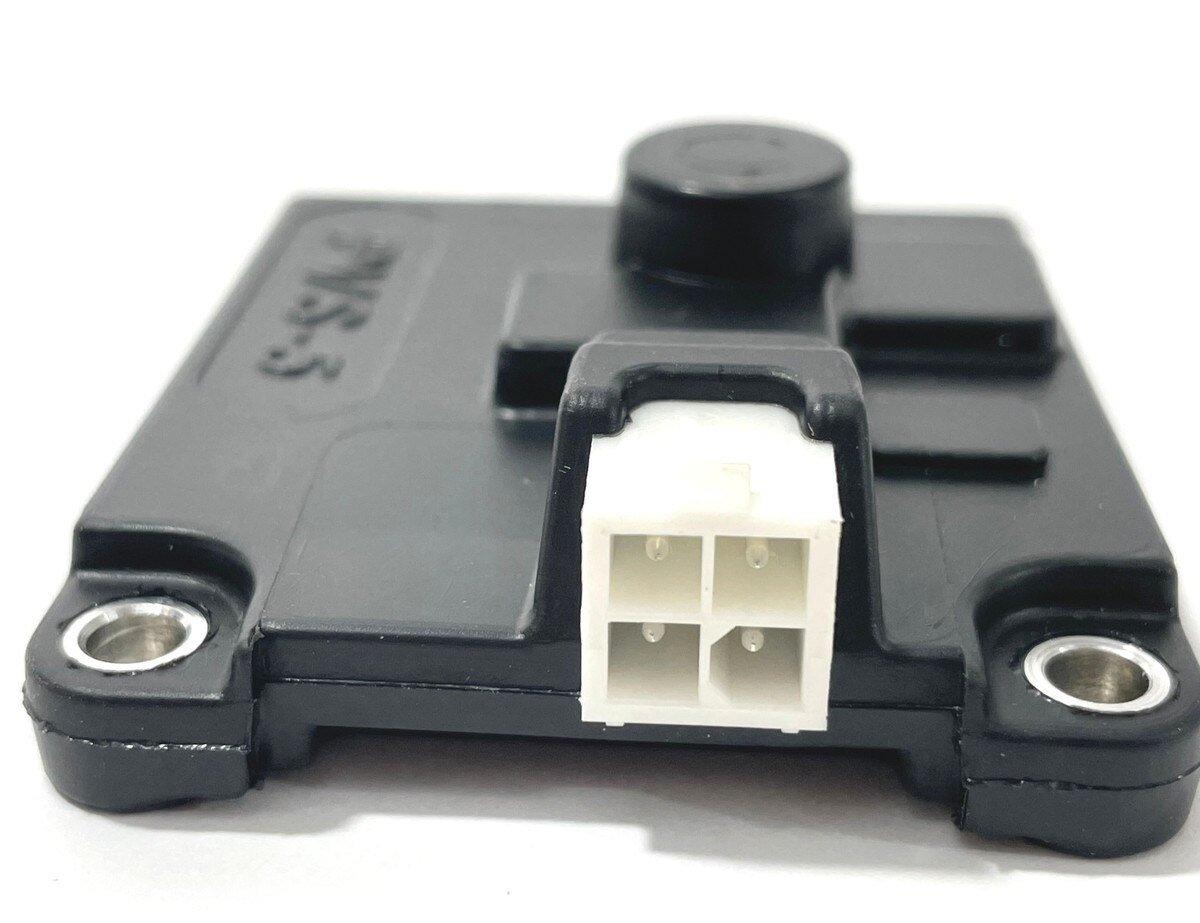

PVS-5, DC/DC Converter (78700383)
PVS-5, DC/DC Converter (78700383)
External power is required to make the PVM gage line compatible with existing MurphyLink products, such as PV1000, Cascade, iGuard and eGuard. The PVS-5 power supply device supplies 5 volts of external power and load dump protection for up to 6 PVM gages. The maximum length of the power and data connection between gages is 0.5 meters (8.5 meters total). The unit may be installed inside a panel or behind a dash
This DC/DC, Power Supply Converter is generally used in newer municipal panels, such as the MurCal Series 600 controller. The input voltage is 6-32 VDC and the output voltage isÿ5.4 VDC @ 450 mA (max)
Literature:
MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
