PXT-400 Pressure Transmitter (05707357)
PXT-400: Pressure Transmitter, 4-20 mA 2-wire output signal; 0.25% accuracy, 0-400 psi (05707357)

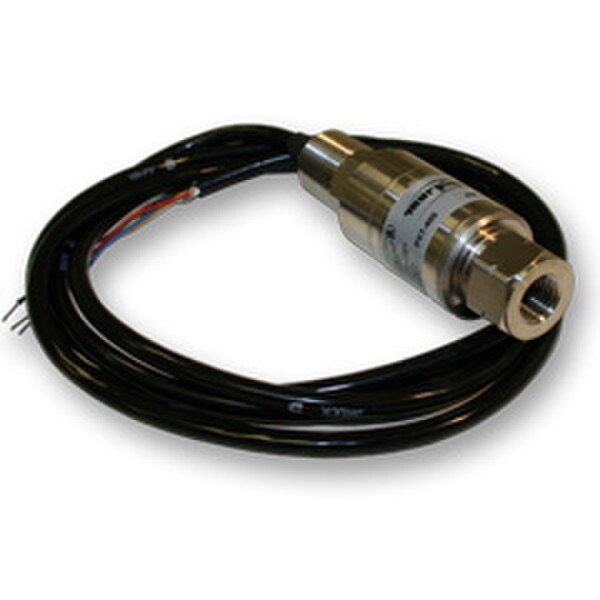

The PXT-400 Pressure Transmitter is a state-of-the-art instrument providing a 4 to 20 mA output. The pressure range for this model is 0-400 psi (2.75 MPa) [27.56 bar].
It features a precision micro-machined silicon diaphragm with a fully welded stainless steel pressure port for greater accuracy, stability and a wide range of compatibility.
Silicon technology is used to provide a miniature micro-machined diaphragm which is electrostatically bonded to a glass substrate and is then stitch-bonded within a glass to metal seal assembly to provide exceptional thermal and stress isolation. This technology assures you of high accuracy and stability over a wide range of operating conditions.
The corrosion resistant enclosure is made of 316 stainless steel and all wetted parts are 316L stainless steel or HASTELLOY C276.
The PXT-400 can be used in applications such as compressors, engines, process control, liquid level and pumps. Accuracy is rated at +/- 0.25% including non-linearity, hysteresis and repeatability. Long term stability better than 0.2% FS over twelve (12) months. Process connection is 1/4 NPT female.
