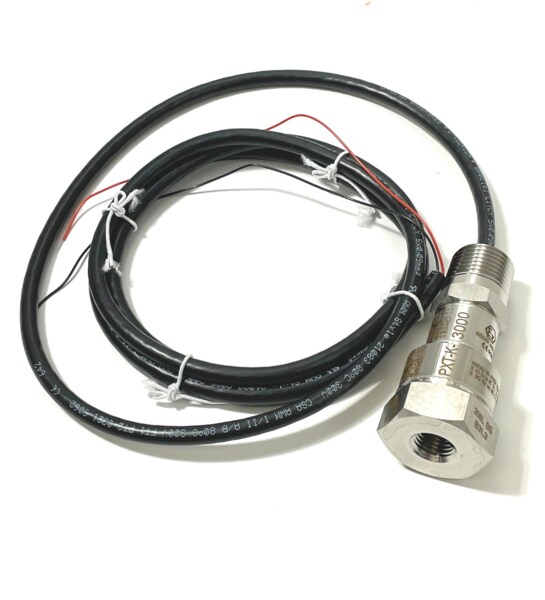

PXT-K-3000 Pressure Transmitter (05707742)
PXT-K-3000: Pressure Transmitter, 4-20 mA 2-wire output signal; 0.25% accuracy, 0-3000 psi. CSA certified. (05707742)
The PXT-K Series pressure transmitters are state-of-the-art instruments providing 4-20 mA output. Each Piezoresistive Pressure Transmitter contains a transducer comprised of a piezoresistive silicon chip mounted on a glass-metal feed-through header welded into a stainless-steel housing and filled with silicone oil.
The very thin laser-welded stainless steel isolation diaphragm completes the front side.
Media pressure is transferred from the stainless-steel isolation-diaphragm via the oil inside the cell to the silicon measuring chip.
This construction, combined with the advanced internal signal conditioning circuitry, results in a rugged instrument with extremely small temperature error and class-leading EMI/RFI resistance.
The enclosure and all wetted parts are made of 316L stainless steel to comply with NACE MR0175.
PXT-K Series Pressure Transmitters can be used in applications such as compressors, engines, process control, liquid level and pumps
Literature:
