PowerKey Pro Keypad (PKP-2400-LI) 8 key (24mm)

(0)No Reviews yet
$271.99
SKU: Blink-PowerKey Pro Keypad (PKP-2400-LI) 8 key (24mm)

This item is IN STOCK

Current Stock: 2


PowerKey Pro Keypad (PKP-2400-LI) 8 key (24mm)





PLEASE NOTE: Default protocol is J1939, conversion to CanOpen is no charge and will be done at customer's request.





The PowerKey PRO PKP-2400-LI Compact Keypad is designed with eight (8) keys that will accommodate interchangeable 24 mm inserts. Please note that this keypad model DOES NOT include the icon inserts. All optional inserts are sold separately. The replacement system for individual inserts makes modifying the keypad layout simple and economical. Choose from over one thousand different stock inserts or order customized inserts (see Blink’s insert lists, linked below in the Literature section). The UV Protected (UVB 400 hours) keypad is highly resistant to deterioration caused by exposure to sunlight. Blink Marine’s IP67/IP69K Waterproof Rating guarantees each keypad to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.




On the software side, you may assign any valid CAN address to the keypad. Communicate on either BUS simultaneously. This keypad no longer has to be pre-programmed to a specific address. This enables customers that work in applications in the field without access to a GUI to use any replacement keypad on-hand. The keypad can be configured to automatically announce its address and accept a new address assignment as appropriate. Additionally, the keypad can send messages to the BUS indicating a button press or a button release event has occurred. This confirmation allows digital systems to have the same input acknowledgements as that of the latching position of a mechanical switch.

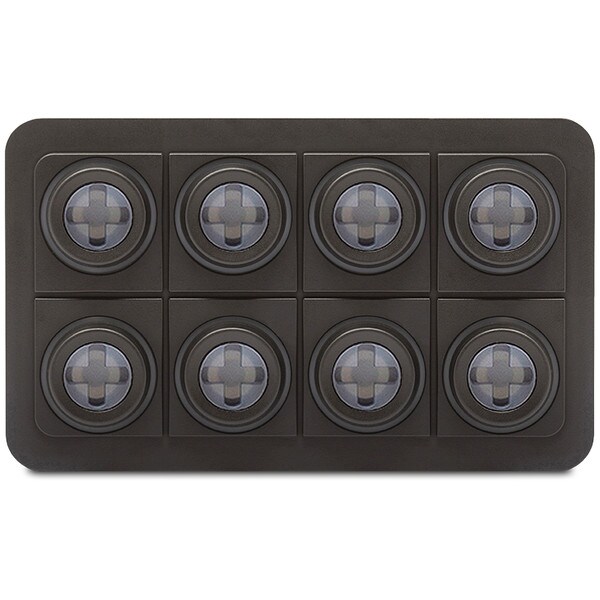

Larger Image: PowerKey PRO PKP-2400-LI Compact Keypad





Software Features:






• CAN Keypad Addresses – Assign any valid CAN address to the keypad. Communicate on either BUS simultaneously.


• J1939 Address Claim Transmission – Keypads no longer have to be pre-programmed to a specific address. This enables customers that work in applications in the field without access to a GUI to use any replacement keypad on-hand. The keypad can be configured to automatically announce its address and accept a new address assignment as appropriate.


• Event Status Transmission – The keypad can send messages to the BUS indicating a button press or a button release event has occurred. This confirmation allows digital systems to have the same input acknowledgements as that of the latching position of a mechanical switch.


• Periodic Status Transmission – The keypad sends a continuous broadcast of messages indicating the press or release status of each button at that instance. The frequency of these messages can be adjusted in a wide range.


• Online Set-up – An online set-up system makes it possible to select and design your own prototype, then order it directly on Blink Marine’s website.


• Periodic Heartbeat – The keypad sends a continuous broadcast of messages indicating it is functioning correctly. The frequency of these messages can be adjusted in a wide range.


• CANopen Communications Protocol – Fully compliant with Device Profile 401d.






Hardware Features:






• IP67/IP69K waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.


• UV Protected – UVB 400 hours: Keypad is highly resistant to deterioration caused by exposure to sunlight.


• Interchangeable inserts – NOTE: This keypad model DOES NOT include the optional icon inserts. The replacement system for individual inserts makes modifying the keypad layout simpler and more economical. Over one thousand different stock inserts can be viewed in Blink’s insert lists, linked below in the Literature section. It’s also possible to order customized inserts.


• A membrane compensation valve which self-compensate the internal pressure within the keypad, alleviating mechanical stresses that can be produced by shifts in external temperatures.


• The keypad’s symmetrical design and spacing between keys makes it easier to install multiple keypads alongside one another.


• The rubber is molded on the backside in such a way that it acts as a gasket, blocking liquids and preventing them from leaking in through the attachment holes located on the support upon which the keypad is installed.






Standard Features:






• Reconfigurable keys


• LED state & status configurable


• Vertical or horizontal mount


• Flush or front mount


• Multicolor indicator rings


• ON/OFF, momentary, toggle & scroll


• Over one thousand stock, laser-etched inserts to choose from


• Programmer’s manual available to help support plug-and-play reconfigurability






Software Features:






• Change CAN addresses independently


• Periodic status transmission


• Heartbeat


• Event status transmission


• LED acknowledgement


• Address claim transmission


• CANopen and J1939






Literature:






  1. PowerKey PRO PKP-2400-LI Datasheet


  2. PowerKey PRO PKP-2400-LI CANOpen User Manual


  3. PowerKey PRO PKP-2400-LI J1939 User Manual


  4. 181024: PKP-2400-LI (3D).IGS24: PKP-2400-LI (3D).rar






You may select from over one thousand unique pre-existing laser etched icon inserts. It is also possible to order customized inserts. Take a moment to view each of the 3 Industry Insert Lists below to find alternate etched icon inserts that may be perfect for your keypad’s application.






  1. Industrial/Automotive Insert List


  2. Marine Insert List


  3. Motorsport Insert List
